A 12-amp corded 6-1/2-inch TrackSaw with a zero-clearance track system, dual anti-splinter edges, and table-saw-precision plunge cuts for splinter-free panels and sheet goods.
Pair withDEWALT 6" Crimp Wire Wheel Brush DW4904 for Bench Grinders$10.00
Categories : tools
SKU : WOR-TOO-320
Share This:

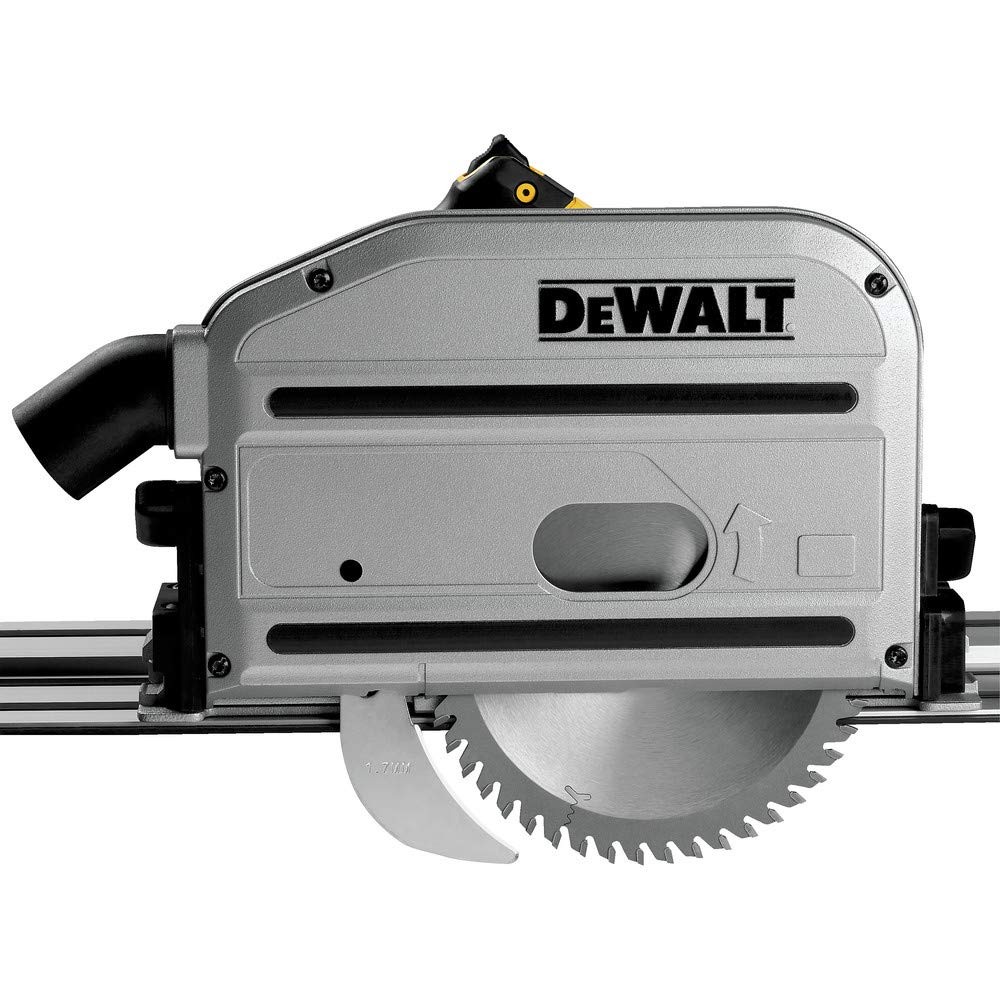

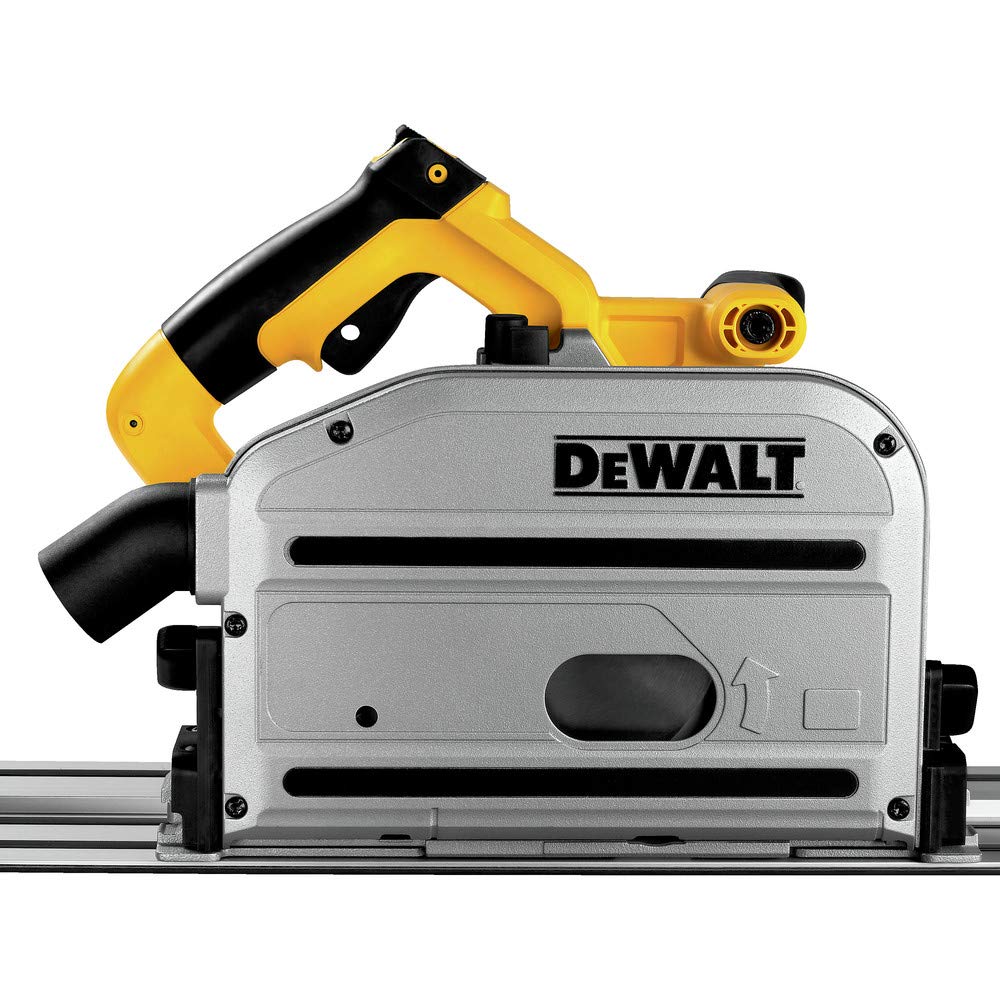

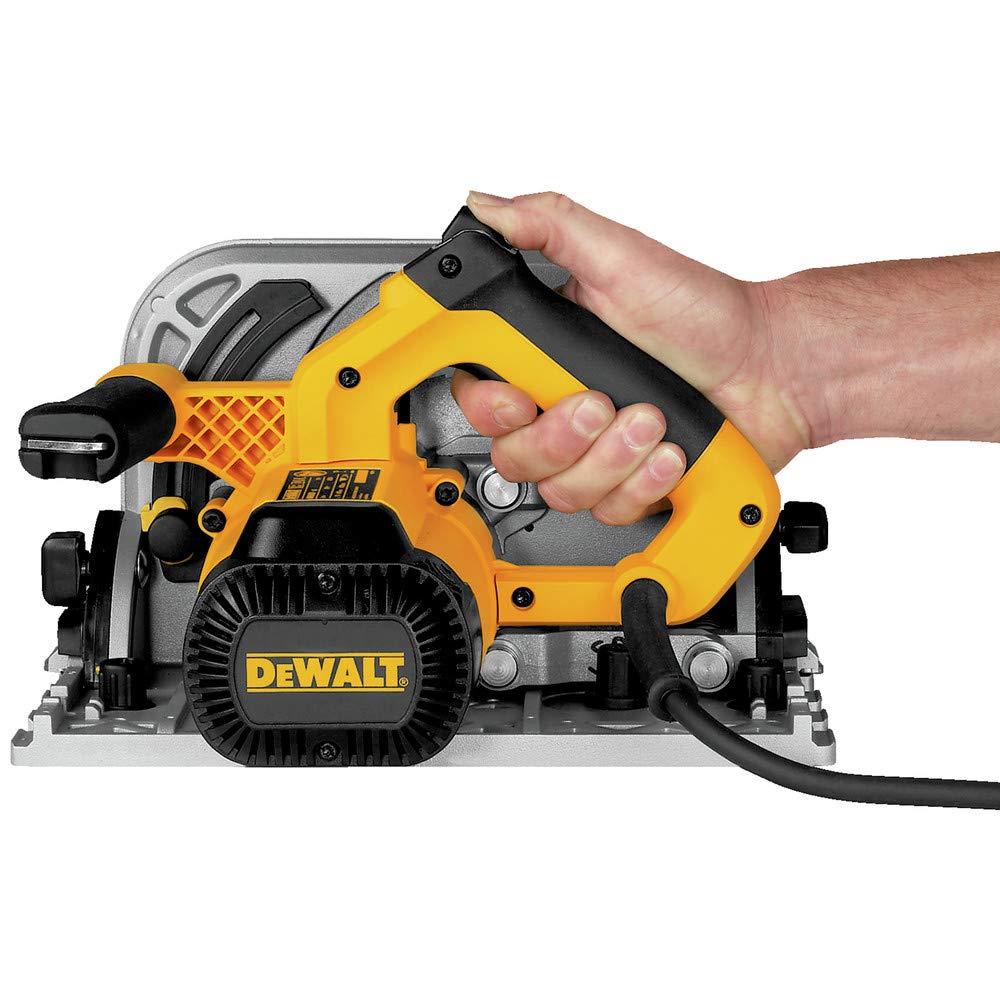

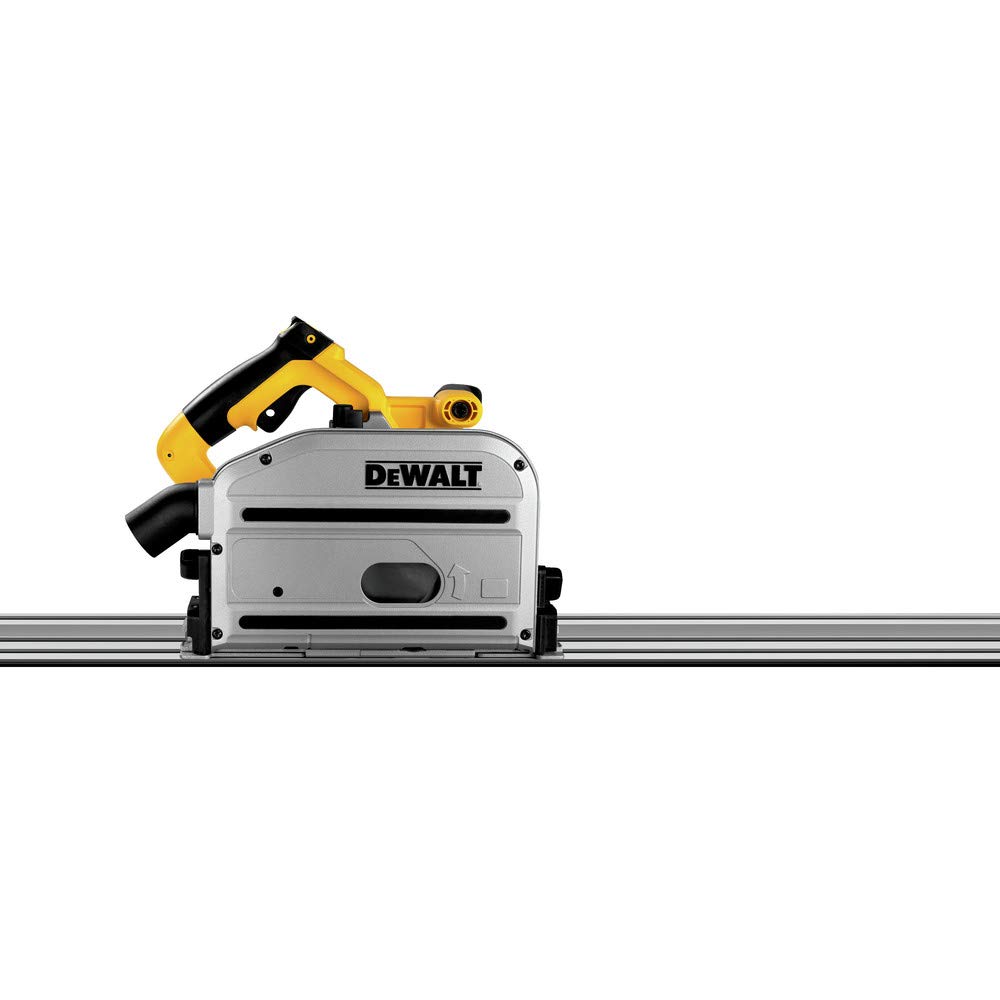

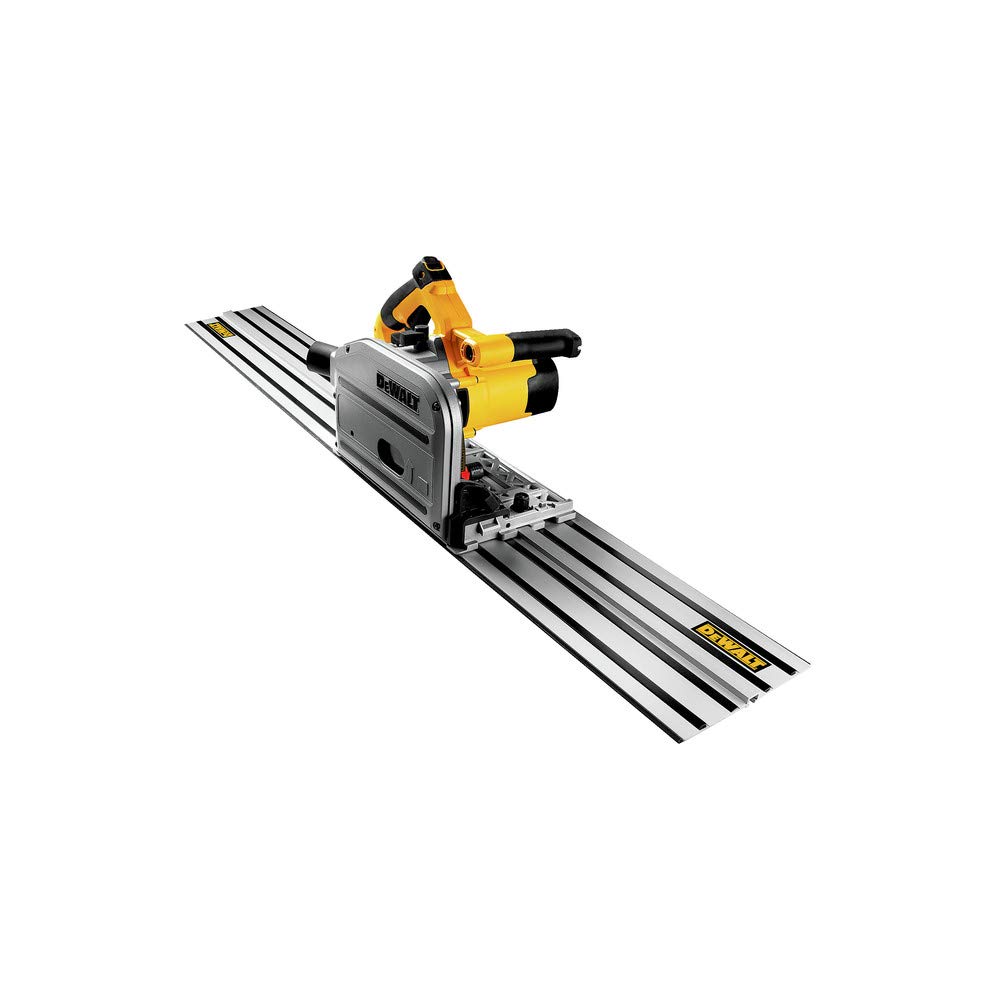

The DEWALT 6-1/2-Inch TrackSaw Kit (DWS520K) brings table-saw accuracy to the jobsite with a 12A, 1,300W motor and a zero-clearance track system. Designed for finish carpenters, cabinetmakers, and serious woodworkers, this saw produces perfectly straight, splinter-free cuts in plywood, hardwood, and other panels—without wrestling a full-size table saw.
The saw's transmission and precision-ground, laser-cut blade minimize deflection, giving you a finished edge right off the saw. Cut depths reach 2-1/8 inches at 90 degrees and 1-5/8 inches at 45 degrees, so you can power through most stock. The low-profile blade guard lets you work in tight spaces, while the continuous anti-kickback system and riving knife keep cuts safe and controlled.

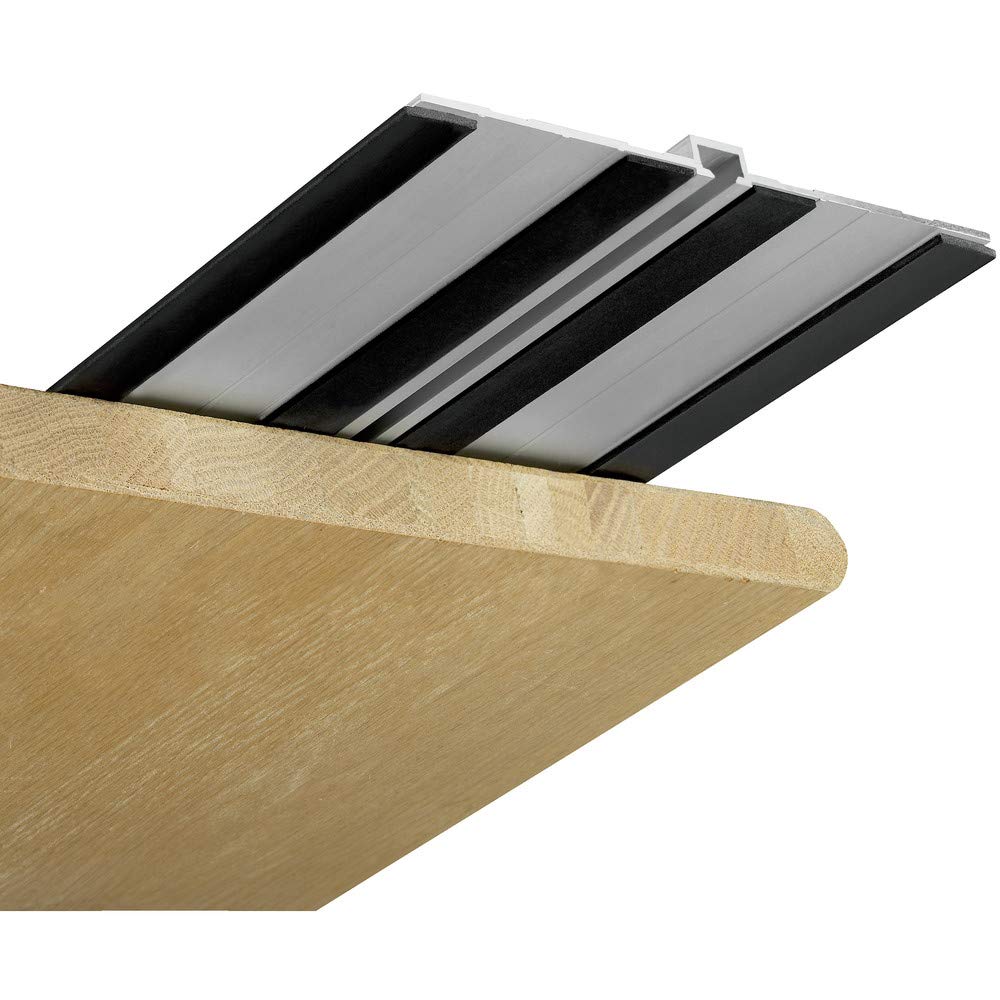

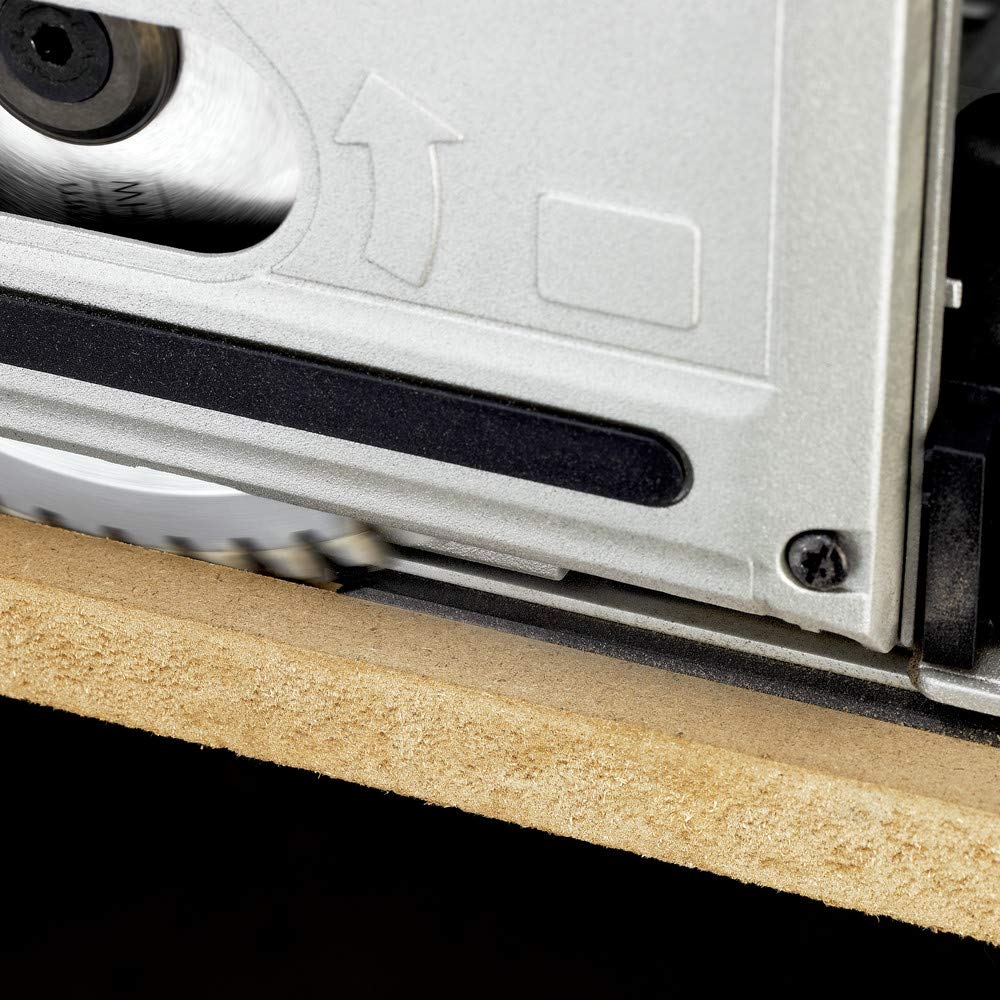

The dual-edged track lets you cut from either side with the same splinter-free results. Each edge is equipped with anti-splinter strips that score the material before the blade, reducing tear-out on both faces. This is especially valuable when cutting veneered plywood or melamine.
When you need a longer cut line, the DWS520K uses the DEWALT track connector (sold separately) to join guide rails seamlessly. This lets you extend your cutting path for full sheets of plywood or long trim without losing alignment. Simply connect the rails, tighten the connector, and keep cutting—the track stays flat and true.
Attach a vacuum to the dust port and the saw captures most chips before they hit the floor. That keeps your work area cleaner and improves visibility along the cut line.
12A, 1,300W motor powers through hardwoods up to 2-1/8 inches thick.
Zero-clearance track system produces splinter-free straight cuts.
Dual anti-splinter edges keep both sides clean—flip the track for reversed cuts.
Continuous anti-kickback and riving knife add safety and control.
Low-profile blade guard works in confined spaces and tight angles.
Model: DWS520K
Motor: 12A / 1,300W
Weight: 11 lbs
Dust Port: 1-1/4 in compatible
Power Source: Corded
Product Type: TrackSaw
Anti-Kickback: Continuous + riving knife
Blade Diameter: 6-1/2 in
Cut Depth at 45°: 1-5/8 in (41 mm)
Cut Depth at 90°: 2-1/8 in (54 mm)
Track Compatibility: DEWALT dual-edged guide rails
Seller: Workbench World
MPN: DWS520K
When cutting full 8-foot sheets, you'll often need more than one track. The DWS520K's joining system lets you connect rails with the optional DEWALT track connector. Align the rails on a flat surface, slide the connector into the track channel, and tighten—your extended track stays perfectly flat for accurate, splinter-free cuts.
Dual anti-splinter strips on both edges of the track score the surface before the blade bites, so you get clean edges on the top and bottom of your workpiece. This is crucial when cutting pre-finished panels or veneered plywood.
The DWS520K's hinge system lets you plunge into the material with one hand, and the depth scale accounts for track thickness, so your settings are true. Bevel cuts up to 45 degrees are just as accurate, making this saw a versatile tool for finish work.
Yes, the DWS520K works with DEWALT track connectors (sold separately) to join guide rails for longer cuts. Make sure the connectors are aligned and tightened for continuous accuracy.
Yes, the DWS520K kit includes the TrackSaw and its guide rails. See the package contents for your specific rail configuration.
The saw cuts up to 1-5/8 inches (41 mm) deep at a 45-degree bevel, and 2-1/8 inches (54 mm) at 90 degrees.
Absolutely. The saw has a dust port that connects to a standard 1-1/4-inch vacuum hose, keeping your work area cleaner.
Yes, the DWS520K is designed for plunge cuts. The low-profile guard and riving knife help keep the blade controlled during the cut.
Cuts like a dream.
The plunge action is smooth and the track keeps cuts straight. Very accurate.
I bought this for cutting plywood sheets without a table saw. It delivers clean, precise cuts with no tear-out. The anti-splinter strips work well. The dust port connects to a vacuum, but it still leaves some sawdust. The track is sturdy and easy to align. I'm very pleased, though the price is high.
I make cabinets and this saw is a game changer. Every cut is square and clean. The track is the best part.
Finally, no more chipped edges on plywood. The track is stable and the saw is powerful. The plunge is smooth. It's worth the money.
The saw is fantastic. The included track is only 6 feet, so I had to buy an extra one for longer cuts. But the quality is great.
I've used Festool track saws, and this is close at half the price. The cuts are just as clean. The dust collection is better than I expected. Very happy.
I just started doing DIY and this saw makes me look like a pro. I cut a full sheet of plywood into shelves without any tear-out. It's so easy to use. I tell everyone about it.
It's a great saw, but I wish it were cordless. The cord gets in the way sometimes. But if you need precision, it's good.
I've been woodworking for 40 years and this is the best cutting tool I've bought. The accuracy is unmatched. The track system is brilliant. I recommend it to all my friends.
