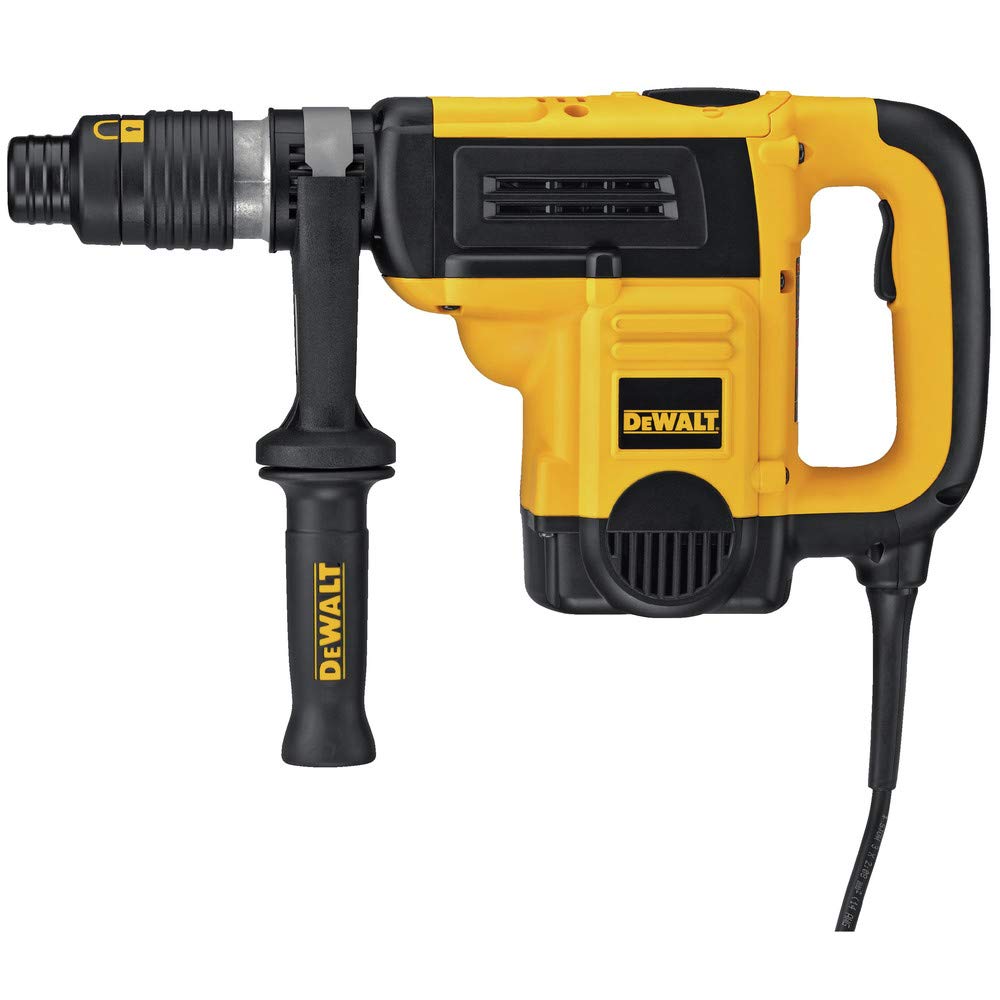

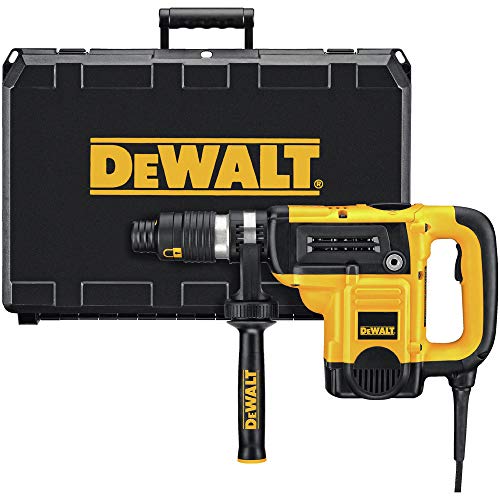

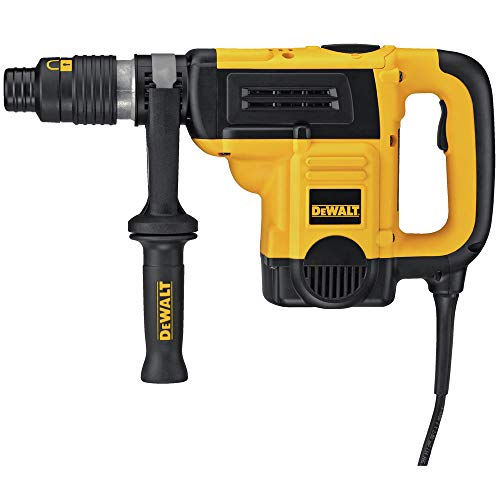

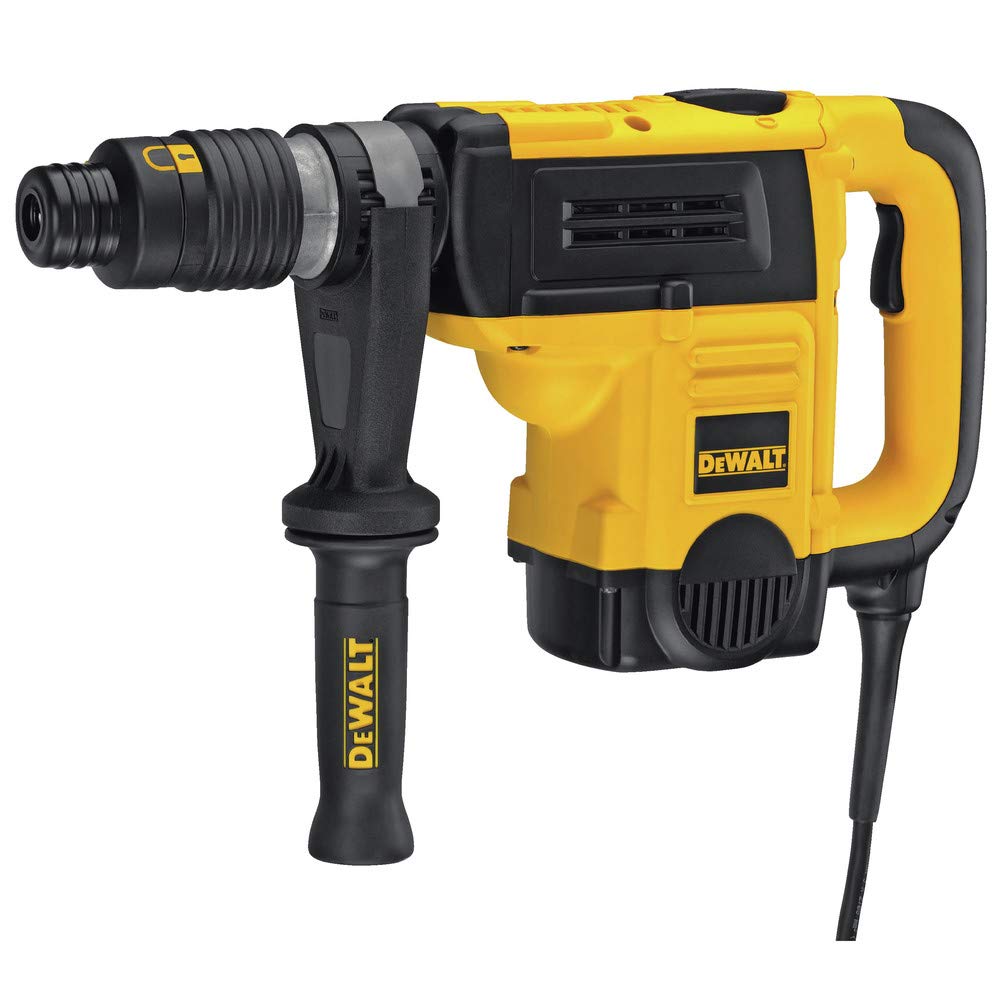

DEWALT D25553K 1-9/16" Spline Combination Rotary Hammer Drill (12-Amp)

Name: DEWALT D25553K 1-9/16" Spline Combination Rotary Hammer Drill (12-Amp)
Brand: DeWalt
SKU: WOR-TOO-953
Price: 67.15 USD
Availability: InStock
Rating: 4.5 (2 reviews)

4.5 (2)

$149.00 $67.15

This DEWALT D25553K 12-amp spline rotary hammer delivers 8 joules of impact energy for demanding rebar drilling and chipping, with a lightweight 14-lb design for overhead work.

In Stock

- 1 +

Get it in 3–5 business days.

10 people are viewing this item. 24 sold today. Only 7 left in stock.

Buy more, save more

dewalt-d25604k-sds-max-combination-rotary-hammer-1-3-4-inch image 1

Pair withDEWALT D25604K SDS Max Combination Rotary Hammer, 1-3/4 Inch$67.15

Categories : tools

SKU : WOR-TOO-953

Description

The DEWALT D25553K 1-9/16-Inch Spline Combination Rotary Hammer Drill is engineered for the toughest concrete jobs. With a 12-amp motor and 8 joules of impact energy, it drills through rebar, dowels, and large mechanical anchors with speed, and its chipping function tackles upper-wall and ceiling work. The spline drive system provides high torque transfer for serious drilling, while the lightweight 14-pound design reduces fatigue.

DEWALT D25553K Rotary Hammer: Spline Drive and 8 Joules of Impact

The German-engineered mechanism in the D25553K is built for durability and hard-hitting performance. It delivers 490 RPM and 3,300 blows per minute, giving you fast drilling in concrete and masonry. The combination mode lets you switch from drilling to chipping without extra tools, making it ideal for MEP trades, concrete contractors, and safety-conscious remodelers.

Comfort and Control in Tough Positions

The rear handle mount improves balance in down-drilling, while the rubberized grip reduces vibration. A factory-set clutch helps manage sudden torque reactions if a bit jams, protecting your hands and arms during operation. All these features make through-hole drilling for mechanical and electrical runs more controllable.

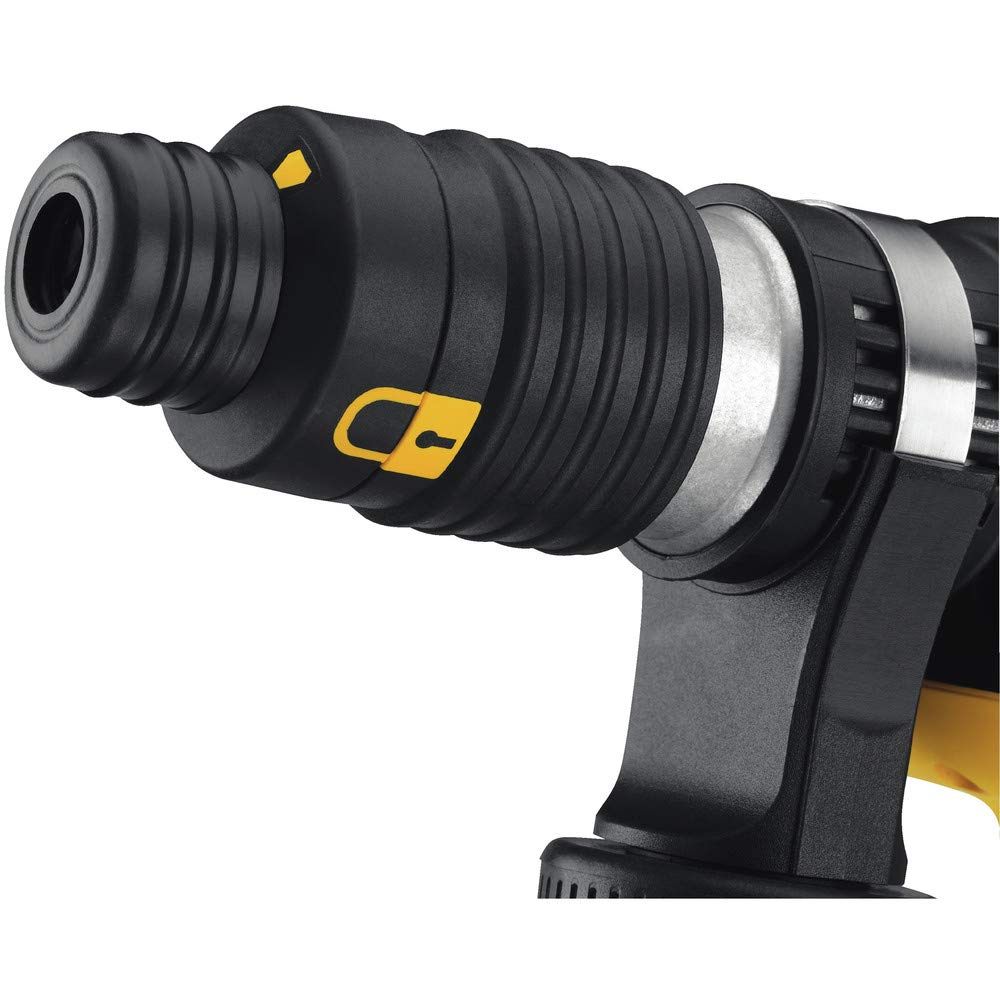

Clearing a Stuck Spline Bit or Chisel

One common question we get is how to release a stuck spline bit. The D25553K's spline drive locks bits into a hardened drive. If a bit gets stuck, first disconnect power, then turn the locking collar to the unlock position and lightly tap the bit with a rubber mallet. Do not use metal hammers or pry bars—clean the spline and apply a thin layer of grease to keep the mechanism working smoothly.

Features

8 joules of impact energy drive through rebar and concrete fast.
12-amp motor with overload protection for reliable performance.
Combination hammer drills, hammer-drills, and chips for versatility.
Lightweight 14-lb design reduces fatigue in overhead work.
Factory-set clutch reduces sudden torque reactions if bits jam.
Model: D25553K
Clutch: Factory-set
Weight: 14 lb
Amperage: 12 A
Capacity: 1-9/16 in
Functions: Drilling, hammer drilling, chipping
Drive Type: Spline
Impact Rate: 3,300 BPM
Product Type: Spline Combination Rotary Hammer
Impact Energy: 8 J
No-Load Speed: 490 RPM
Seller: Workbench World
MPN: D25553K

Product Details

Spline Drive vs. SDS-Max: What’s the Difference?

Spline drive is an older but still robust system used on heavy-duty rotary hammers. It allows high torque transfer and is often found on industrial-class tools. SDS-Max is easier for bit changes, but spline is known for durability and smooth operation. Both are effective; sticking with spline means using bits designed for that system.

Preventing Stuck Spline Bits

Keep the spline shank clean. Before insertion, apply a light film of grease to the splines. After heavy use, clean out dust with compressed air. If a bit sticks, don't hammer the tool—disconnect and turn the collar to release, then tap gently.

Drilling Through Rebar

When you hit rebar, let the hammer do the work. Use a sharp carbide bit for rebar. The 8 joules of impact energy and 490 RPM are enough to push through steel without stalling.

Frequently Asked Questions

How do I release a stuck spline bit?

Disconnect power, turn the locking collar to unlock, and tap the bit gently with a rubber mallet. Clean and grease the spline if stuck.

Can I use SDS-Max bits in the D25553K?

No, this tool uses spline drive bits. Using SDS-Max may damage the mechanism.

What is the impact energy?

8 joules, providing strong drilling and chipping performance.

Is this tool good for overhead chipping?

Yes, its lightweight 14-lb design and chipping function make it suitable for ceiling and upper wall work.

What does the factory-set clutch do?

It reduces sudden torque reactions if the bit jams, lowering the risk of injury.
