The RIDGID 22168 VF-99 folding pipe stand holds up to 2,500 lb, adjusts from 28 to 51 in., and folds down for easy transport and storage.
Categories : Tools & Hardware
SKU : WOR-TOO-911

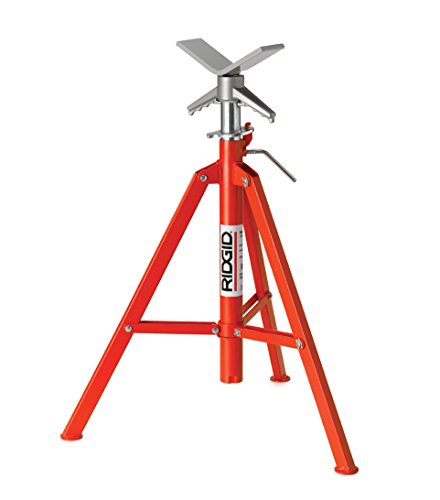

The RIDGID 22168 Model VF-99 V-Head Folding Pipe Stand is a high-capacity pipe support for plumbers and pipefitters. Its folding legs reduce storage space by 70%, while the quick-locking ring adjusts height from 28 to 51 in. With a 12 in. pipe capacity and 2,500 lb maximum rating, it's tough enough for commercial work and simple enough for a small job.
Over time, rubber feet on a pipe stand can tear or crack, especially on rough concrete. Replacement feet and other service parts are available from RIDGID. Check the feet before every job-start; a worn foot can make the stand sit unevenly and put pipe joints out of alignment.
Aside from feet, the locking ring collar and the V-head retaining parts are the main items to inspect. Keeping a small kit of spares saves a trip when you need the stand on a job.
The locking ring lets you set the working height quickly, and the V-head is designed to stay on the tube for fast adjustments without fighting with the stand.
Folds to take 70% less storage space and moves easily between job sites.
Height adjusts from 28 to 51 in. via a quick locking ring.
Supports up to 2,500 lb (1,134 kg) for heavy pipe runs.
12 in. pipe capacity handles a wide range of pipes and fittings.

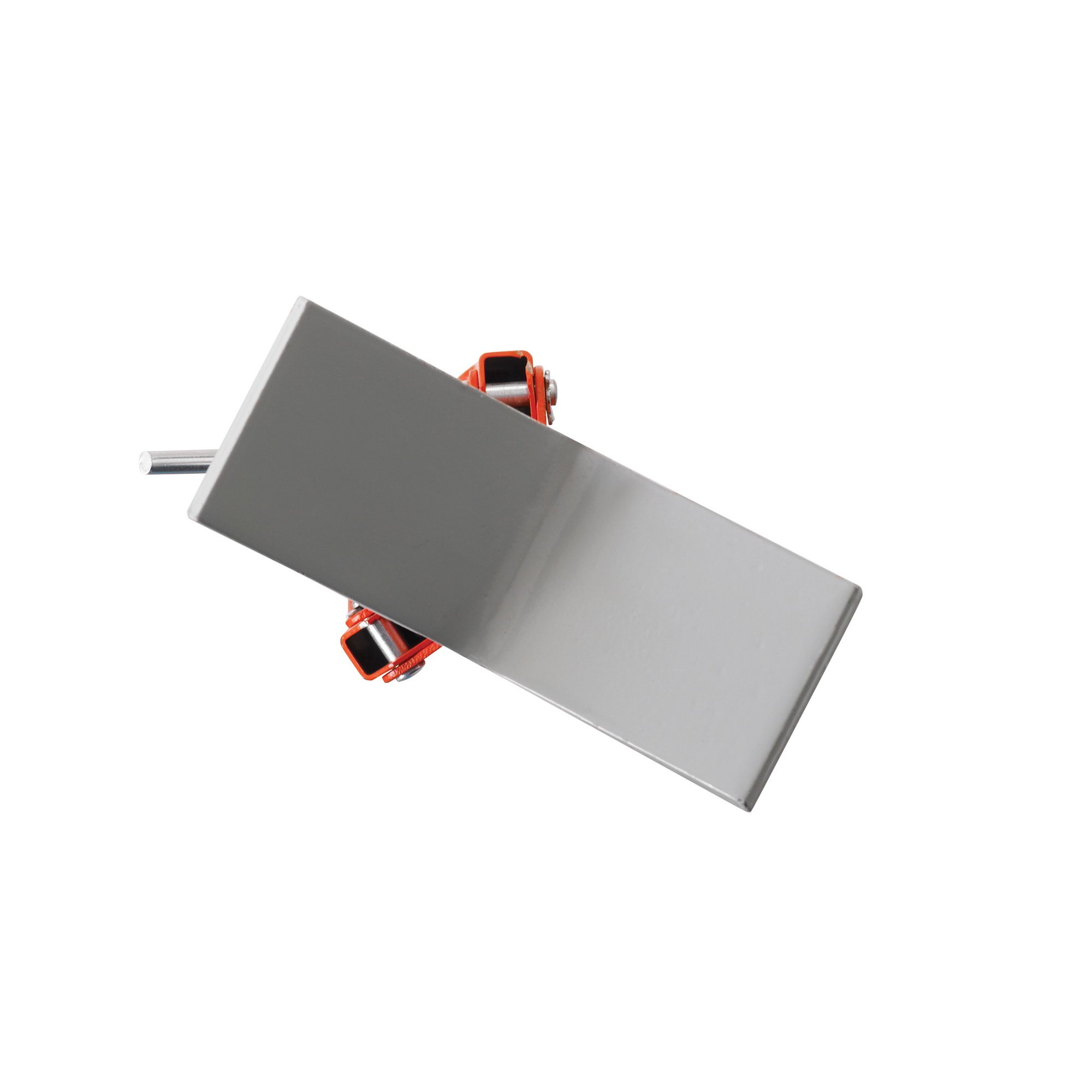

V-head stays on the tube for quick height and angle tweaks.
Color: Red
Model: VF-99 (22168)
Weight: 37 lb (16.8 kg)
Leg Type: Folding
Material: Steel frame with rubber feet
Head Type: V-head
Dimensions: Folded: 15 x 6 x 6 in (38.1 x 15.2 x 15.2 cm)
Product Type: Folding Pipe Stand
Pipe Capacity: 12 in. (300 mm)
Height Adjustment: 28–51 in. (71–132 cm)
Max Weight Capacity: 2,500 lb (1,134 kg)
Seller: Workbench World
MPN: VF-99 (22168)
Pipe stands are easy to underestimate until you're digging out a block and tackle to hold a heavy line. The VF-99 handles two and a half tons of static weight, but folds down small enough to ride in the back of a truck.
Feet are the ground contact point. If a foot splits, the stand can rock under load. Wipe them clean, check for deep cracks, and keep spares in your truck.
The locking ring is the key adjustment. Loosen it, slide the inner tube to the height you need, and tighten it. The V-head stays on the stand, so you can nudge pipe into alignment without a second person.
The stand is rated for 2,500 lb (1,134 kg) maximum capacity.
Yes, replacement feet are available from RIDGID. Remove the worn feet and install new ones that match the leg size.
It adjusts from 28 in. to 51 in. with the locking ring.
The V-head supports pipe up to 12 in. in diameter.
Yes, the folding leg design reduces storage space by about 70%.
This pipe stand is rock solid. It holds heavy pipe without wobbling. The folding legs are convenient.
My husband is a plumber and he loves this stand. It's adjustable and easy to carry.
It's a tank. A bit heavy to lug around but it performs well.
We use this on every job. It holds pipes securely and the height adjustment is smooth. The fold-down design makes it easy to store in the van. It's built like a fortress.
RIDGID never disappoints. This stand is durable and the V-head grips pipe perfectly. I've had mine for years and it still works like new.
Bought for my son's shop. He says it's very sturdy.
I put 20 feet of cast iron on this and it didn't flinch. The locks are tight. Very safe.
Works great.
It's a good stand. The only issue is the legs could be longer for extra stability. But it's fine.
This is a high quality stand. I use it in my shop for cutting pipe. It doesn't tip over. The height is perfect. Very happy.
