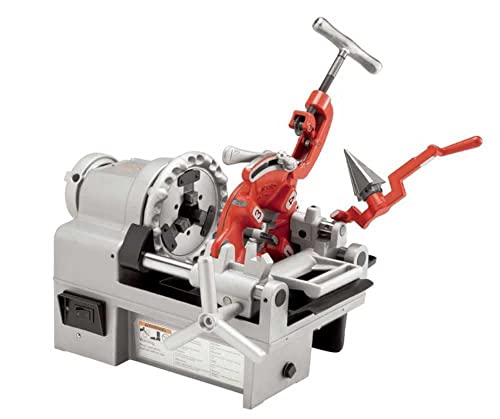

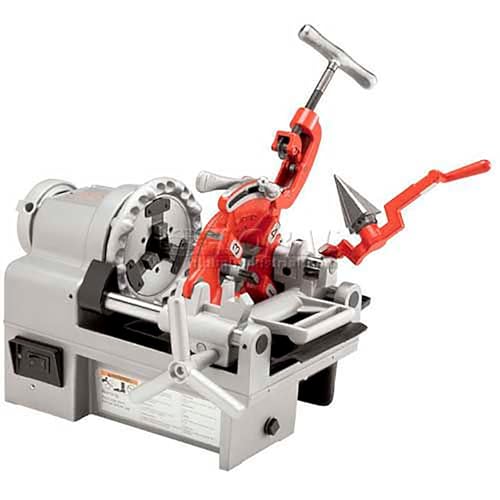

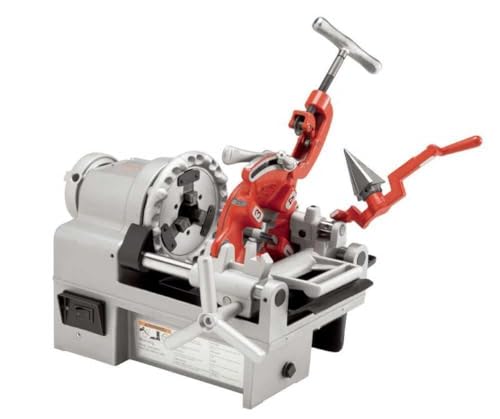

The RIDGID Model 1215 Threading Machine (catalog number 61142) is a complete pipe threading kit designed for plumbers, sprinkler fitters, and mechanical contractors who need to produce clean NPT threads on 1/2 to 1 1/2-inch pipe. It bundles the threading tooling and workhead in one package, so you can cut, ream, and thread without chasing down missing dies.
RIDGID Model 1215 Threading Machine: Complete Kit, Built to Work
The one-piece aluminum housing keeps the motor and drive components aligned while cutting weight for portability. The through-head oiling system with adjustable flow control delivers oil exactly where the die meets the pipe, reducing heat and producing cleaner threads. An integral foot switch hanger keeps the foot switch secure and within reach between runs.
1/2–1 1/2 in NPT Capacity and Complete Tooling
The kit includes the die head, dies, reamer, and cutter for 1/2 through 1 1/2-inch NPT pipe. That means you get the full range of common trade sizes in one machine. Changeovers are fast, and the hammer chuck grips pipe firmly while the self-centering workhead keeps threads true.
At 80 pounds, the Model 1215 is easy to move around the shop or lift onto a truck. The one-piece aluminum base has integrated handles, and the compact footprint fits in tight service areas. It is a straight upgrade for anyone who threads pipe regularly but doesn't have room for a larger stationary machine.
Field Notes and Setup
Set the machine on a stable bench or stand, connect the oil pan, and confirm the foot switch is within easy reach. Adjust oil flow to the thread size and material; smaller threads need less oil than large carbon steel runs. If you're replacing a worn Model 1215, this kit provides all the wear parts fresh out of the box.
