DEWALT DCLE34030G 3x360 green laser level kit delivers 1/8" accuracy at 30 ft, 10-hour runtime on a 20V MAX battery, and a 330-ft range with a compatible detector.
Pair withDEWALT 20V Cordless SDS Rotary Hammer with LI-ION$67.15
Categories : tools
SKU : WOR-TOO-433
Share This:

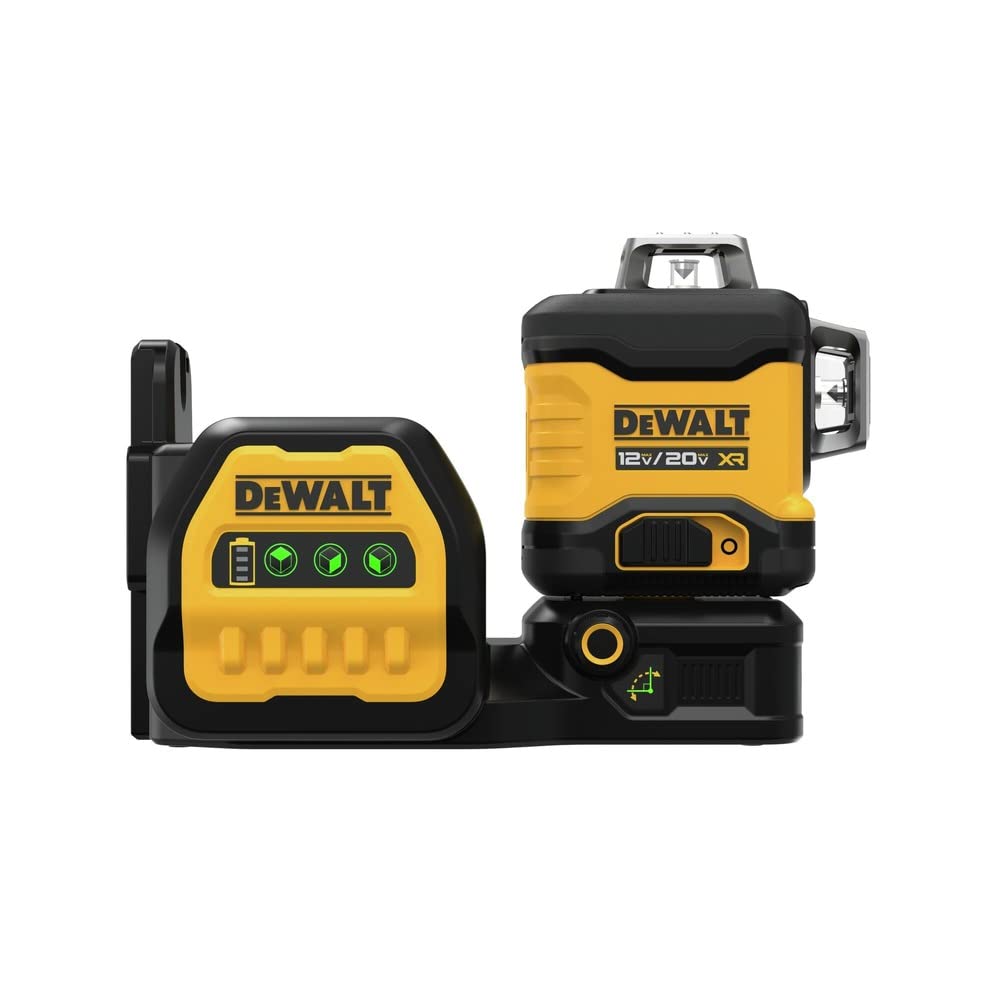

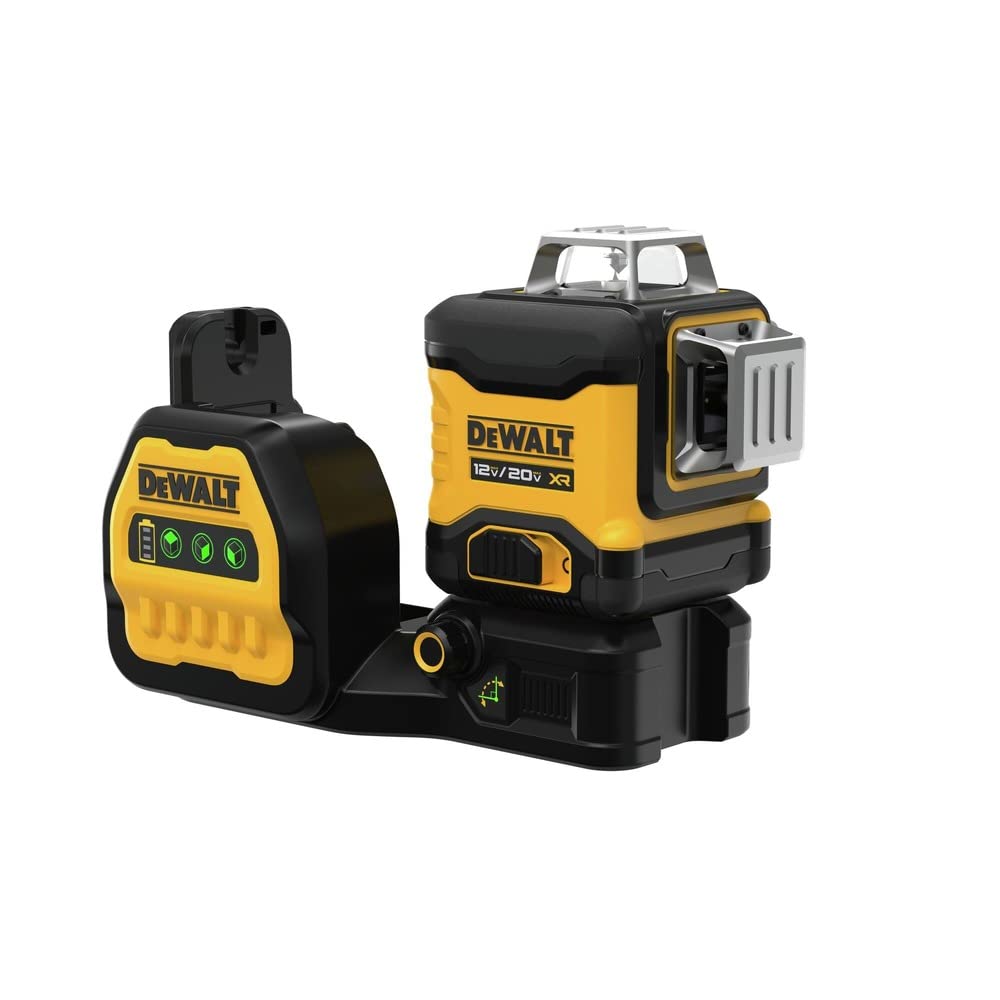

The DEWALT DCLE34030G 3x360 Green Laser Level Kit brings professional-grade layout precision to the 20V MAX battery platform. With green beam technology, a 3x360 plane, and accuracy of 1/8 inch at 30 feet, this kit is built for everything from drywall layout to plumbing, electrical, and general construction. The kit includes the laser, 20V MAX battery, charger, and a rugged overmolded case.

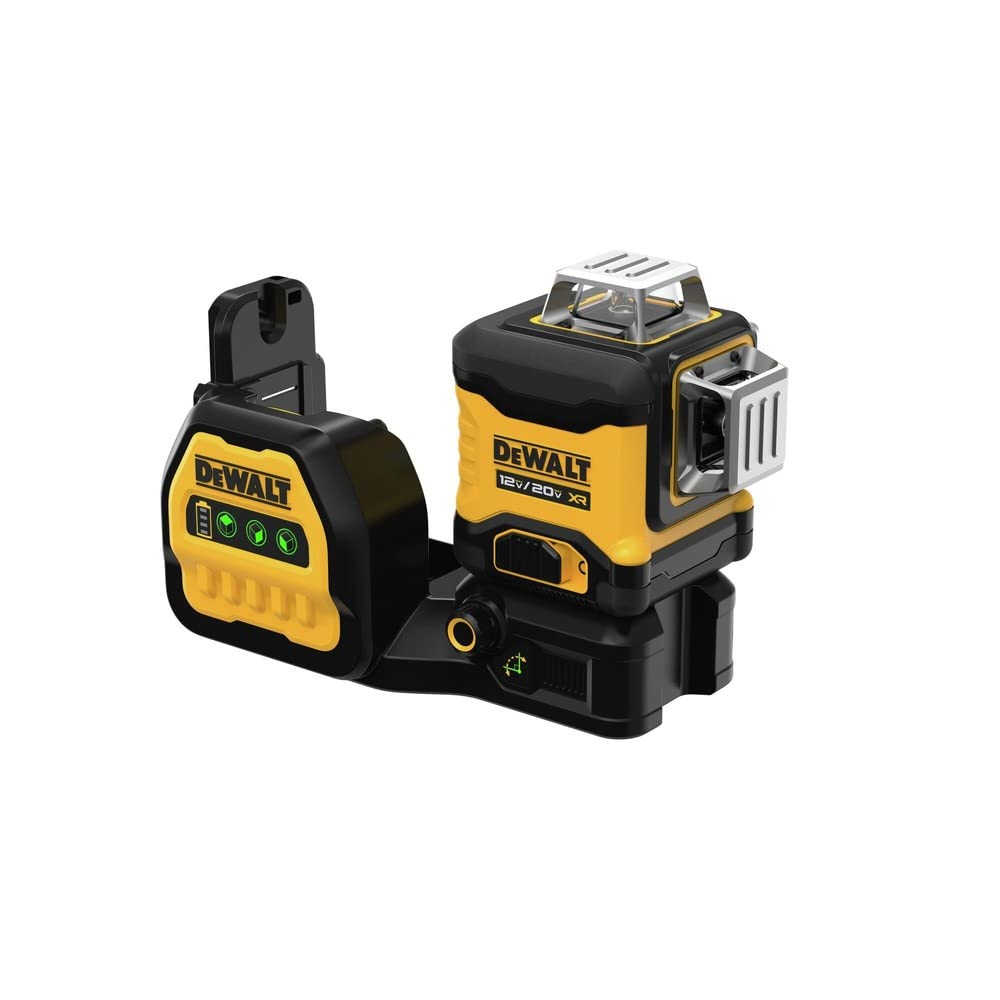

The fine-adjust knob makes precise positioning simple, while the integrated magnetic pivoting base with 1/4";-20 and 5/8";-11 threads mounts to tripods and metal surfaces. Powered by the 20V MAX battery system, you get up to 10 hours of runtime with a 2.0Ah battery—longer with higher-capacity packs. The IP54 rating keeps dust and splashes out, and the overmolded case protects the laser when it’s not in use.
When working outdoors or over long distances, add a DEWALT laser detector (sold separately) to extend the working range to 330 feet. The DCLE34030G’s green beam is visible enough for interior work, but a detector is essential in bright conditions or when the beam is hard to see. Look for a detector that matches the green beam wavelength—DEWALT’s laser receiver is designed to work with this kit, providing reliable pickup and an audible/visual locator. When you’re setting up exterior foundations, large wall layout, or working in daylight, the detector/receiver combo keeps you accurate.
*Detector sold separately.
3x360 green beams: Full room layout with one setup.
1/8" accuracy at 30 ft: Precise positioning every time.
10-hour runtime on 20V MAX 2.0Ah battery: Full-day use.
IP54 rated: Dust and splash resistant for jobsites.
Compatible with DEWALT detector for 330 ft outdoor range.
Model: DCLE34030G
Range: 230 ft (70 m) without detector; 330 ft (100 m) with detector
Runtime: 10 hours (with DCB203 battery)
Accuracy: 1/8 inch at 30 feet (0.3 mm/m)
Mounting: 1/4";-20 and 5/8";-11 thread, magnetic base
IP Rating: IP54
Beam Color: Green
Laser Class: Class II (<1mW)

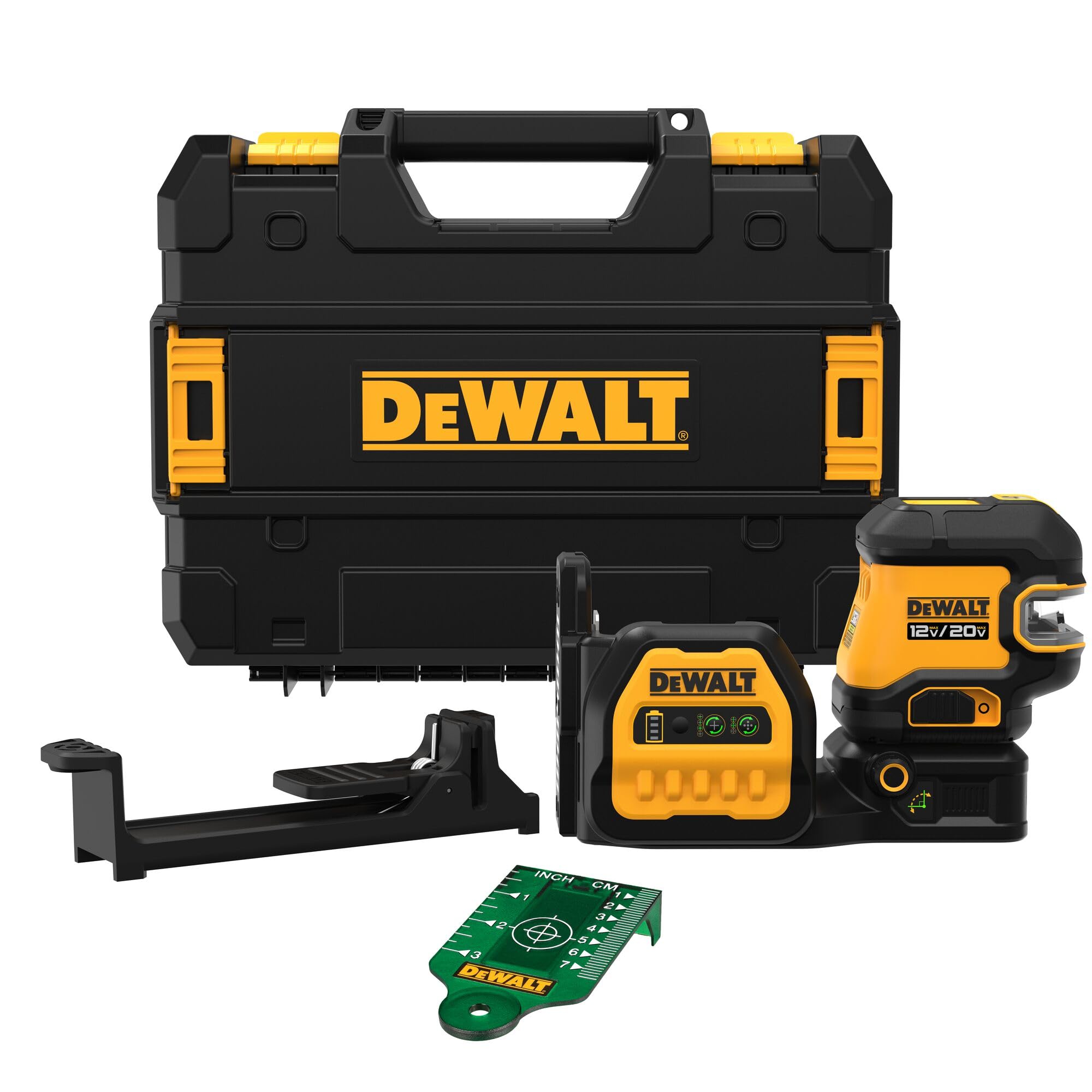

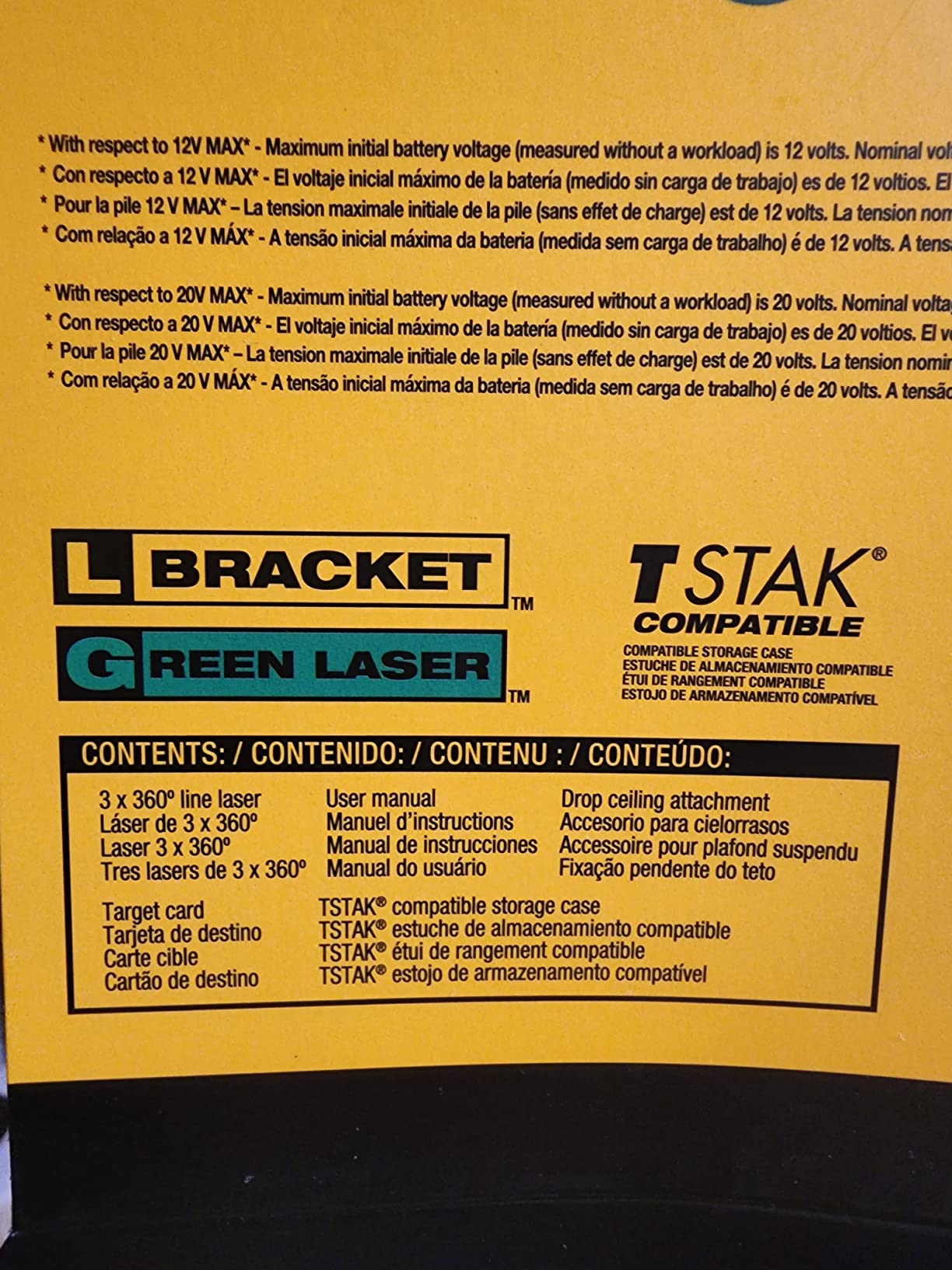

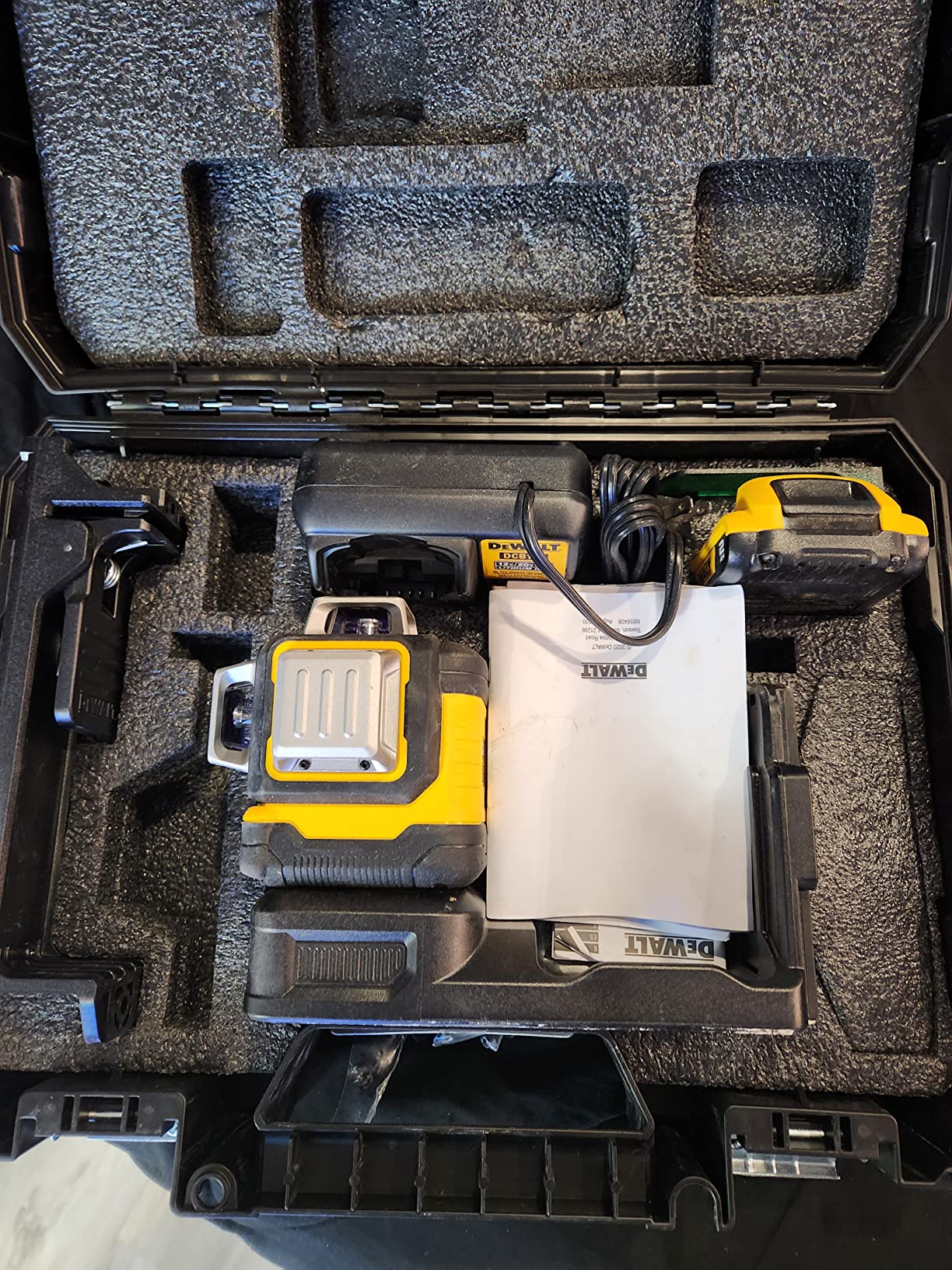

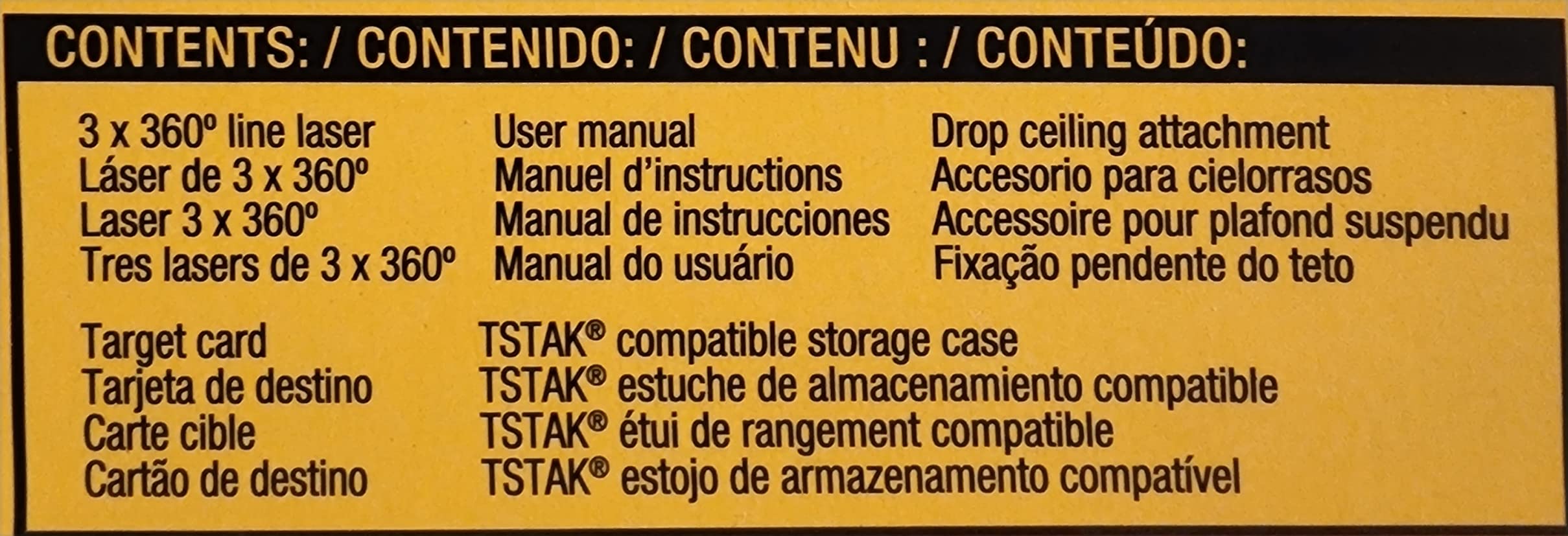

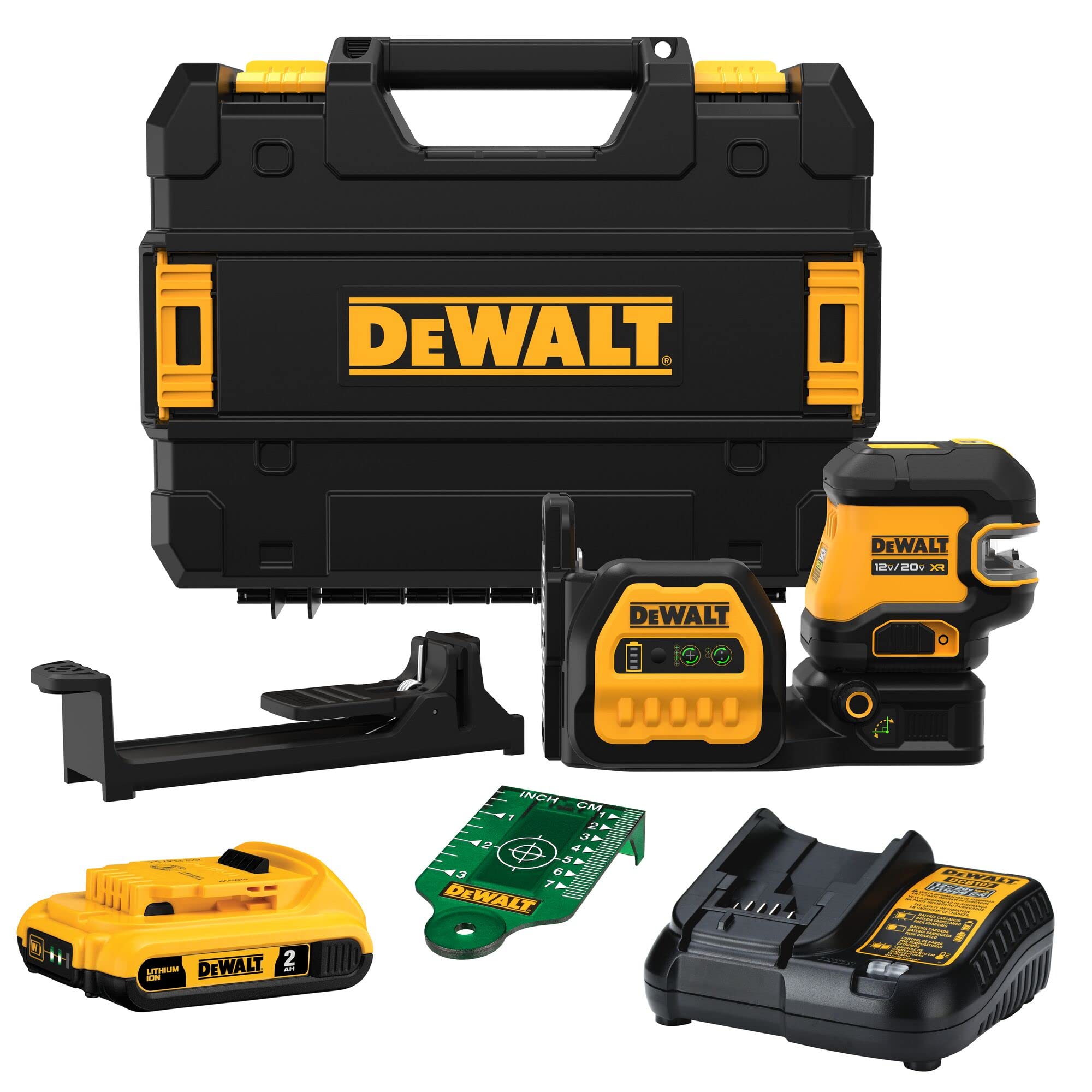

Kit Includes: Laser, DCB203 battery, charger, overmolded case
Product Type: Laser Level Kit
Battery Platform: DEWALT 20V MAX / 12V MAX
Number of Planes: 3x360
Seller: Workbench World
MPN: DCLE34030G
When working in bright sunlight or over long distances, the green beam may not be visible to the naked eye. Attach a DEWALT laser detector to the level to convert the beam into an audible/visual signal. Place the detector on the desired reference line and slide it up or down until you get a signal. This extends the working range to 330 feet and makes layout possible even in direct sunlight.
Green light is up to 4x more visible to the human eye than red, which means you can see a green beam in brighter conditions and across longer distances. The DCLE34030G uses green laser diodes for better visibility without sacrificing battery life. For any layout where you need to see the line clearly—especially on large interior walls or outdoor shadows—green is the professional choice.
DEWALT's laser detector (sold separately) is designed to work with this green laser. Any detector tuned to the same green wavelength may also work, but for best results use the DEWALT unit.
Usually not, but in bright sunlight or at distances over 230 ft, a detector extends visibility.
It uses DEWALT 12V MAX or 20V MAX batteries; a 20V MAX 2.0Ah battery is included.
It's rated IP54, meaning dust resistant and protected against splashing water, but not submersible.
Lines are crisp and bright.
I used the detector outside in sunlight. The red laser would have been useless.

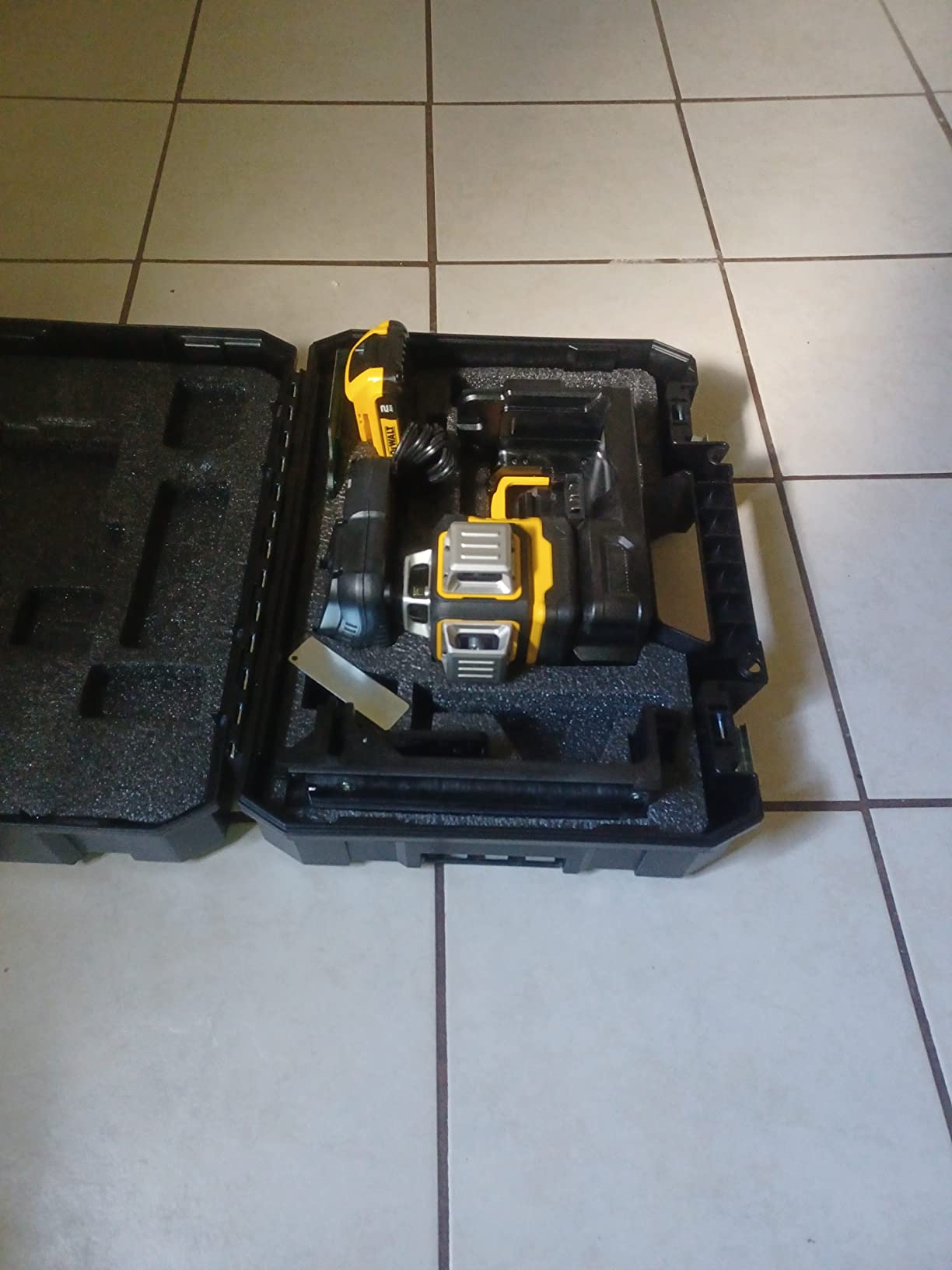

I had a bubble level all my life. This laser makes hanging shelves so much easier. The lines are very bright indoors. The detector helped in the garage. The kit comes with everything you need. The only thing I had to learn was the button order.

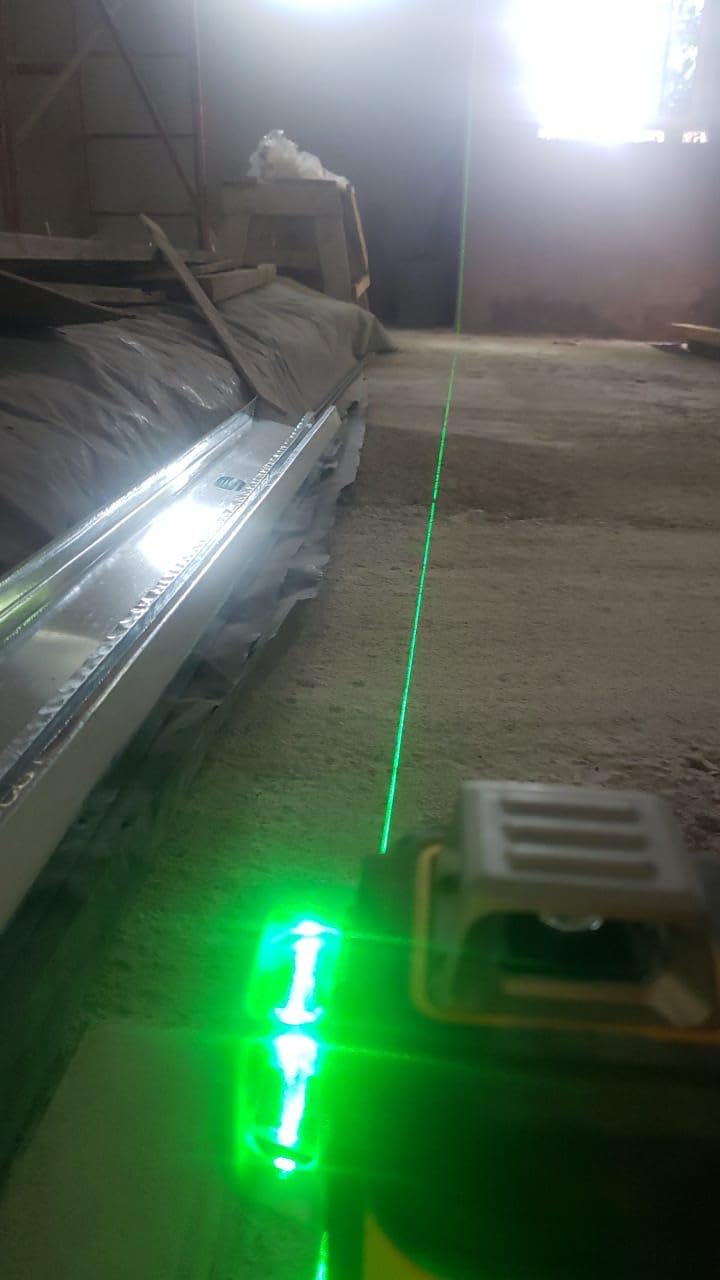

Bought this for a full wall of cabinets. The 3x360 feature is a game changer.

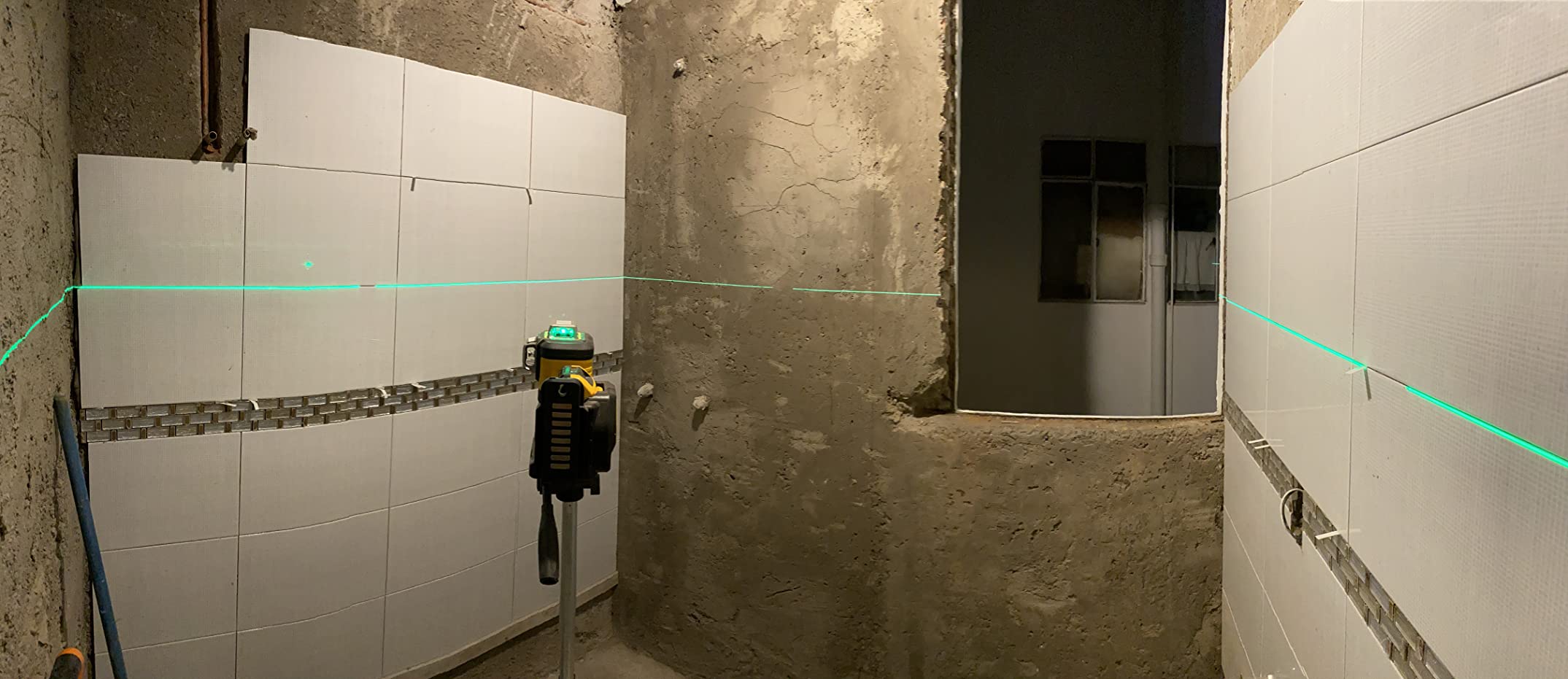

We use it to align wainscoting and tile. It's accurate and set up is quick. The battery lasts through a whole day. The green beams are visible even on darker trim. We rent it out to contractors when we're not using it.
Good level, easy to use.

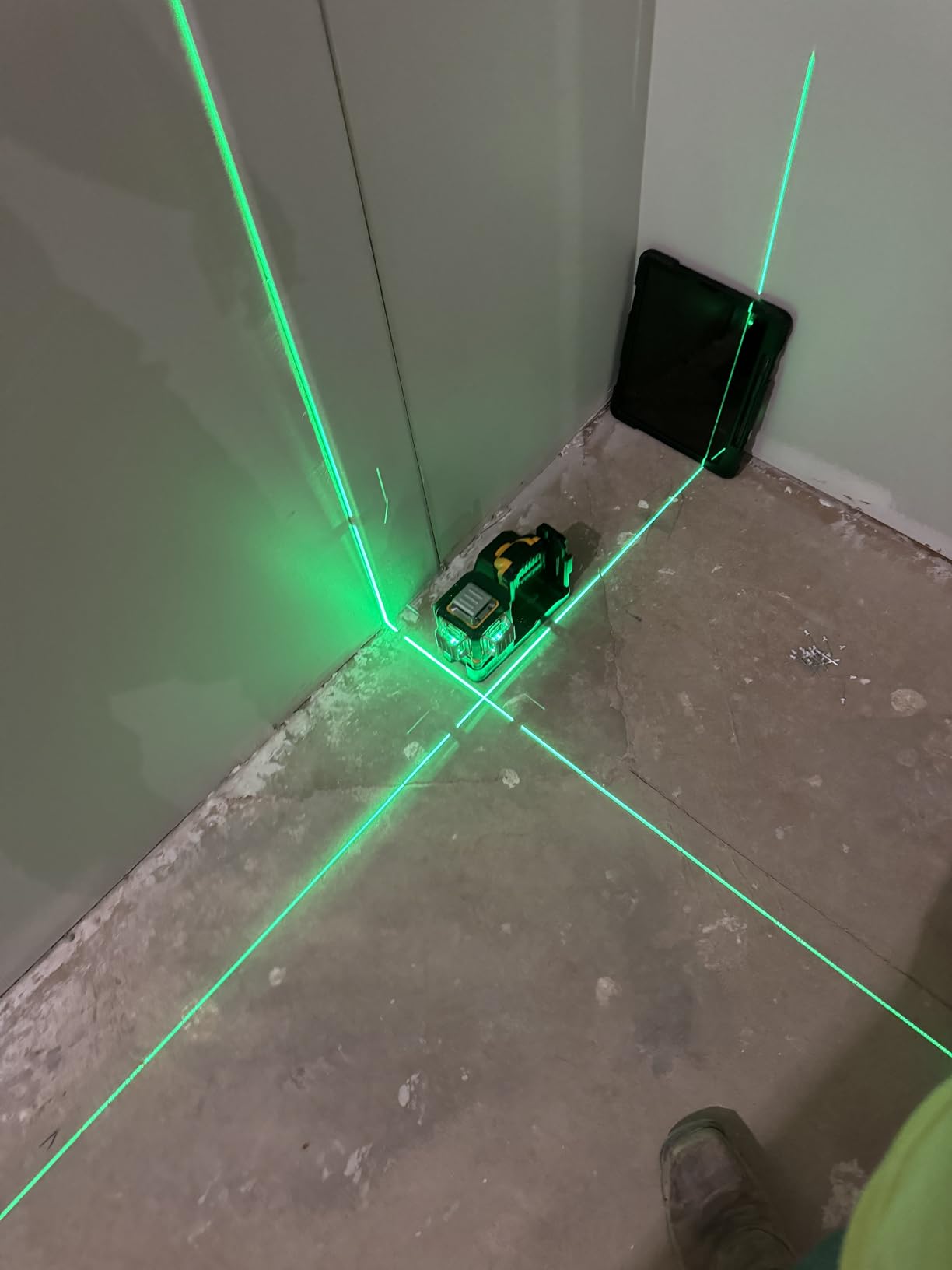

Great for laying out rooms. The detector is a must for bright spaces.
This replaced my old rotary laser. The green lines are twice as visible. It self-levels quickly. The magnetic mount is convenient. I use the 20V battery from my other DeWalt tools. I wish it came with a hard case.
Works great indoors, but the green lines wash out in direct sun without detector.

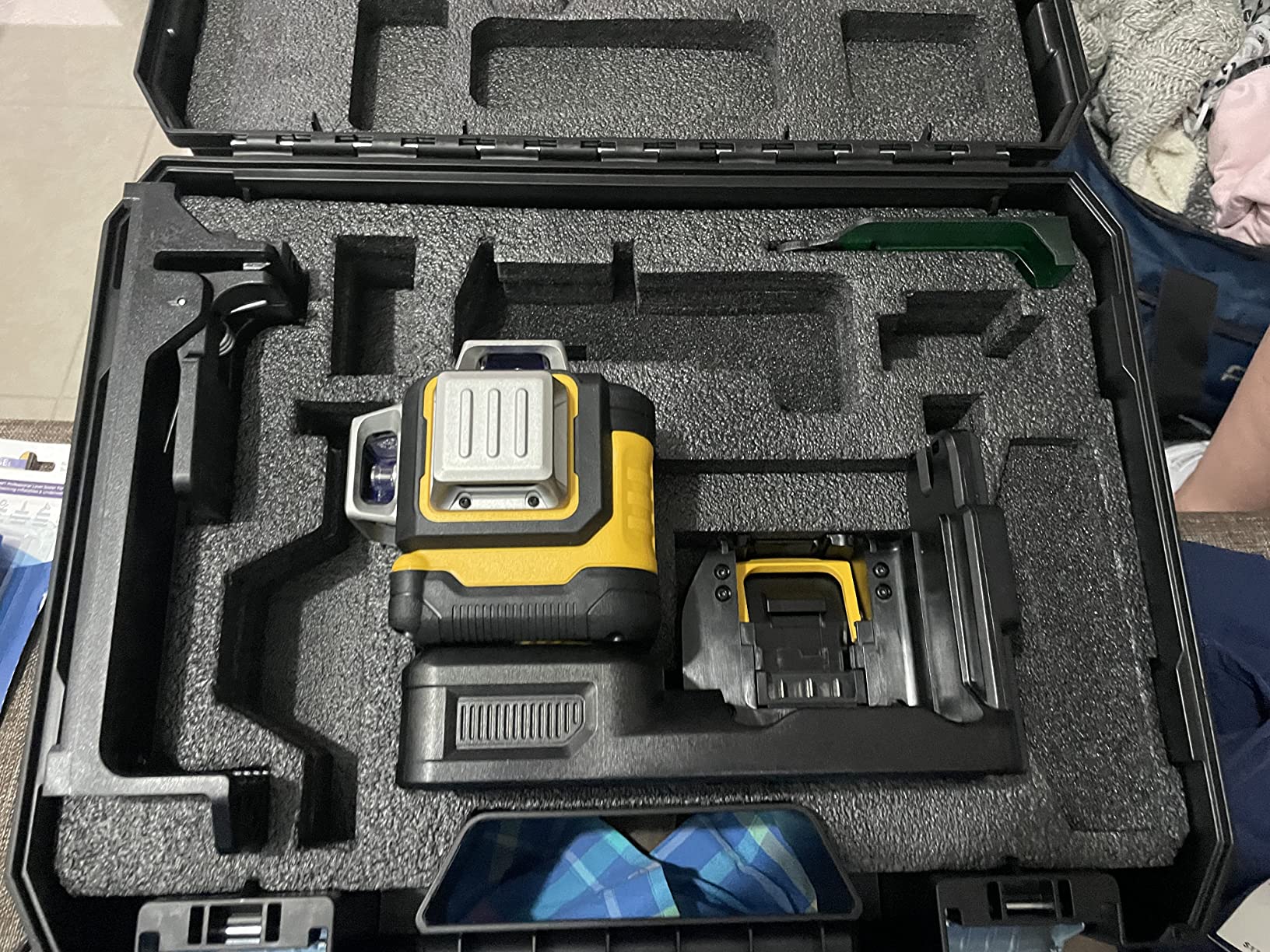

Accuracy is spot on — I checked it against a machinist's level. The 3x360 feature means I don't have to move it as often. It's built tough, like all DeWalt stuff. The battery charge lasts. The kit includes a nice wall mount. I would buy it again.

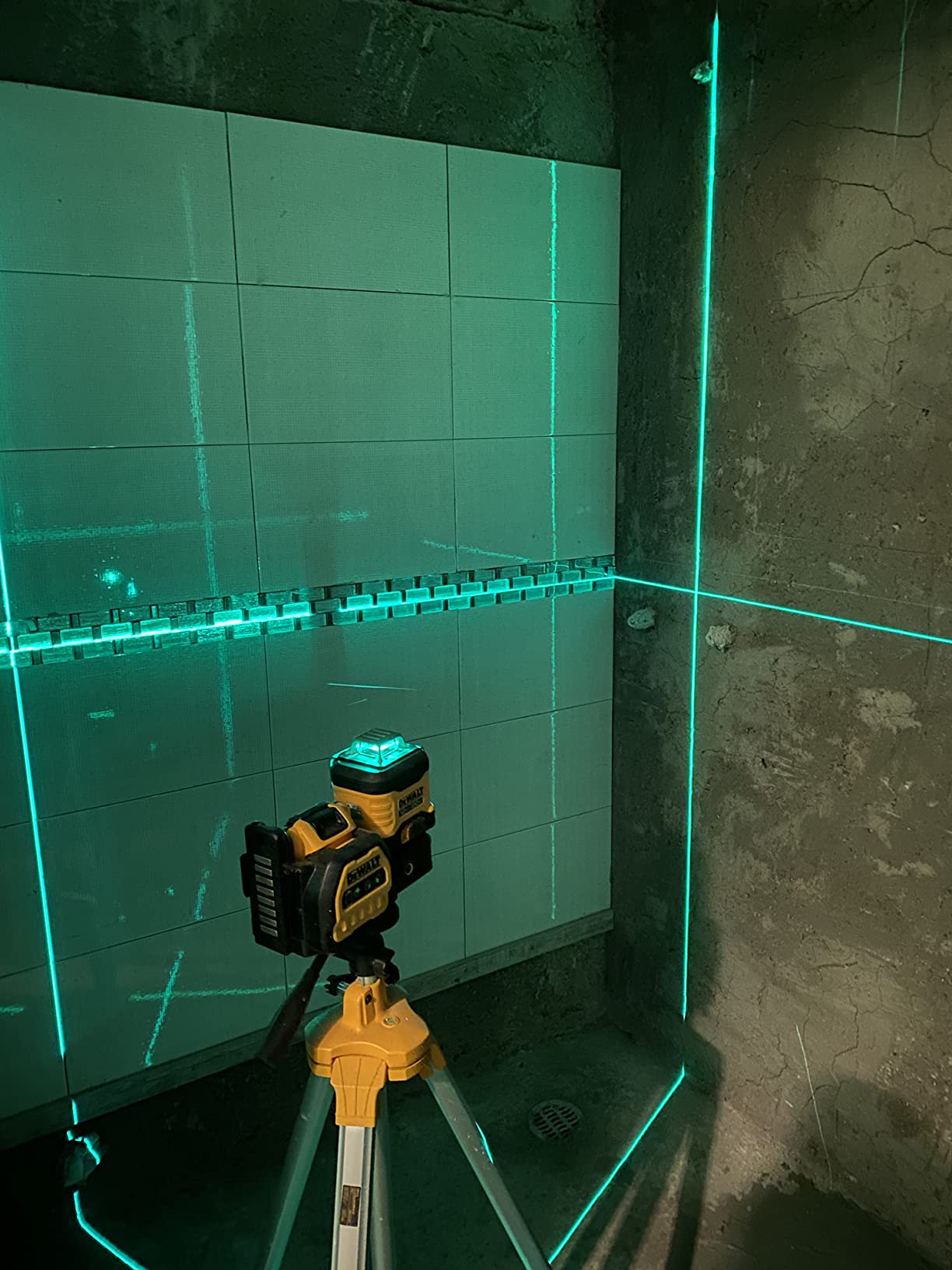

So much easier than a level.

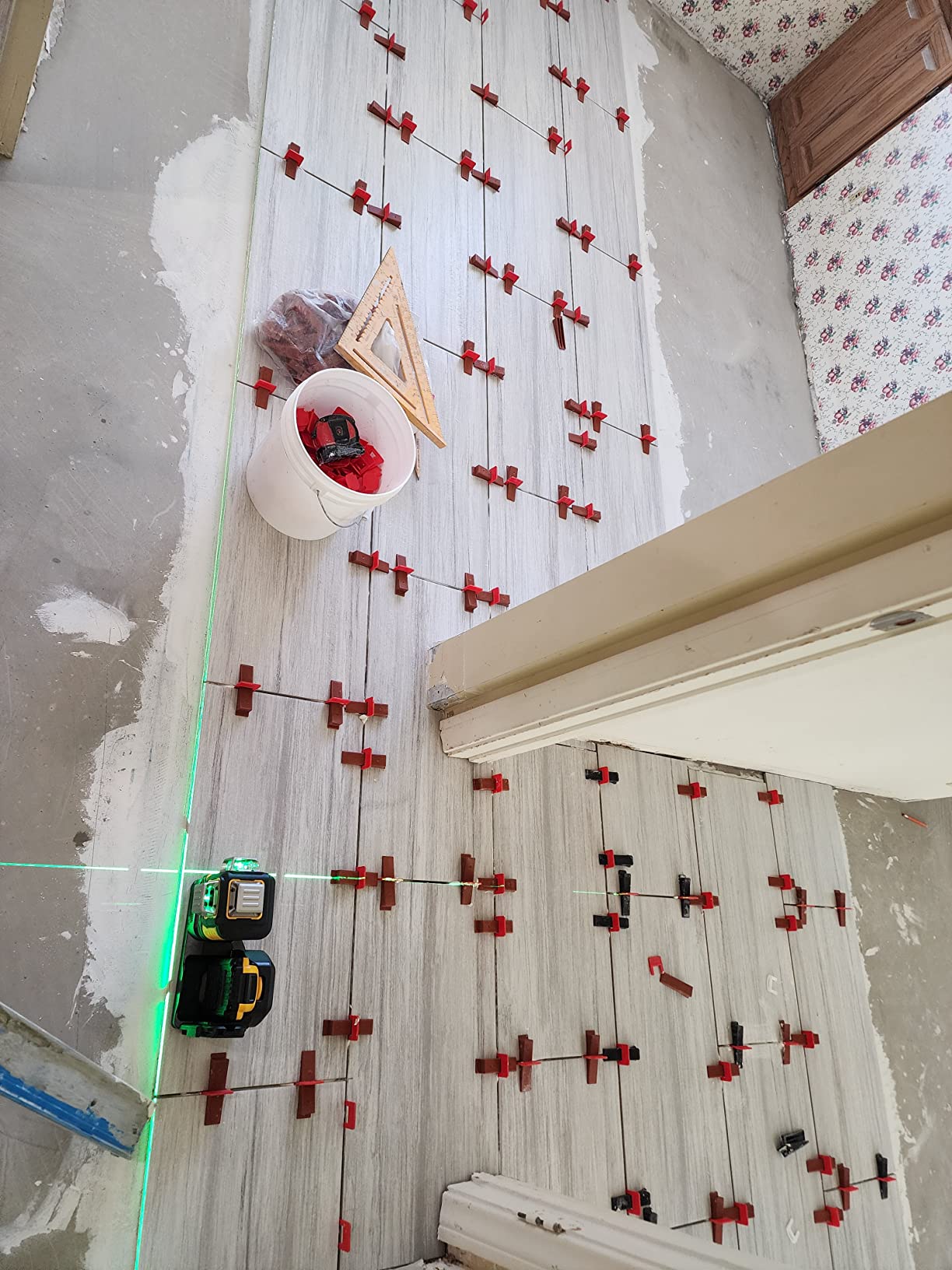

I use it for all my layouts. The green beams are fantastic on white tile.
