DEWALT DCF894HP2 20V MAX XR 1/2" Brushless Impact Wrench Kit with Hog Ring Anvil

Name: DEWALT DCF894HP2 20V MAX XR 1/2" Brushless Impact Wrench Kit with Hog Ring Anvil
Brand: DeWalt
SKU: WOR-TOO-794
Price: 99.75 USD
Availability: InStock
Rating: 4.8 (6 reviews)

4.8 (6)

$599.00 $99.75

The DEWALT DCF894HP2 20V MAX XR impact wrench delivers 330 ft-lbs of fastening torque, Precision Wrench Control, and a compact design for work in tight spaces.

In Stock

- 1 +

Get it in 3–5 business days.

8 people are viewing this item. 34 sold today. Only 10 left in stock.

Buy more, save more

dewalt-dcf896hb-20v-max-tool-connect-mid-range-impact-wrench-tool-only image 1

Pair withDEWALT DCF896HB 20V MAX Tool Connect Mid-Range Impact Wrench – Tool Only$91.90

Categories : tools

SKU : WOR-TOO-794

Description

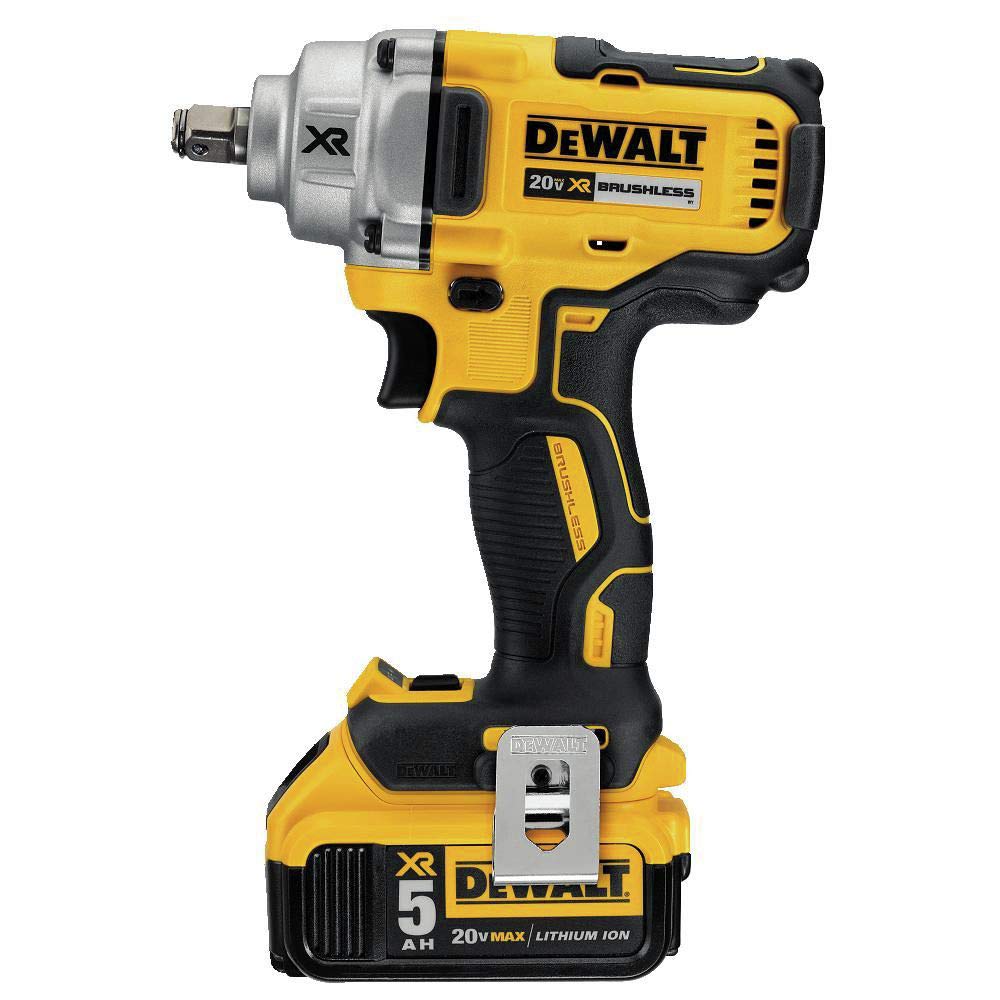

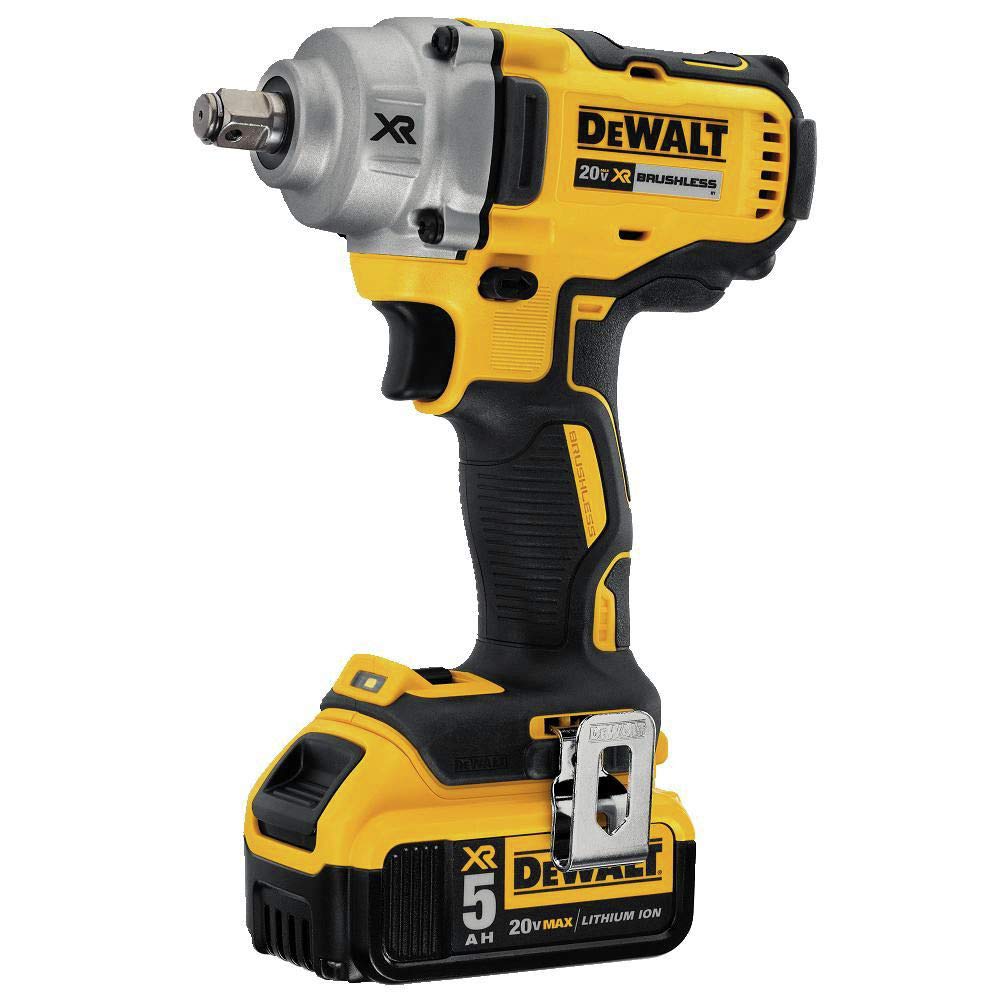

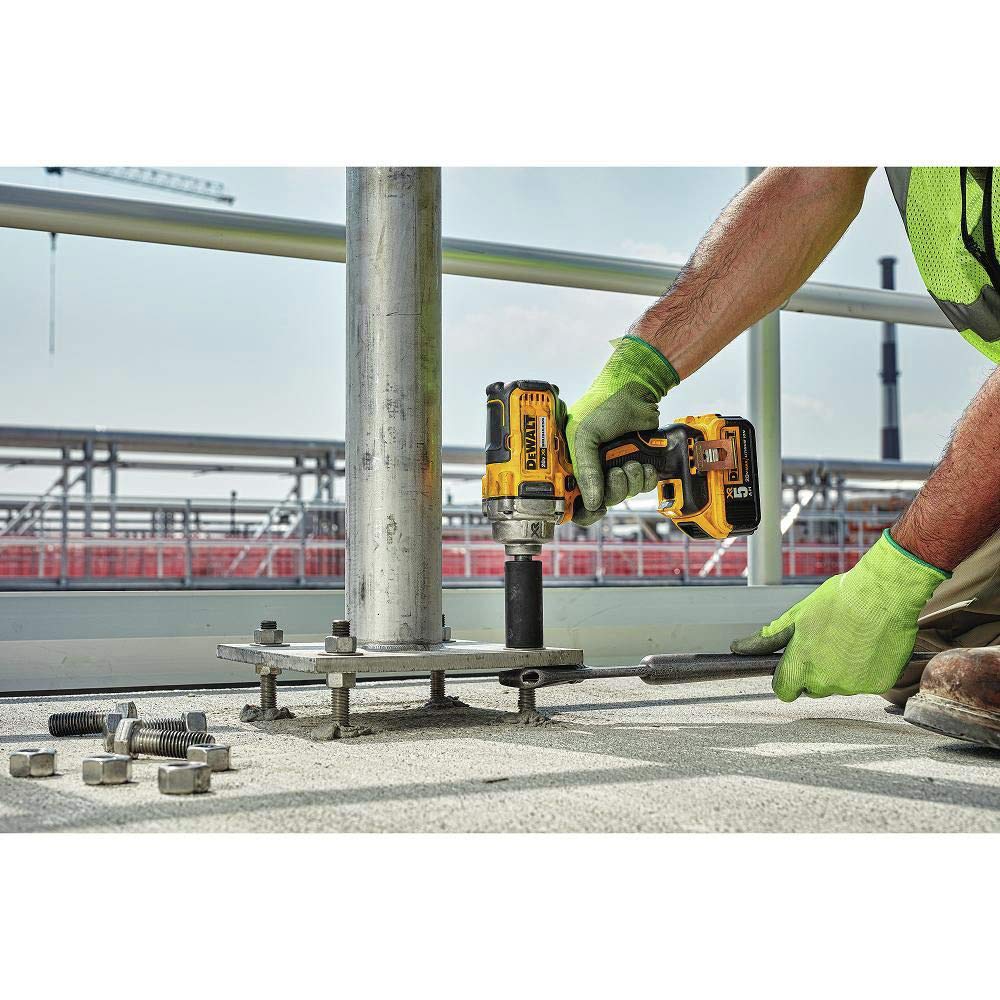

The DEWALT DCF894HP2 20V MAX XR 1/2 in. Brushless Impact Wrench Kit is a mid-range powerhouse for fastening large fasteners. With up to 330 ft-lbs of max torque, it handles grooved couplings, pipe flanges, wheel lugs, and concrete anchors. The hog ring anvil keeps sockets firmly in place, while Precision Wrench Control prevents overtightening in forward and fastener run-off in reverse. This kit includes two batteries, charger, and a contractor bag.

DEWALT DCF894HP2 1/2" Impact Wrench – Compact Torque, Controlled Fastening

At just 3.48 lbs, this impact wrench is light enough to use for extended periods without fatigue. It offers three speed modes to match the application, plus a variable-speed trigger for precise control. An LED light illuminates dark working areas, and the DEWALT-built brushless motor delivers efficient power and enhanced runtime.

Hog Ring Anvil: Secure Socket Retention and Easy Replacement

The 1/2-inch hog ring anvil uses a spring-loaded ring to keep sockets locked on the anvil. Over time, that ring can wear and cause sockets to slip. When you notice endplay or rattling, the hog ring can be replaced with a standard part (common DEWALT replacement part). To replace it, remove the spent ring, slide the new ring into the groove, and test that the socket seats firmly. If you're unsure about the correct part number, contact our support team and we'll help identify it.

Precision Wrench Control

In forward, the tool pauses before impacting to help prevent overtightening – ideal for fasteners where torque needs to stay within spec. In reverse, the tool lowers speed when a fastener is loose, so you won't send a nut flying off into the dark.

3-Mode Settings for Any Fastening Task

Choose between precision, moderate, and full-power modes. This helps you step down for smaller fasteners without giving up the muscle needed for bigger jobs.

Kit Includes: DCF894HP2 impact wrench, two 20V MAX batteries, charger, and heavy-duty kit bag.

Features

Up to 330 ft-lbs of fastening torque: handles heavy-duty fastening jobs.
Precision Wrench Control: prevents overtightening and fastener run-off.
Compact and lightweight at 3.48 lbs: reduces fatigue in tight spaces.
Hog ring anvil: keeps sockets secured; replacement is simple when needed.
3 mode settings: adapts torque and speed to the job.
Drive: 1/2 in. hog ring anvil
Model: DCF894HP2
Motor: Brushless
Weight: 3.48 lb (1.58 kg) tool only
Features: Precision Wrench Control, variable speed trigger, LED light
Kit Contents: Two 20V MAX batteries, charger, bag
Product Type: 1/2" Brushless Impact Wrench Kit
Speed Settings: 3
Max Fastening Torque: 330 ft-lbs
Seller: Workbench World
MPN: DCF894HP2

Product Details

Mid-Range vs High-Torque Impact Wrench

The DCF894HP2 sits in the sweet spot of the DEWALT lineup: enough torque for most stubborn fasteners, but light and compact enough for overhead work. For occasional heavy-duty suspension or trailer work, a high-torque 1/2" model adds extra breakaway capability, but this tool is the better balance for general contracting.

Hog Ring vs Detent Pin Anvil

Hog ring anvils let you swap sockets quickly with one hand, while detent pins require a pin release. The trade-off is that a hog ring can wear over time. Both are reliable, but your preference may depend on how often you change sockets. The DCF894HP2's hog ring is a standard design, so replacement parts are easy to find.

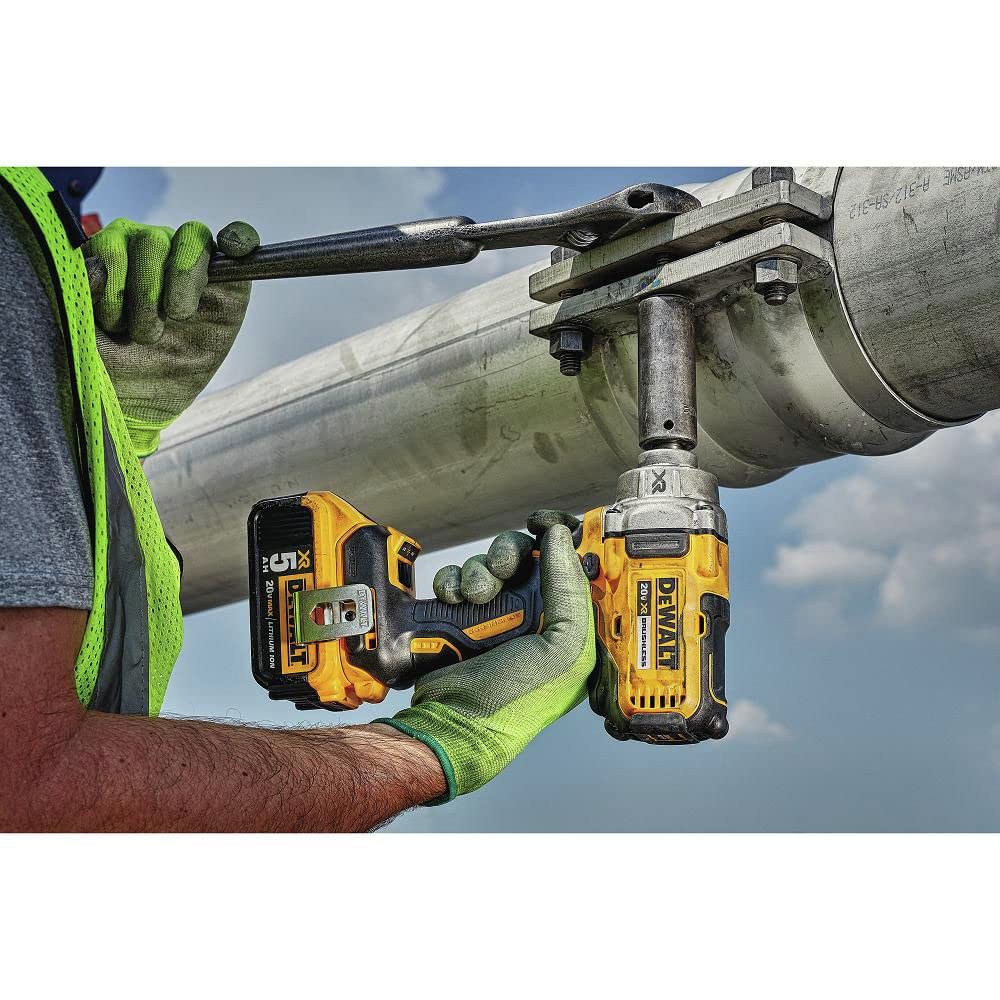

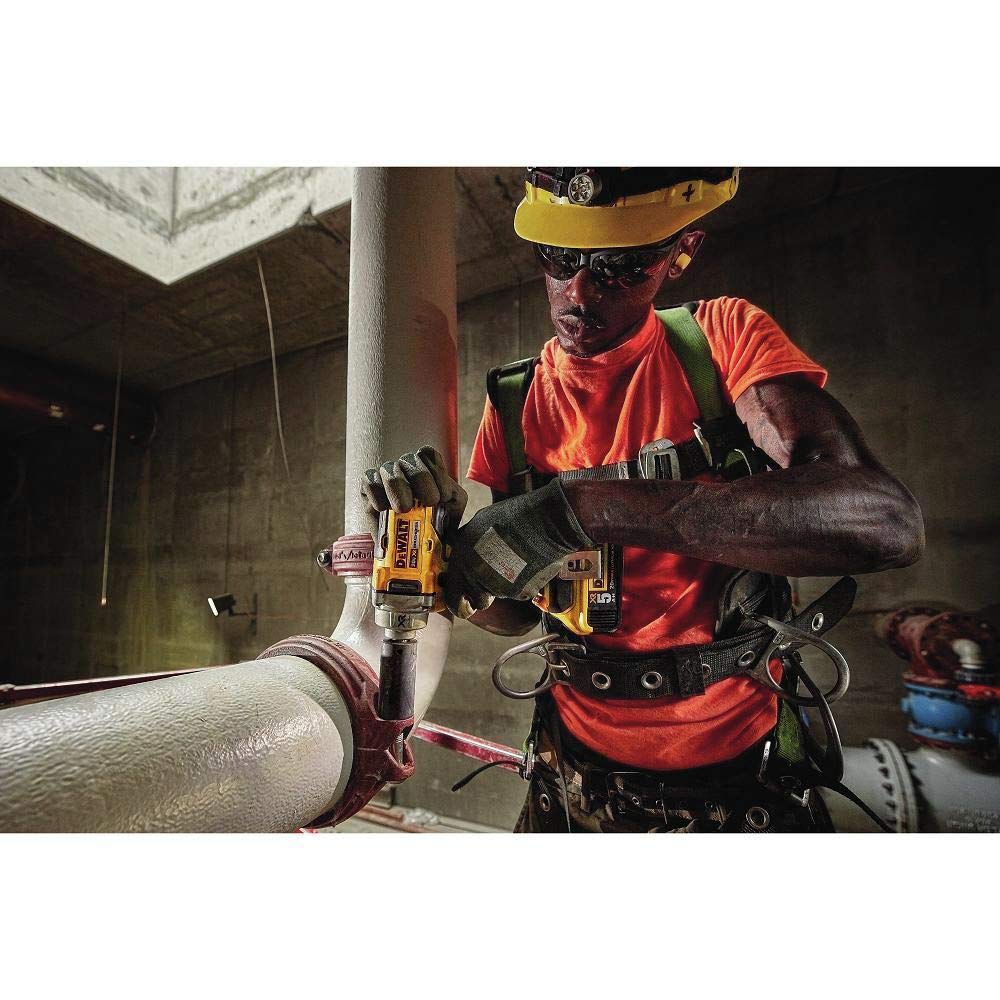

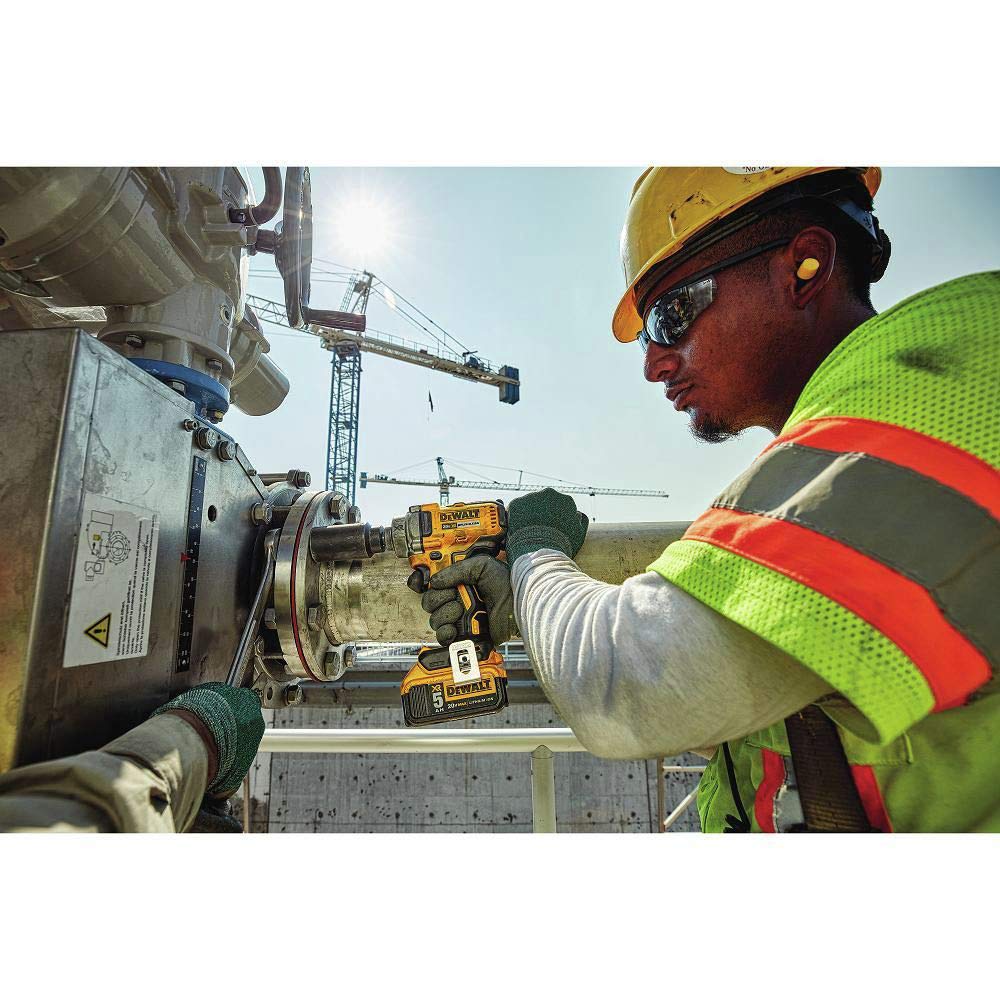

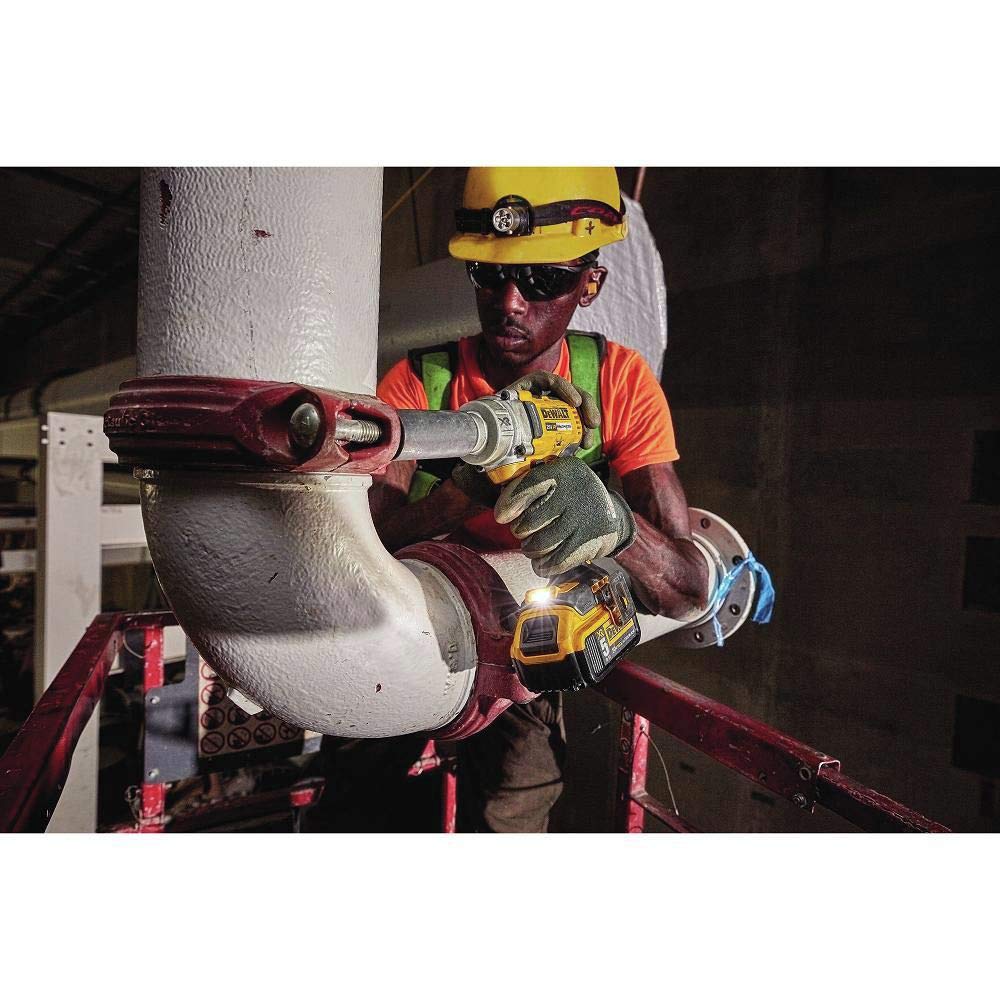

Working with Pipe Flanges and Grooved Couplings

For grooved couplings, use the low speed mode to prevent overtorquing the coupling bolts. For pipe flanges, let the wrench start threading slowly, then engage the medium or high mode for final rundown. The variable-speed trigger gives you all the finesse you need.

Battery Runtime and Performance

The kit includes two 20V MAX batteries so you can keep working while one charges. For long, continuous disassembly, pair the wrench with a high-capacity battery like the 6Ah or 8Ah pack. The brushless motor also stretches runtime significantly compared to older brushed models.

Maintaining Your Impact Wrench

Wipe the housing after exposure to dust and moisture. Occasionally check the anvil to ensure the hog ring hasn't flattened. Lubricate the anvil with a drop of light oil if it feels rough. Always remove the batteries before cleaning or doing maintenance.

Hog Ring Replacement Guide

When your sockets begin to slip or the ring looks worn, replacing it takes just a few minutes. Use a snap ring tool to pop the outer ring, then pull it off the anvil. Install the new ring by pressing it into the groove until it clicks. Test with a socket to confirm it seats tightly.

Frequently Asked Questions

How do I replace the hog ring on my DCF894HP2?

Use a snap ring tool to remove the worn ring from the anvil groove. Slide the new hog ring in place, ensuring it fully seats. If needed, contact our support for the correct replacement part number.

What is the part number for the hog ring?

Common replacement part numbers are listed in the DEWALT parts diagram. If you're unsure, contact our support team and we'll verify the right part for your DCF894HP2.

Does the kit come with batteries?

Yes, the kit includes two 20V MAX batteries, a charger, and a bag.

Can this wrench remove lug nuts?

It's capable of 330 ft-lbs of fastening torque, which is enough for most passenger vehicle lug nuts. For heavy truck applications, consider a high-torque model.

What is Precision Wrench Control?
