The DEWALT DCS714B 20V MAX XR 10-inch double bevel fixed miter saw delivers cordless cutting power, up to 434 cuts per charge, and 97% dust capture—tool only.
Categories : tools
SKU : WOR-TOO-961
Share This:

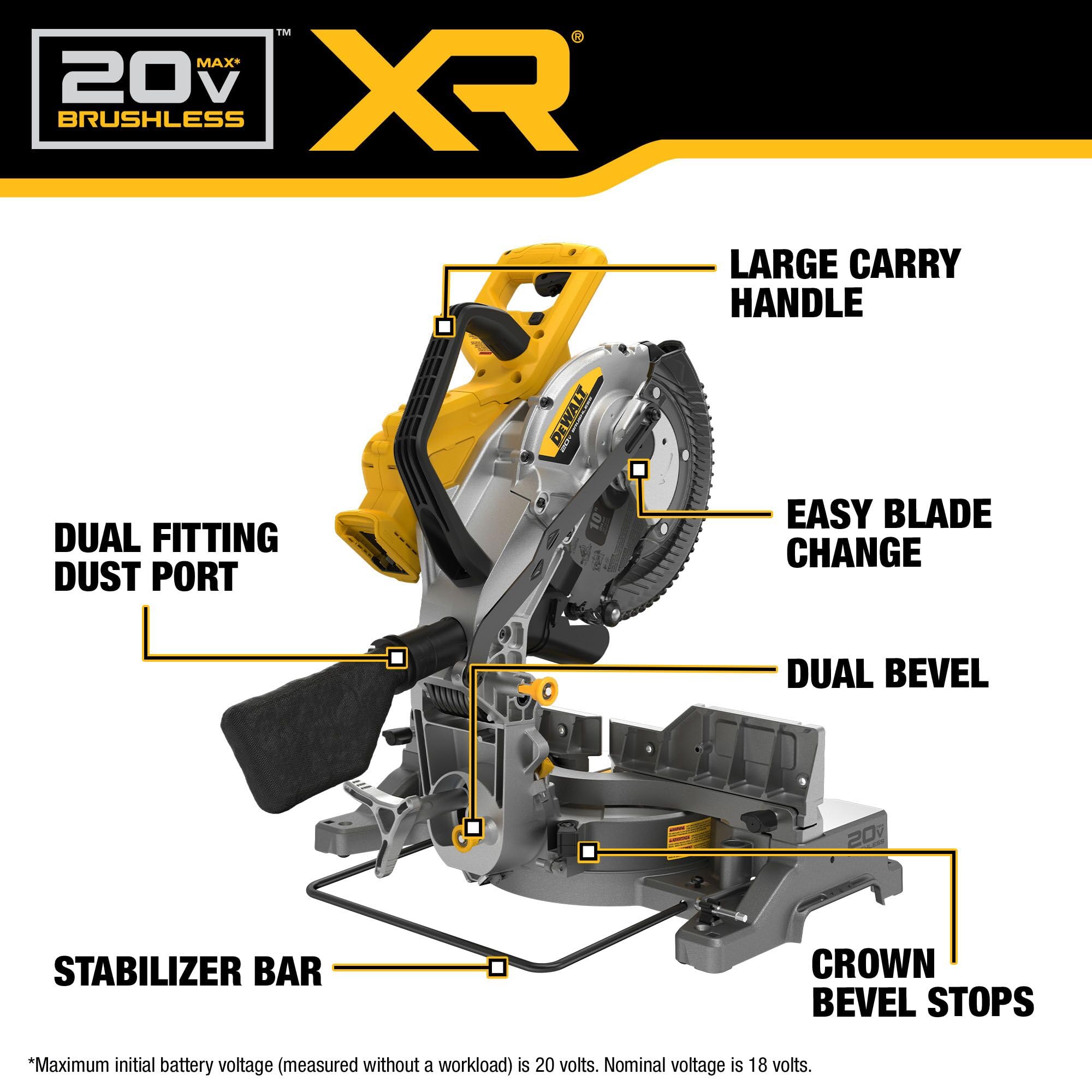

The DEWALT DCS714B 20V MAX XR 10-Inch Double Bevel Fixed Miter Saw is a cordless solution for trim, molding, and framing that doesn't compromise on capacity. DEWALT rates it as their most powerful 20V MAX compact miter saw, and the numbers back that up: up to 434 cuts in 3-1/4-inch MDF base molding and up to 311 cuts in 2x4 SPF on a single charge. The double bevel design lets you tilt the blade left or right for compound cuts without flipping the workpiece, and the fixed miter base keeps the saw compact and easy to transport.

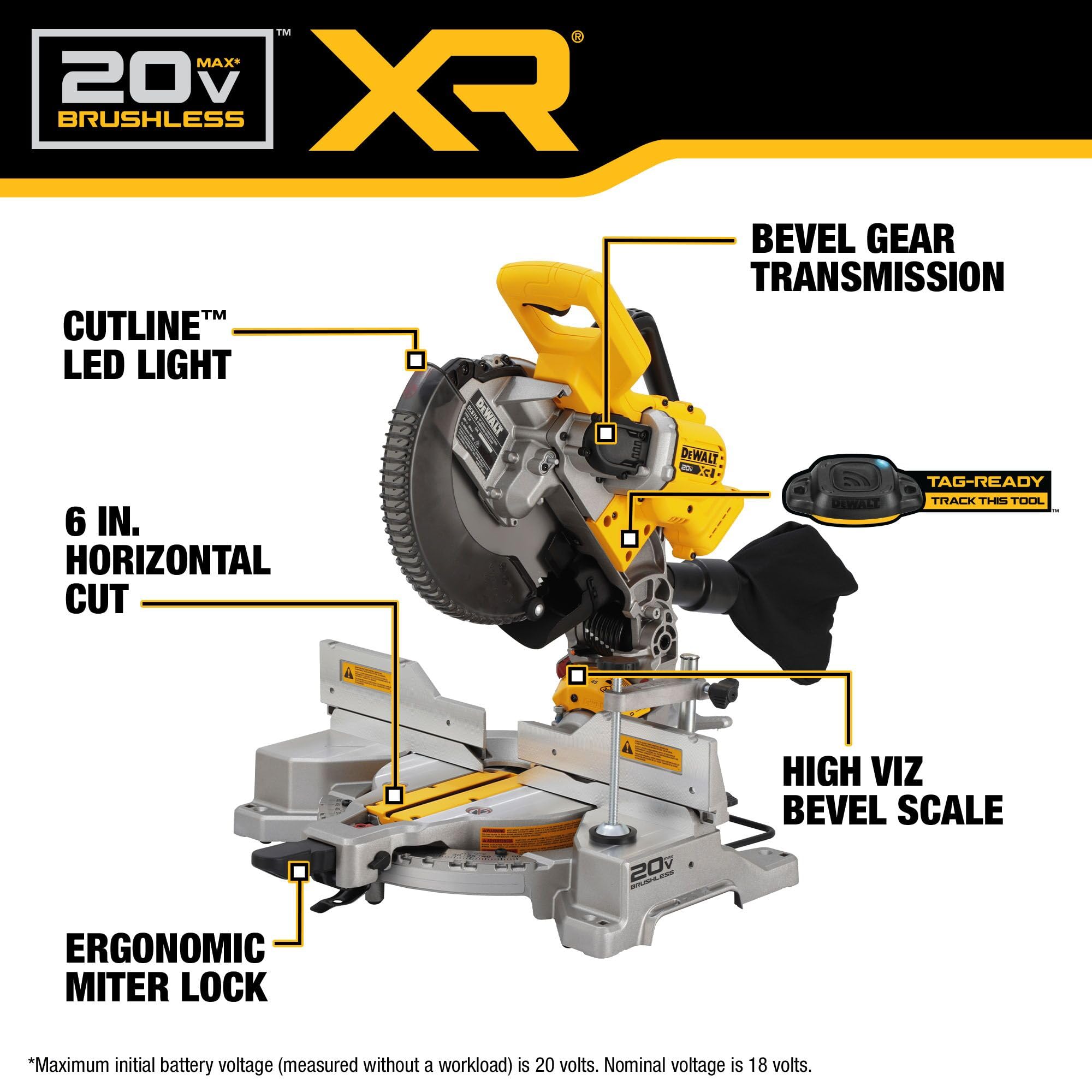

This tool-only saw runs on any DEWALT 20V MAX or FLEXVOLT battery, making it a smart next step if you already own DEWALT cordless tools. It uses a bevel gear transmission to minimize power loss, which extends runtime and keeps the saw performing even under load. The cutline blade positioning system uses a blade shadow to show your cut line, so there's no laser to calibrate or replace.
Keeping the saw accurate starts with checking the blade-to-table and blade-to-fence squareness. The bevel positive stops at 22.5° and 33.9° can be adjusted if your cuts drift from those angles. Here are the key setup points:
Ideal for finish carpenters, floor installers, and advanced DIYers who need cordless cutting without losing the accuracy of a miter saw.
Most powerful 20V MAX compact miter saw from DEWALT, cuts up to 434 MDF base pieces per charge.
Double bevel with 22.5° and 33.9° pawls simplifies crown and bevel cuts.
Cutline blade positioning system provides accurate cut indication without batteries or lasers.
Bevel gear transmission and regenerative braking extend runtime.
Tool-only design is compatible with existing 20V MAX and FLEXVOLT batteries.
Model: DCS714B
Motor: Brushless XR
Weight: 34 lb (15.4 kg) tool only
Included: Miter saw with blade, carry handle, bevel pawls (no battery or charger)
Blade Size: 10 in (254 mm)
Bevel Range: Double bevel, left and right
Bevel Stops: 22.5° and 33.9°

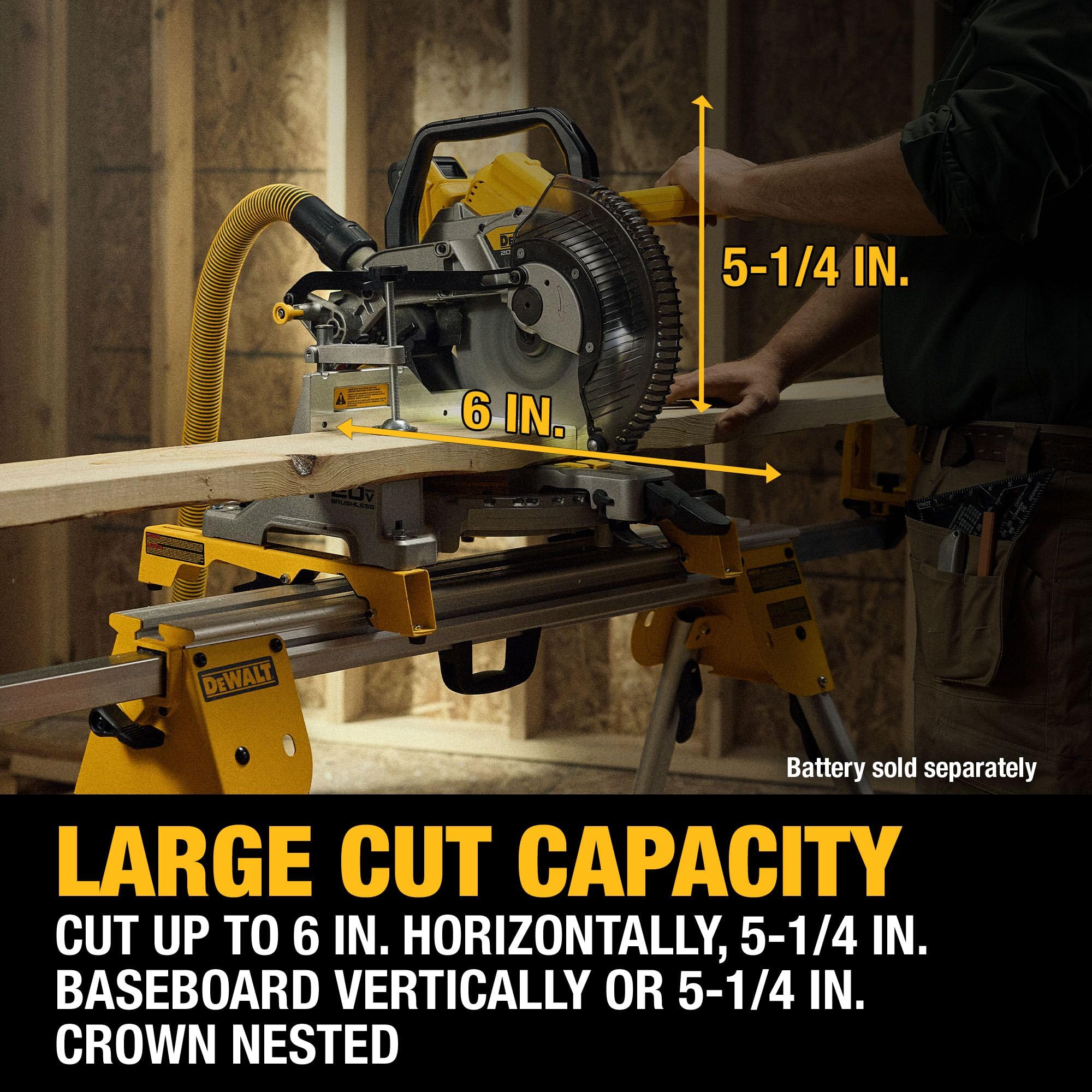

Cut Capacity: 6 in horizontal, 5-1/4 in baseboard vertical, 5-1/4 in crown nested
Product Type: 10-Inch Double Bevel Fixed Miter Saw (Tool Only)
Dust Collection: Up to 97%
Max Cuts per Charge: 434 in 3-1/4 in MDF base molding; 311 in 2x4 SPF
Battery Compatibility: DEWALT 20V MAX / FLEXVOLT (sold separately)
Seller: Workbench World
MPN: DCS714B
A miter saw is only as accurate as its setup. Use these steps to get the DCS714B cutting square and repeatable.
Unplug the battery, lower the blade, and hold a combination square against the table and the side of the blade. Loosen the bevel socket screw and adjust until the square sits flush, then tighten. Repeat on the fence side for 90°.
These bevel pawls are key for crown molding and common frame cuts. Loosen the pawl screw, rotate the bevel to the mark, set a digital protractor on the blade to check the angle, and lock the pawl. Test on scrap before cutting real trim.
Because the cutline is a blade shadow, any blade wobble or dull teeth reduce visibility. Use a sharp blade, check the arbor nut torque, and keep blade teeth clear of pitch. The shadow line updates automatically as you change angles, so no calibration is needed for the cutline itself.
No, this is the tool-only version. It runs on any DEWALT 20V MAX or FLEXVOLT battery sold separately.
Use a square to check blade-to-table squareness. Loosen the positive stop screw, set the angle with a digital protractor, and tighten. The 22.5° and 33.9° pawls are adjustable in the same way.
No, the DCS714B is a fixed miter saw. It pivots for miter and bevel cuts but does not slide, which keeps it compact and easier to carry.
It uses a 10-inch miter saw blade with a standard 5/8-inch arbor.
No, it uses DEWALT's cutline blade positioning system, which casts a shadow line that tracks the blade. There's no laser to align.

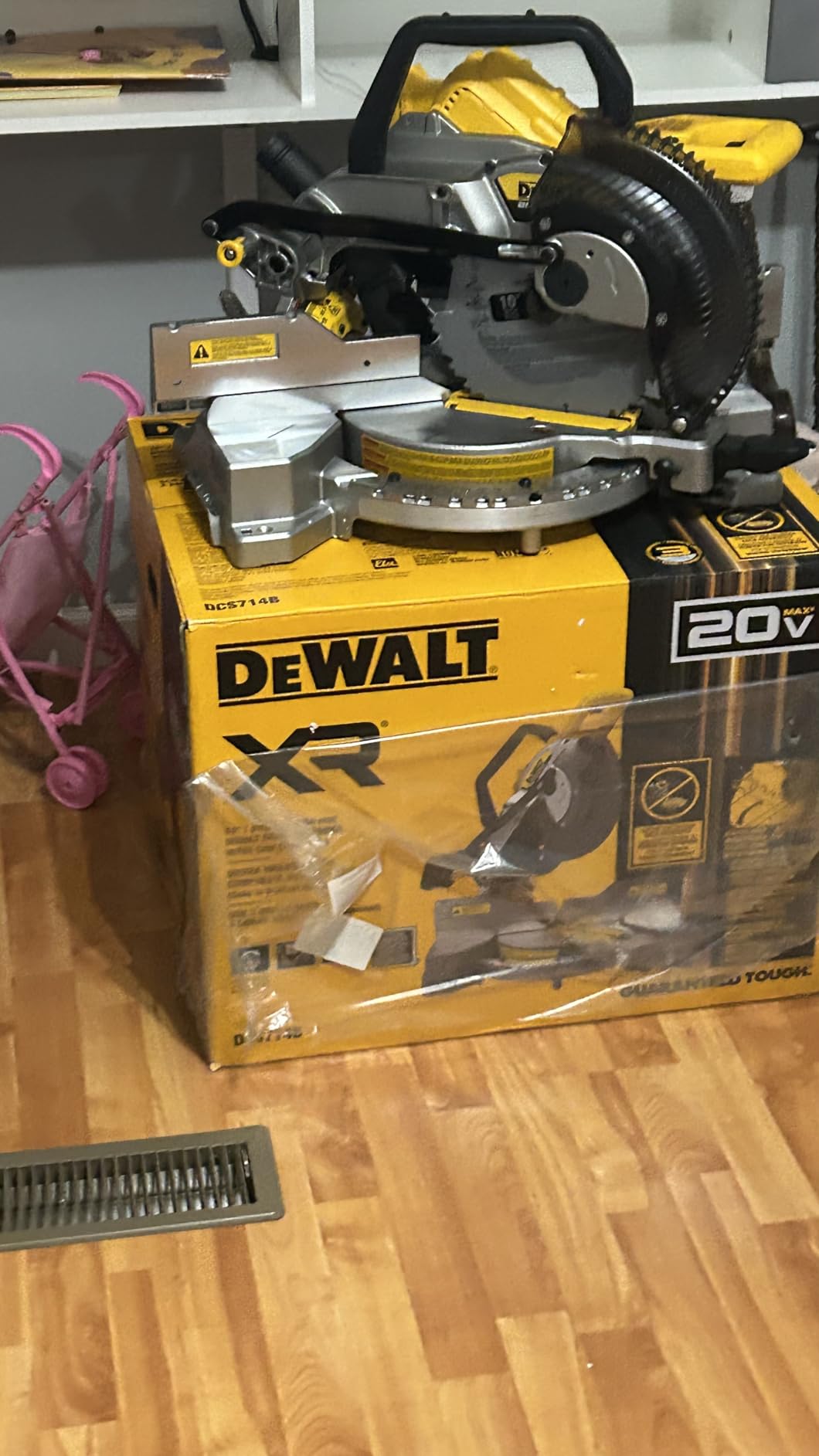

Cuts are precise.

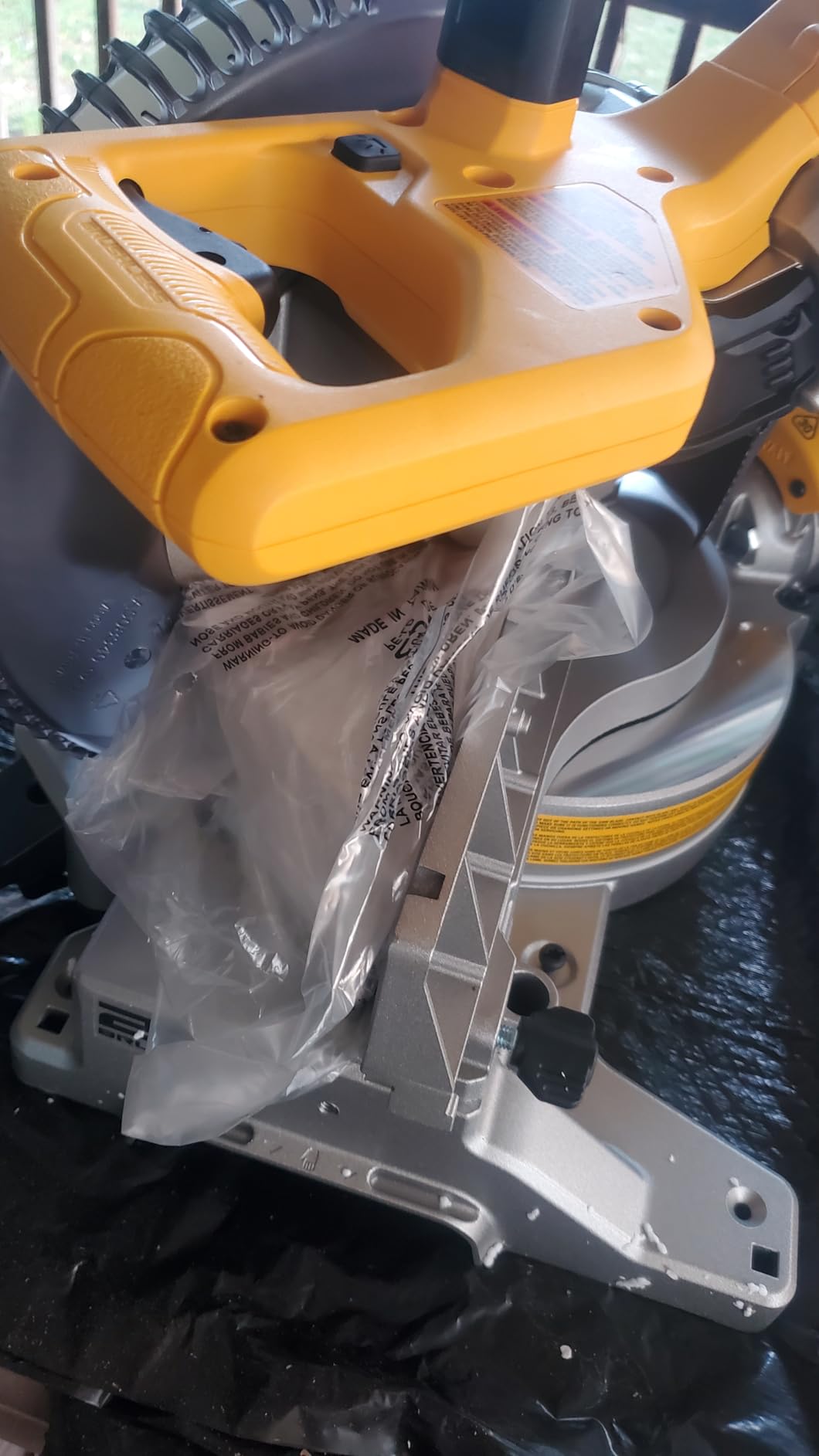

Good saw, heavy.

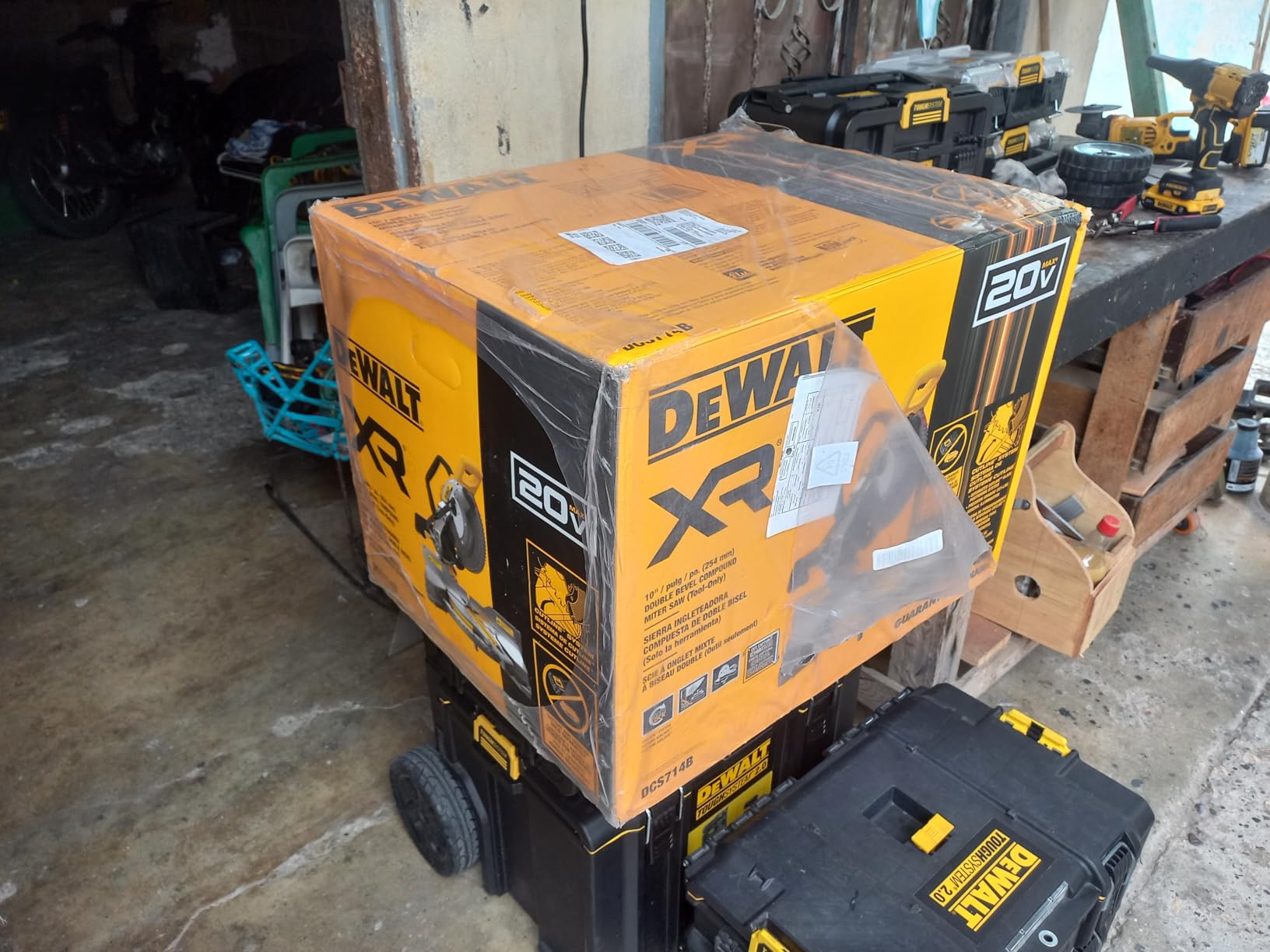

This saw is perfect for trim work. The double bevel is a time saver. The dust collection works well.

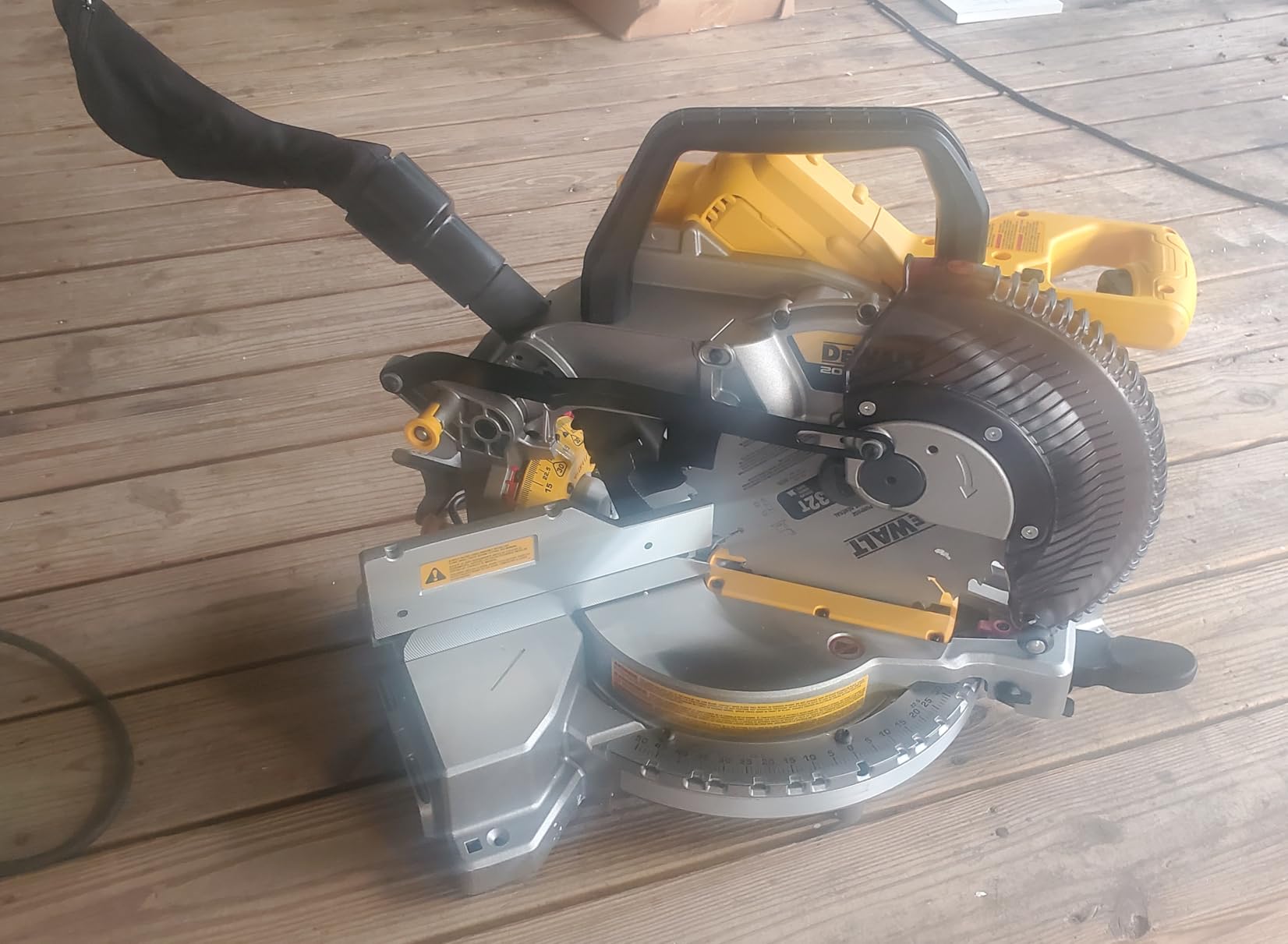

Powerful and accurate. The only issue is it's heavy. The fence is square.

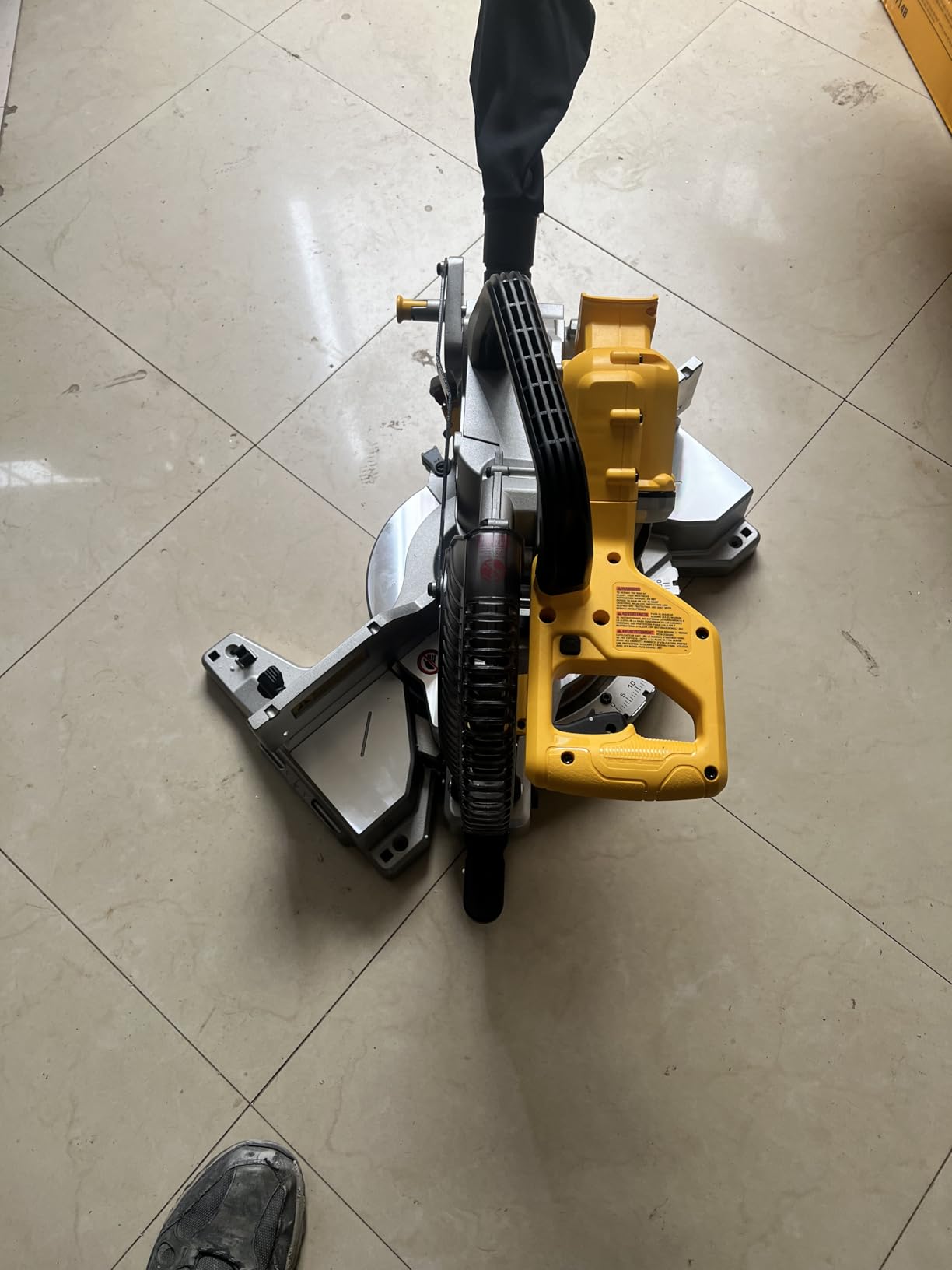

This miter saw exceeded my expectations. The cut quality is right on the money. The bevel adjustments are smooth. The battery lasts for quite a few cuts. The dust bag catches most of the mess. I highly recommend it for site work.

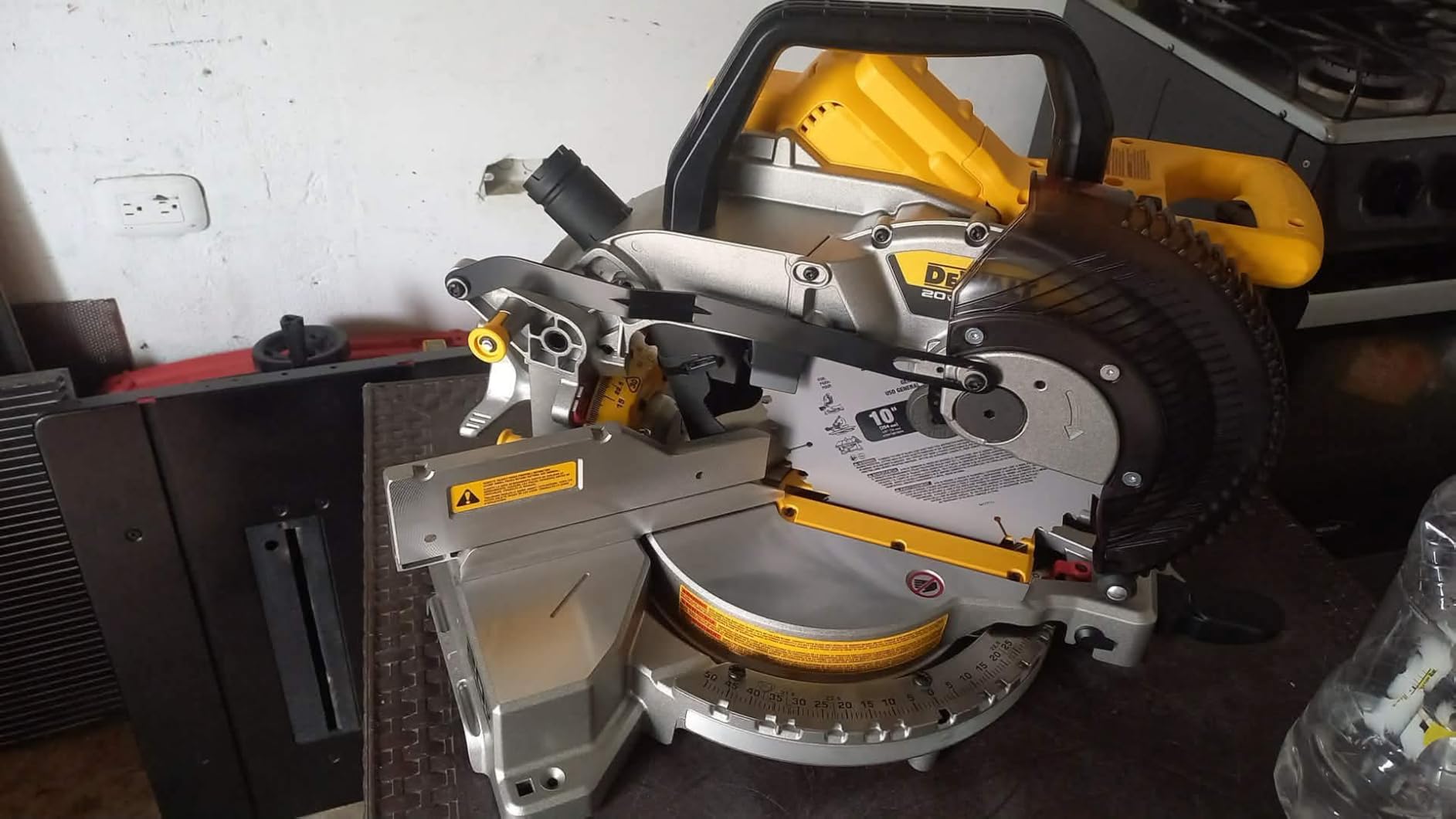

I've been a carpenter for many years and this cordless miter saw is convenient. It has plenty of power. The dust collection is surprisingly good. The only downside is the price. But if you need portability, it's worth it.
