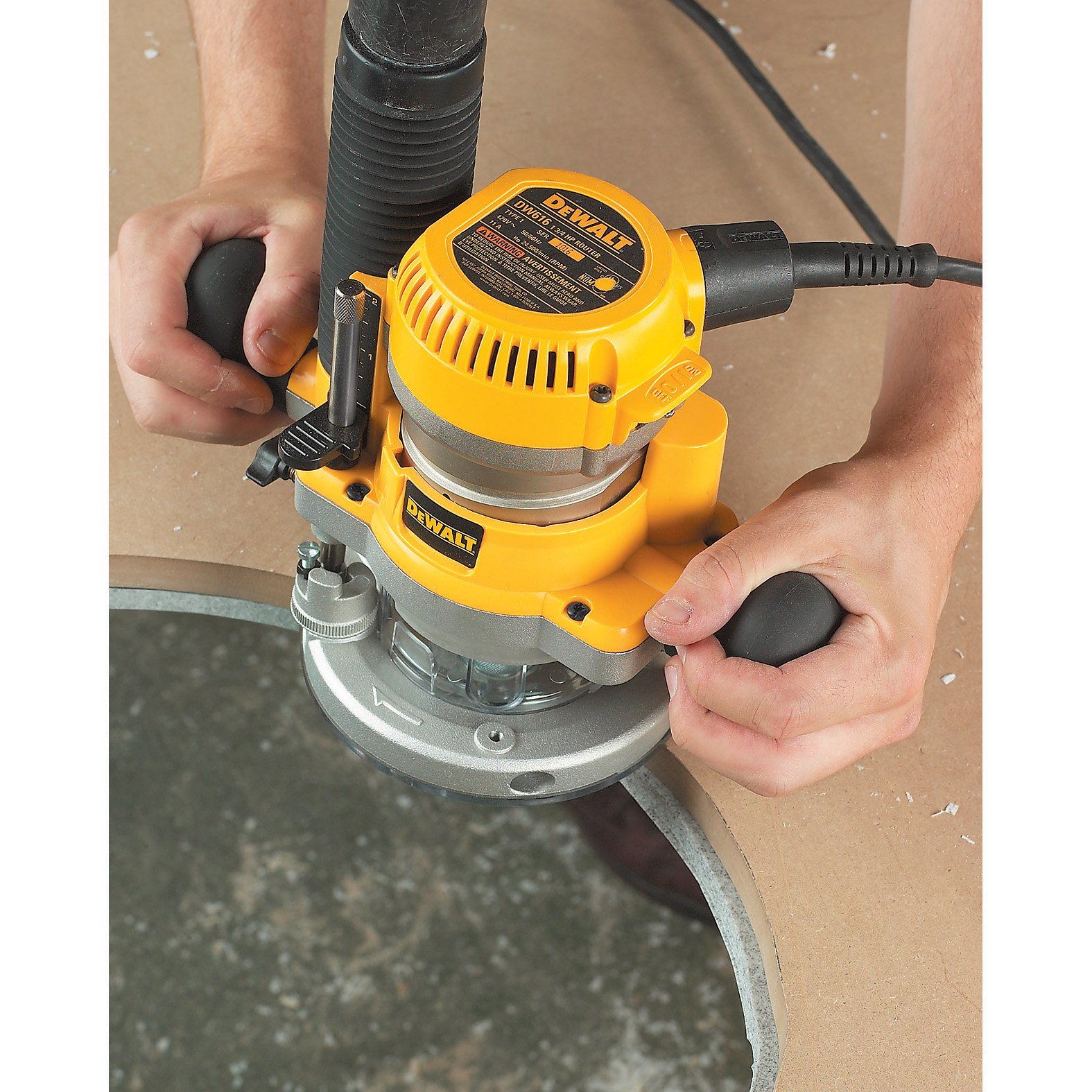

The DEWALT DW6182 plunge router base offers precise depth control, smooth action, and through-column dust collection for DW616 and DW618 series motor packs.
Pair withDEWALT DW6184 Fixed Router Base for DW616/DW618 Routers$37.50
Categories : tools
SKU : WOR-TOO-659
Share This:

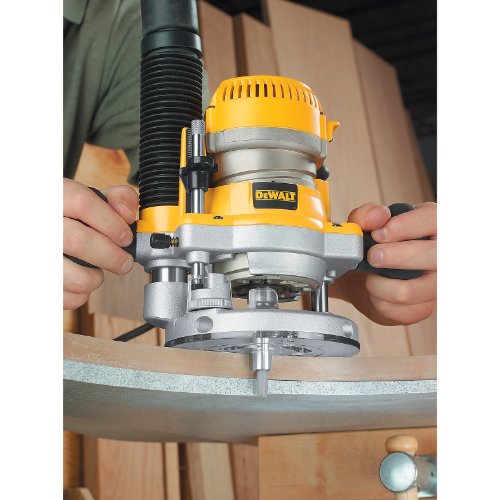

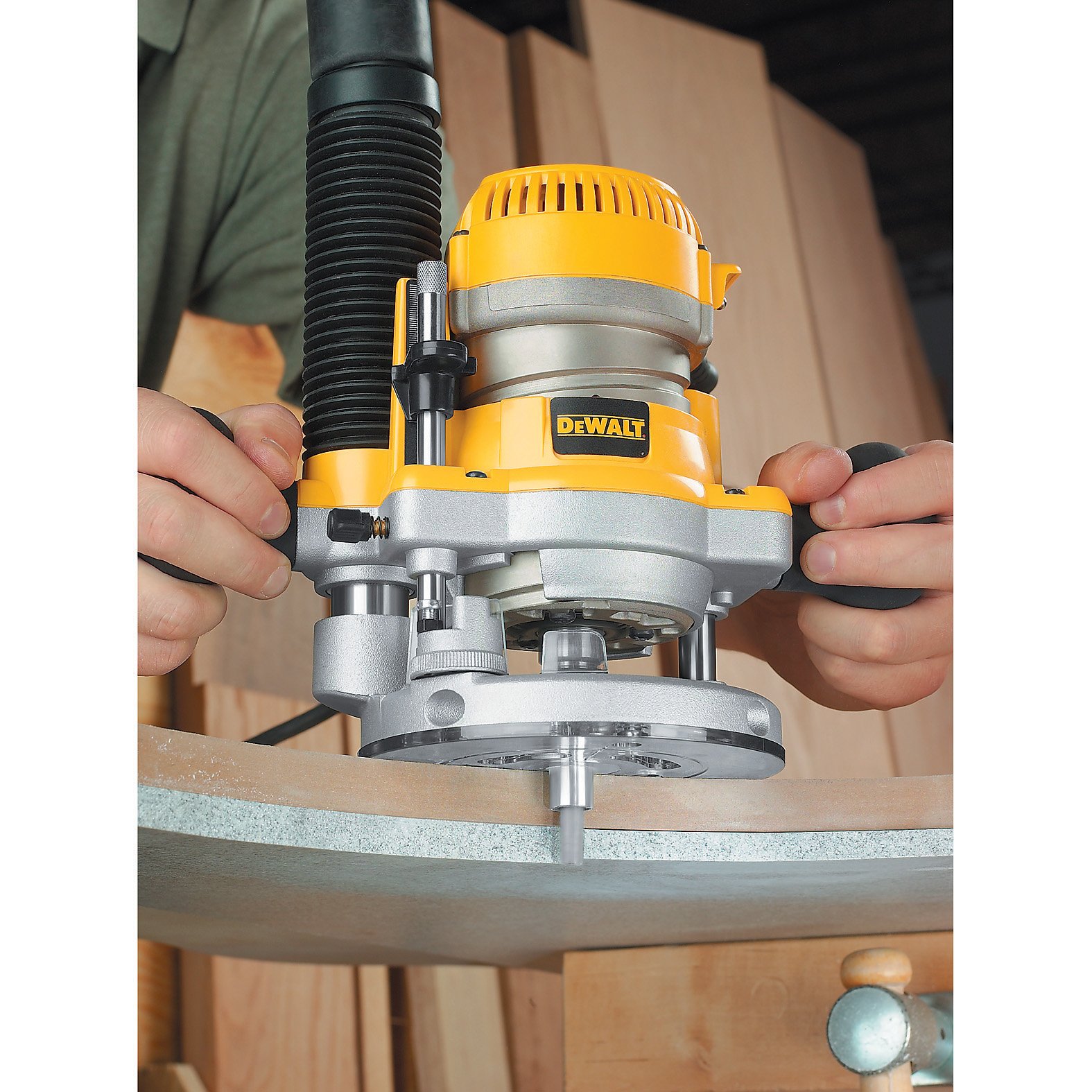

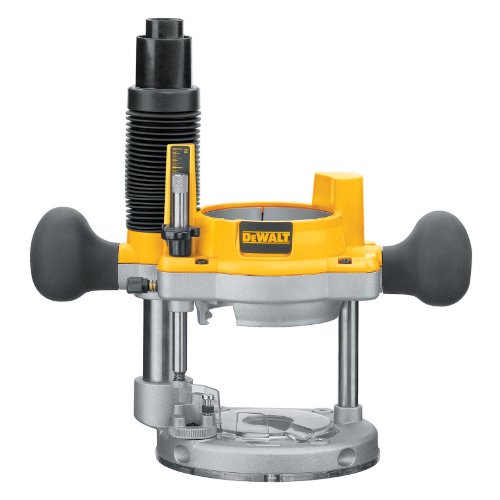

The DEWALT DW6182 plunge base turns your DW616 or DW618 router motor into a versatile plunge router. It features a tool-free steel motor cam lock that makes depth adjustment and base changes quick and secure. The precision-machined brass bushings and case-hardened steel guide rods deliver a smooth, accurate plunge stroke, so you get clean, controlled cuts for mortises, hinges, and pattern work.
One standout feature is the integral through-column dust collection system. It captures up to 95% of chips and dust before they reach the line of cut, which improves visibility and keeps your work area cleaner. The clear Lexan sub-base is impact-resistant and lets you see the bit, while accepting standard template guide bushings for template-guided routing.
If the plunge action ever feels sticky, simple maintenance will restore it. Remove the motor, clean the guide rods and brass bushings with a soft, dry cloth, and apply a light coat of silicone or paste wax to the rods. Avoid using petroleum-based lubricants, as they attract dust. This keeps the plunge smooth and accurate. The steel motor cam lock does not require lubrication—just keep it free of debris.
The turret depth stop with six preset positions gives you total control over multiple plunge depths without resetting. The fine depth adjustment knob allows micro-tuning, making it easy to dial in exactly 1/16-inch depths for hinge mortises. Rubber overmolded handles and a low center of gravity reduce fatigue and improve balance during extended work.
Whether you're routing dovetail joints, box joints, or trimming laminates, the DW6182 delivers the performance you need from a professional plunge base.
Tool-free steel cam lock for quick depth changes and base swaps
Precision brass bushings and hardened steel rods for smooth plunge
Integral dust collection captures 95% of chips for better visibility
Clear Lexan sub-base with template guide compatibility
Rubber overmolded handles reduce fatigue during extended work
Model: DW6182
Weight: 4.6 lb / 2.1 kg
Material: Aluminum base with Lexan sub-base
Dimensions: 8 x 7 x 6 in / 20.3 x 17.8 x 15.2 cm
Product Type: Plunge Router Base
Compatibility: DEWALT DW616, DW618 series router motors
Plunge Stroke: 2" (50.8 mm)
Dust Collection: Through-column, 95% efficiency
Seller: Workbench World
MPN: DW6182
The DW6182 is the companion base that makes your existing DEWALT router motor a true plunge router. It's perfect for cutting hinge mortises, planning shelf pins, and creating joinery. The integrated dust collection not only keeps your work area clean, but also lets you see the router bit at all times, improving cut quality.
Many plunge bases use plastic bushings that wear out quickly. DEWALT chose precision brass bushings and case-hardened steel rods to ensure the mechanism stays smooth and accurate for years. If you notice the plunge action becoming rough, cleaning and a touch of wax will bring it back to factory feel.
Switch between the fixed base and this plunge base in seconds with the tool-free cam lock. The same router motor works in both, so you don't need to buy a separate tool. The DW6182 also includes a depth-turret with 6 stops, ideal for repetitive operations like repeated mortising or shelf pin holes.

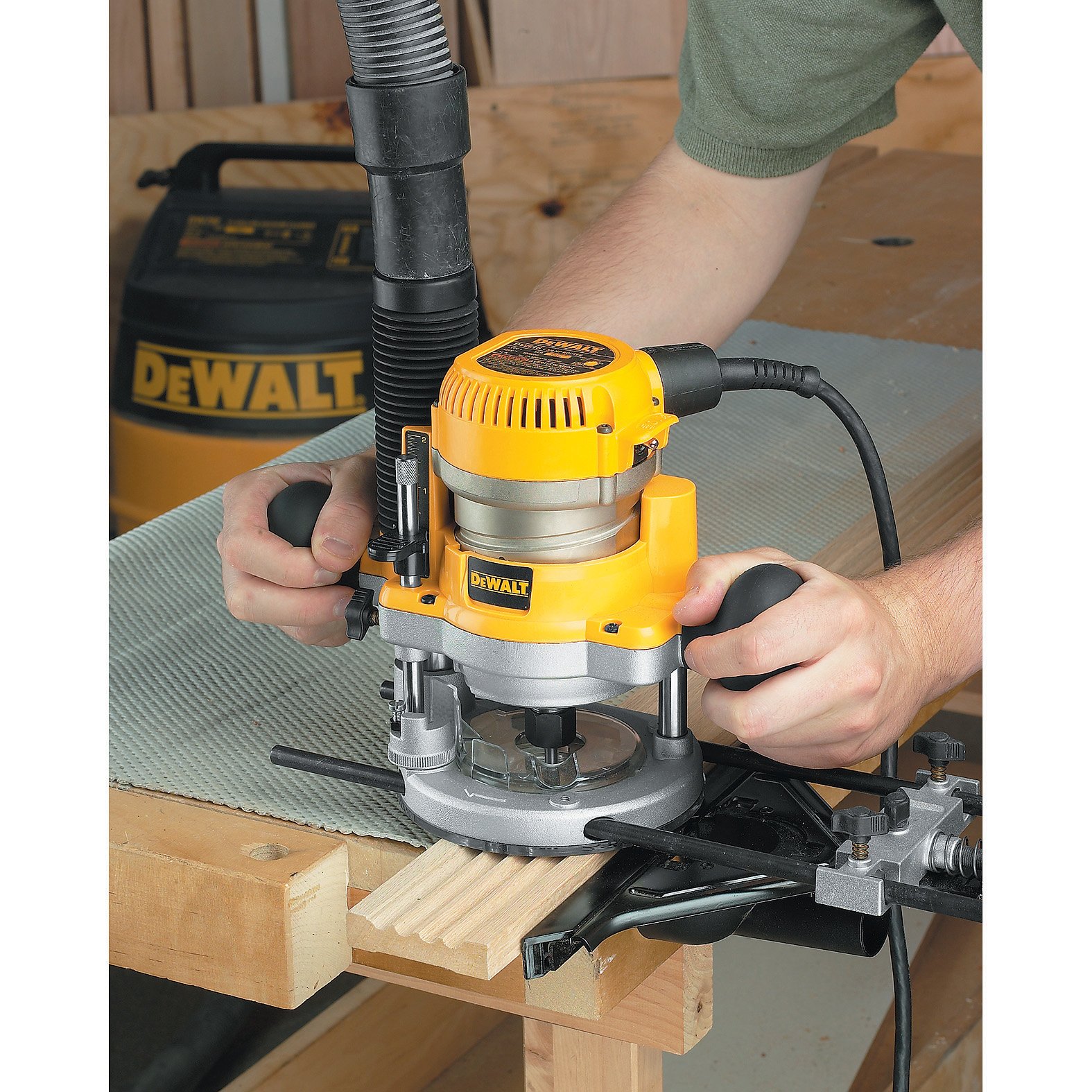

The through-column dust port connects to your shop vacuum and routes chips away from the cut. This improves visibility and reduces cleanup time. The dust port is 1-1/4-inch ID, compatible with most vacuum hoses.
First, remove the motor and clean the guide rods and brass bushings with a dry cloth. Then apply a very light coat of silicone or paste wax to the rods. This restores smooth, consistent plunging. Avoid greasy oils that attract dust.
Yes, the clear Lexan sub-base is compatible with standard 1-3/16-inch and 2-inch template guide bushings. You can follow templates for hinge mortises, shelf pin holes, and other repetitive cuts.
It fits DEWALT DW616 and DW618 series router motors, including the DW616, DW616P, DW618, and DW618M. The same motor also works with the fixed base for edge routing.
The plunge stroke is 2 inches, which is enough for mortising, Dado cuts, and raised panels in most applications. You can adjust depth using the turret stop or the fine-depth knob.

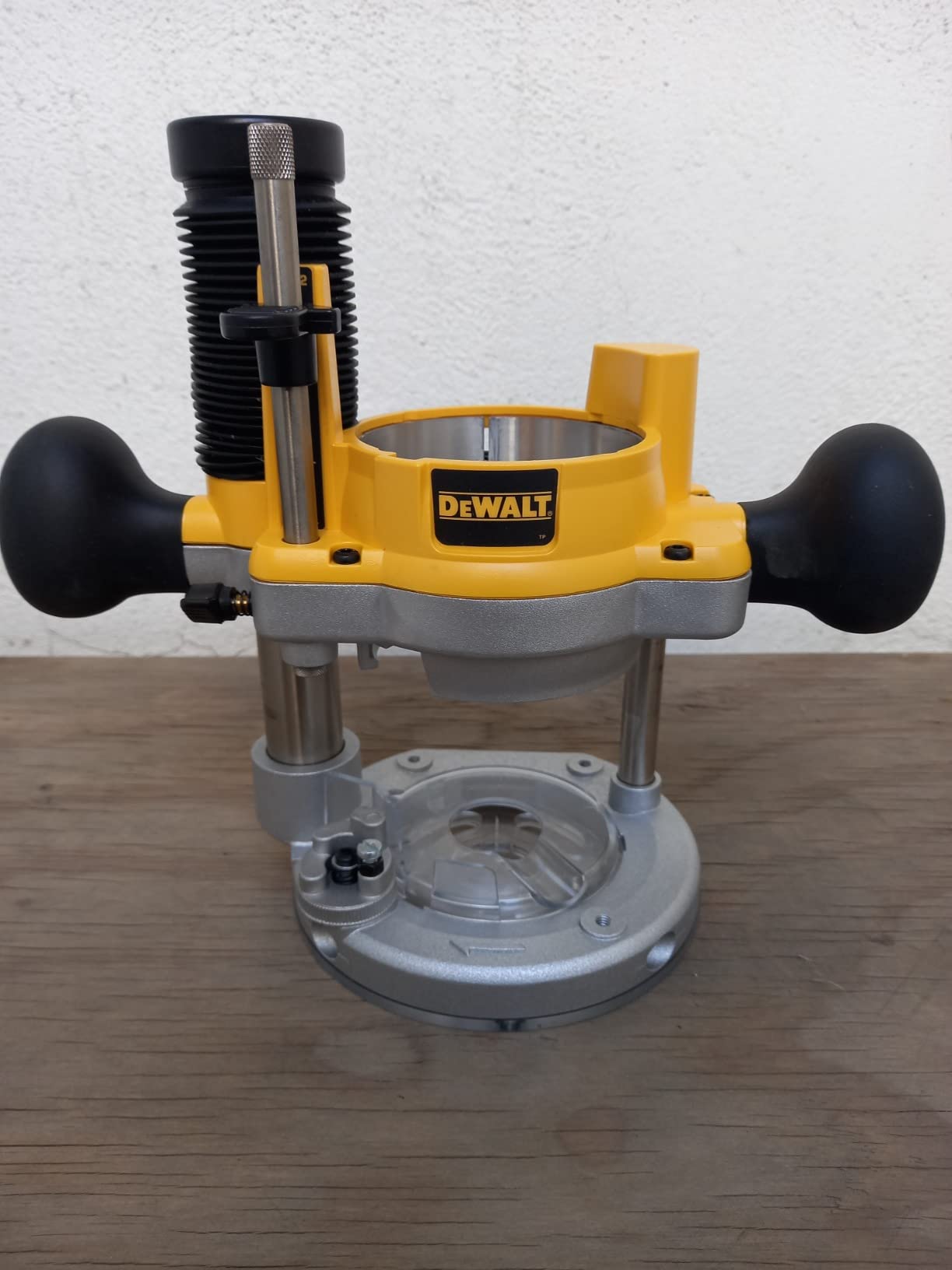

Bought this base to go with my DW618 motor. Plunge action is smooth and the depth stop is accurate. Great addition.

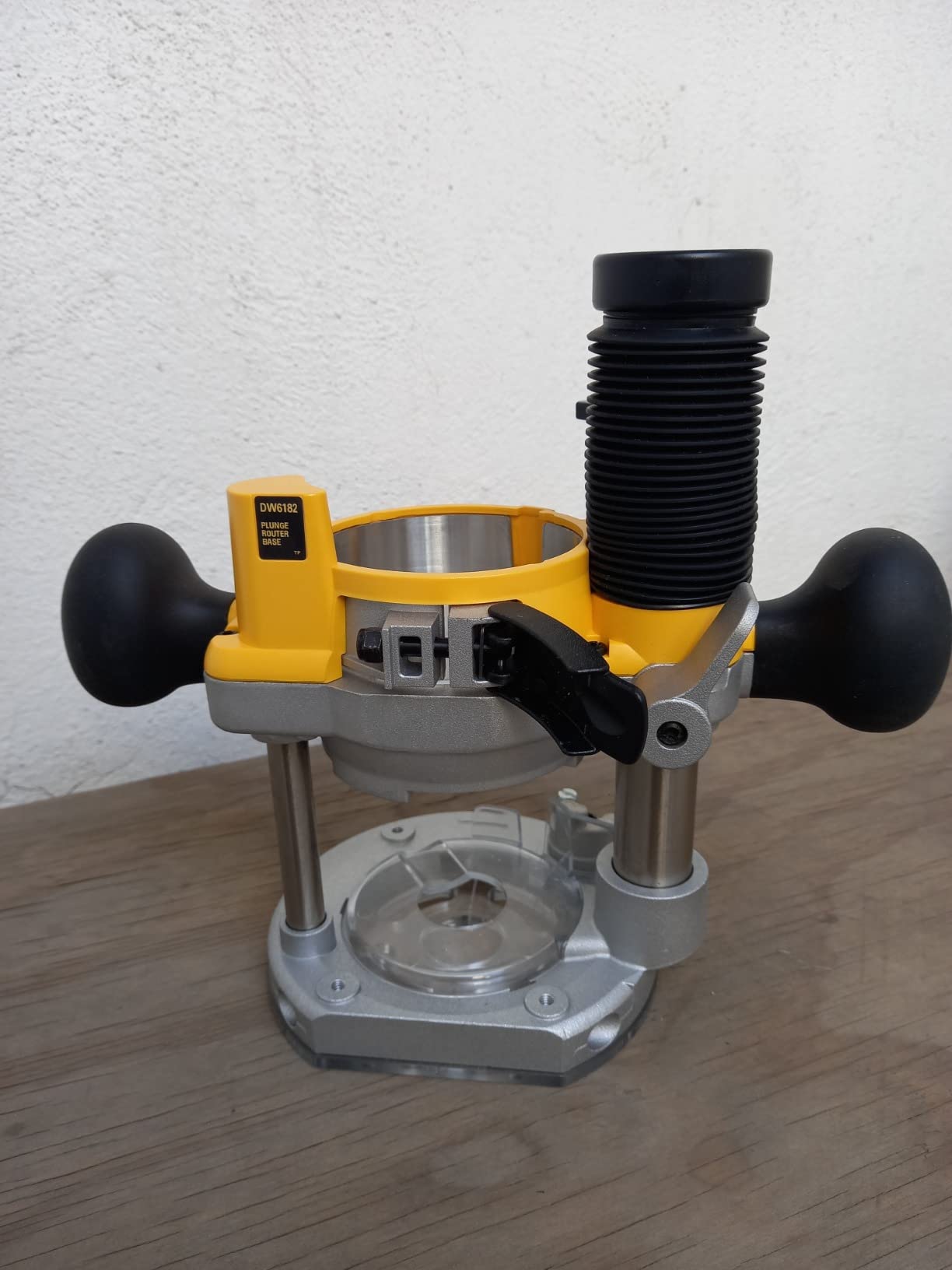

This base transformed my old router. The dust collection is a game changer. I can see my work now.
I've owned many router bases over the years and this one is top notch. The through-column dust collection really keeps the dust down. The plunge action is buttery smooth without any binding. The depth adjustment is precise and easy to lock. It's a bit heavy, but that helps with stability. The micro-adjustment feature is handy for fine tuning. I'm very satisfied with it.

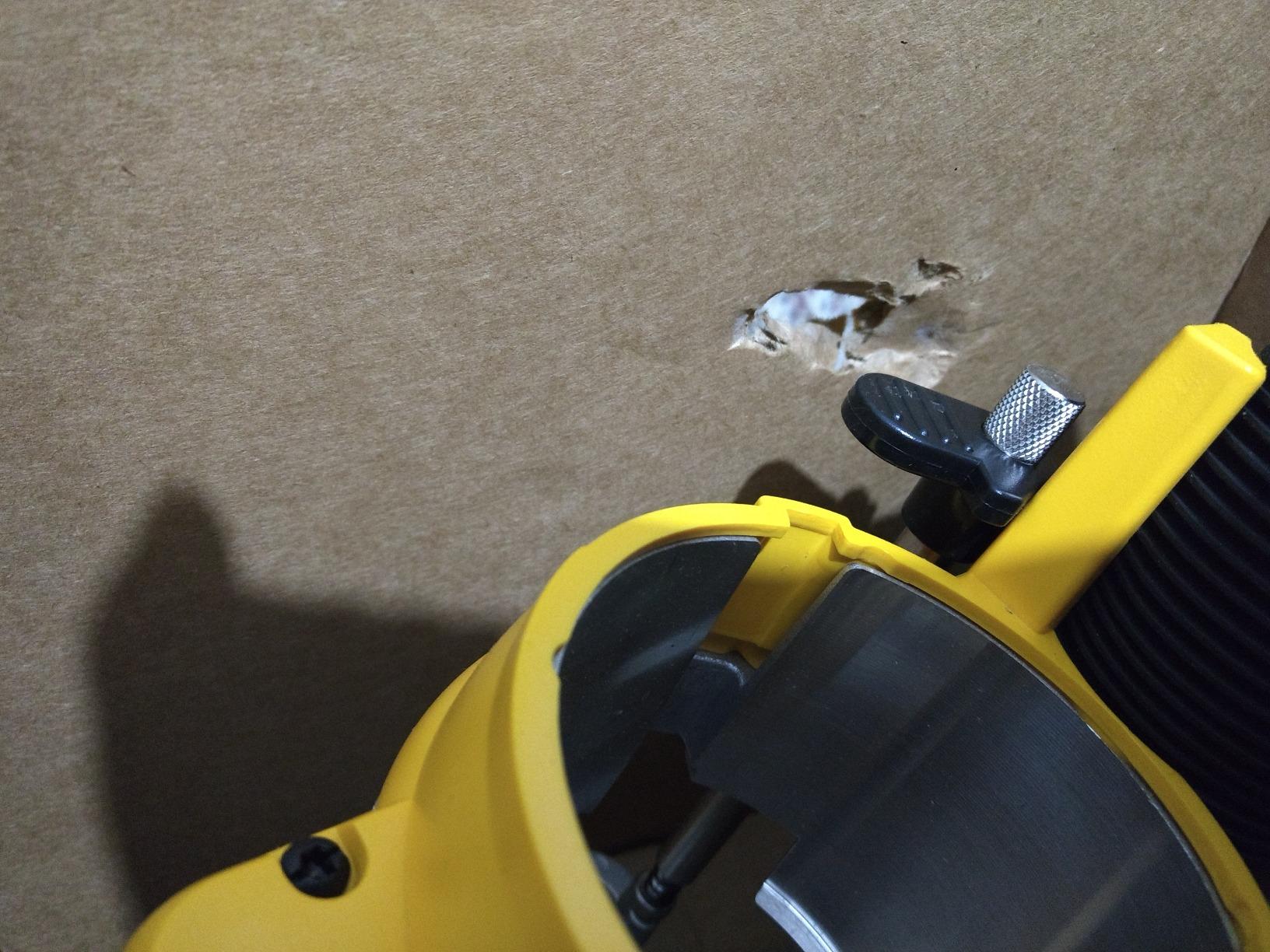

Simple to use. The depth stops are clear. It fit my DW618 motor without any issues.

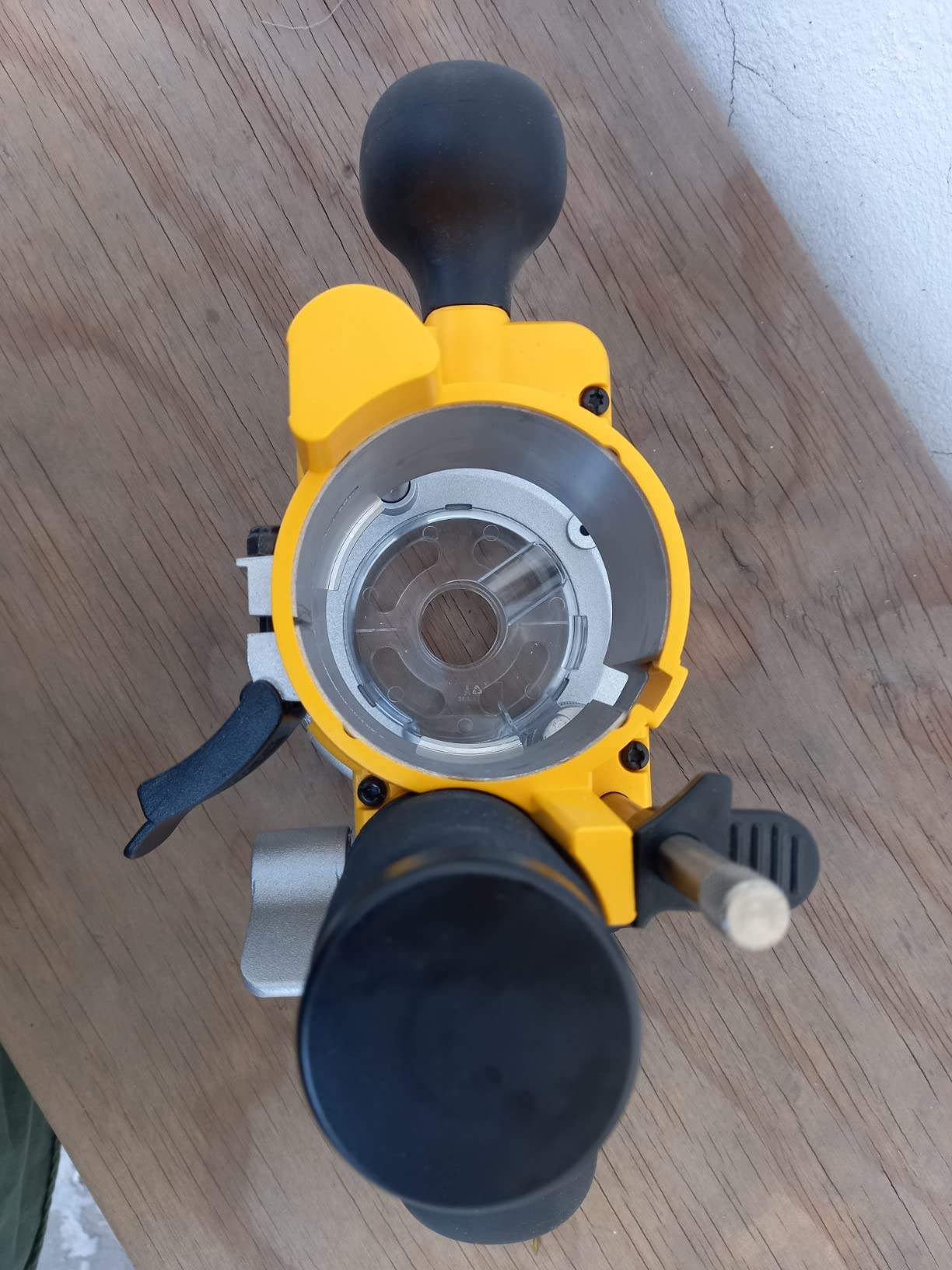

Nice base, but the plunge springs are a bit weak. Otherwise, it does the job well.

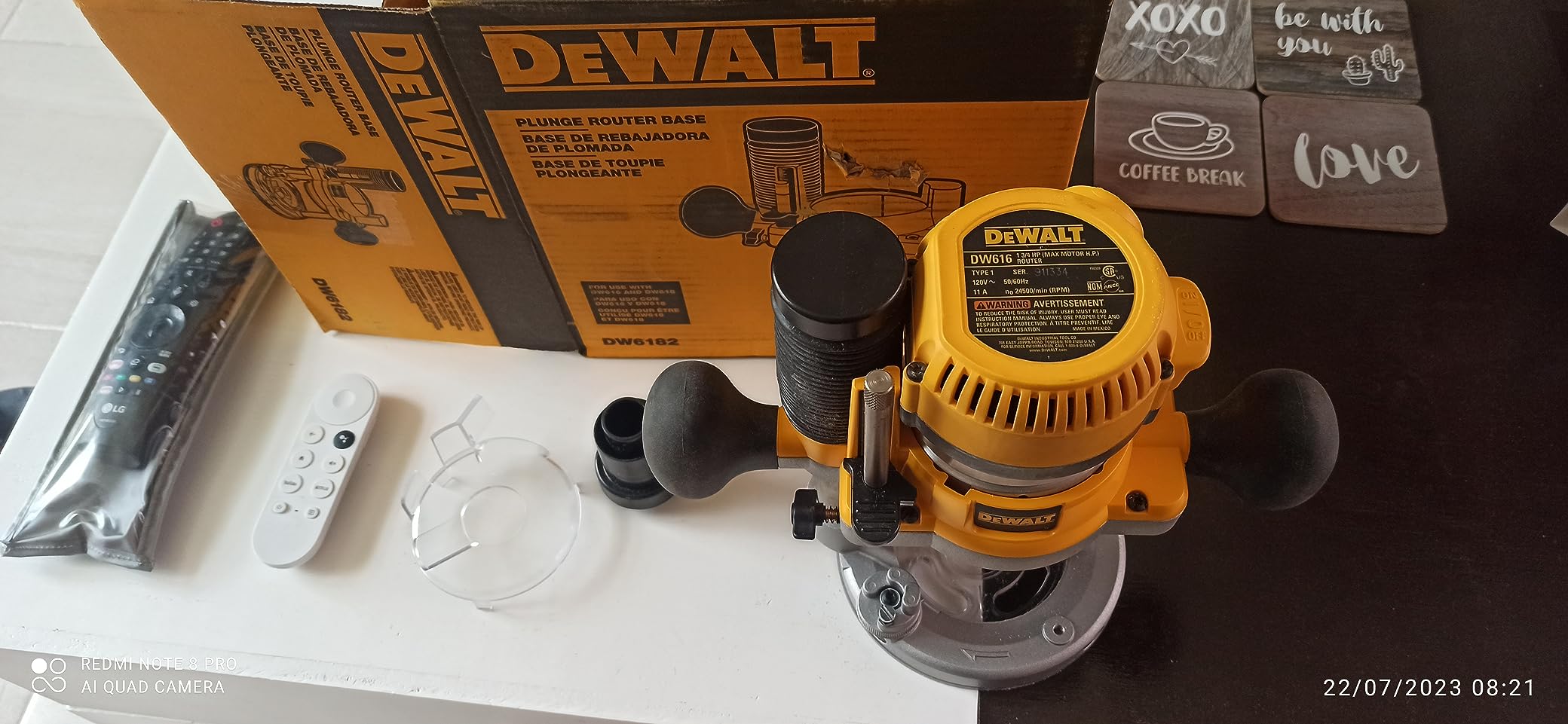

Very smooth plunge. No wobble. Exactly what I needed.

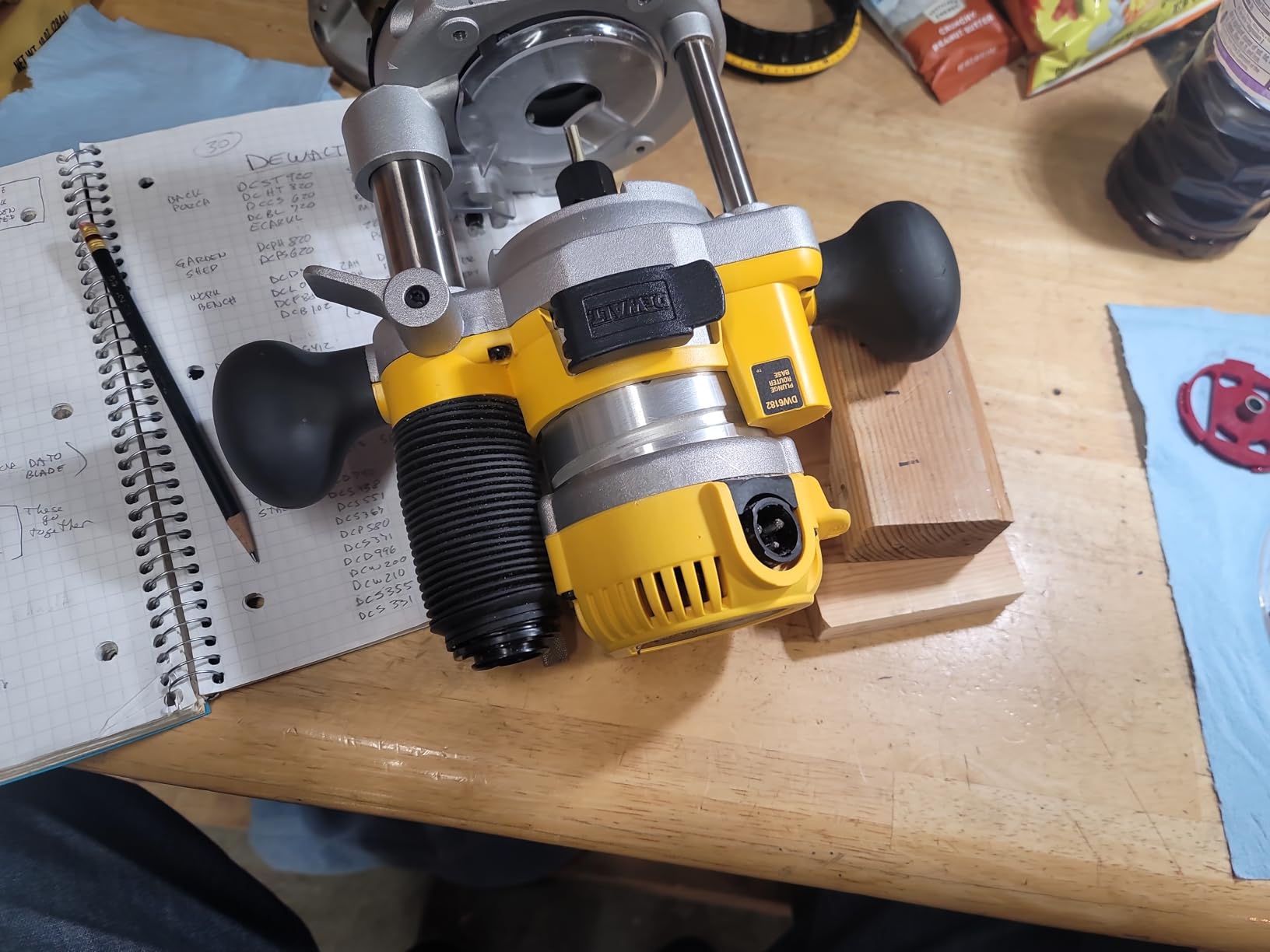

Good quality, but the handles are not as comfortable as I'd like. I wrap them with tape.

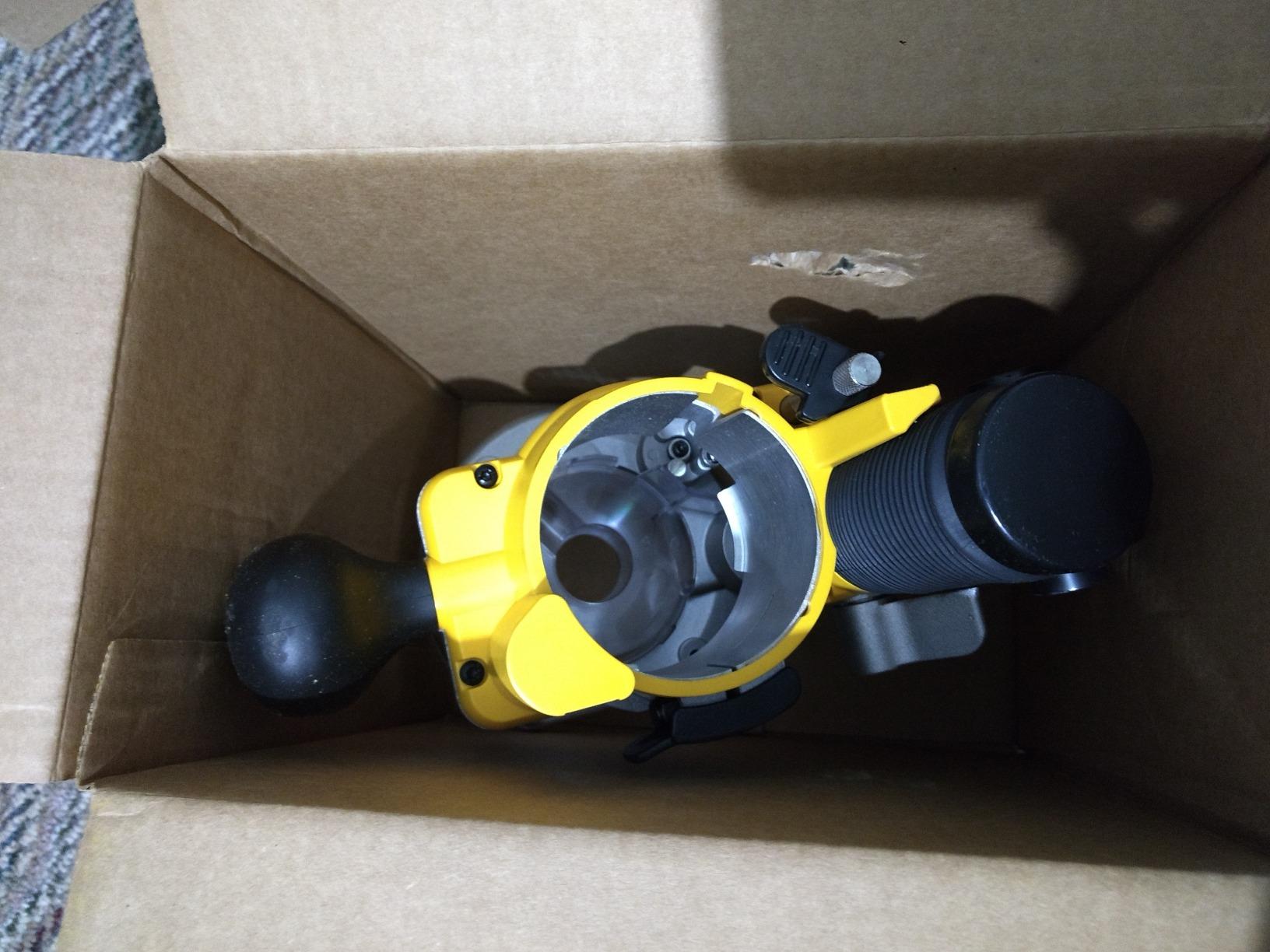

I use it for dovetails and it's accurate. The dust port connects to my vac easily.
This is my second one; I use them both in a router table. Perfect fit and finish.
Replaced a worn-out base on my DW618. This one feels much more solid. The adjustment is smooth.
Works perfectly.
It's a good base but the instructions are a little sparse. Figuring it out wasn't hard though.
