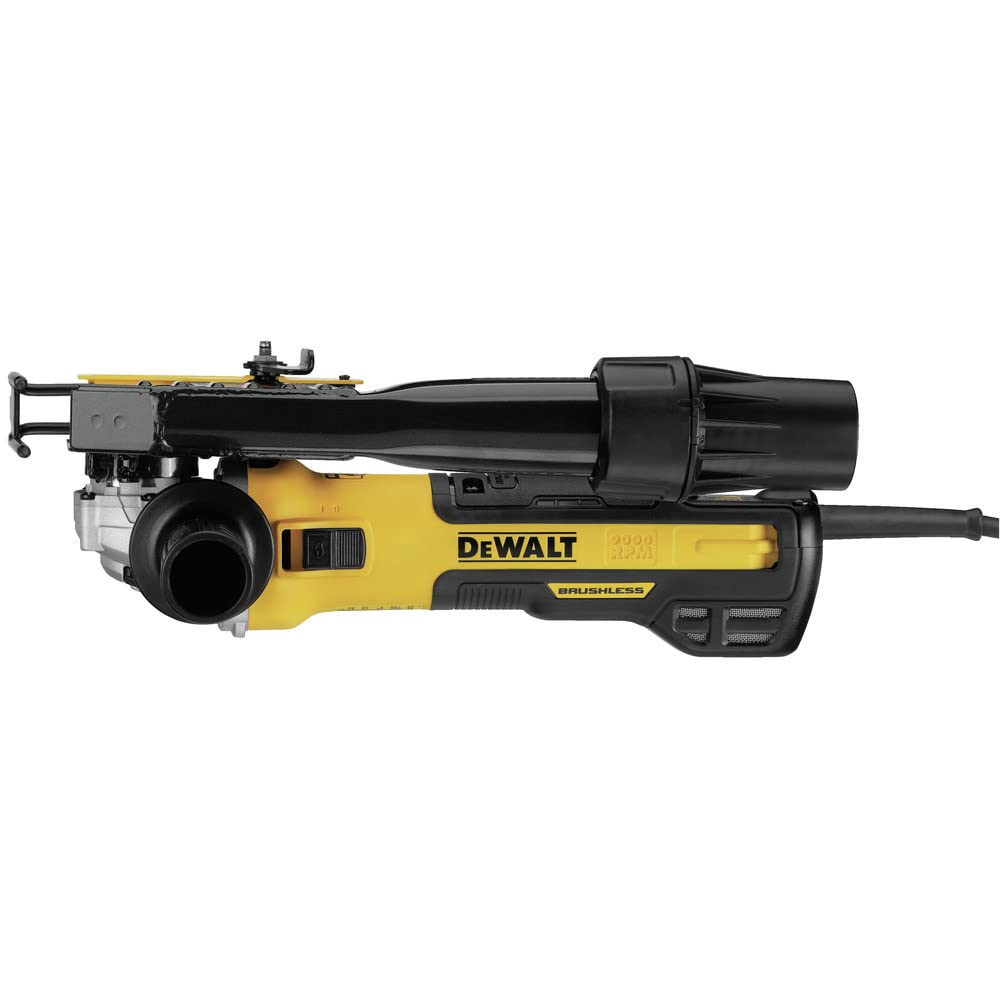

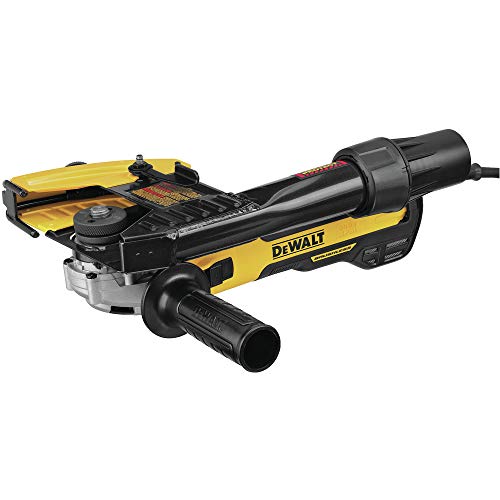

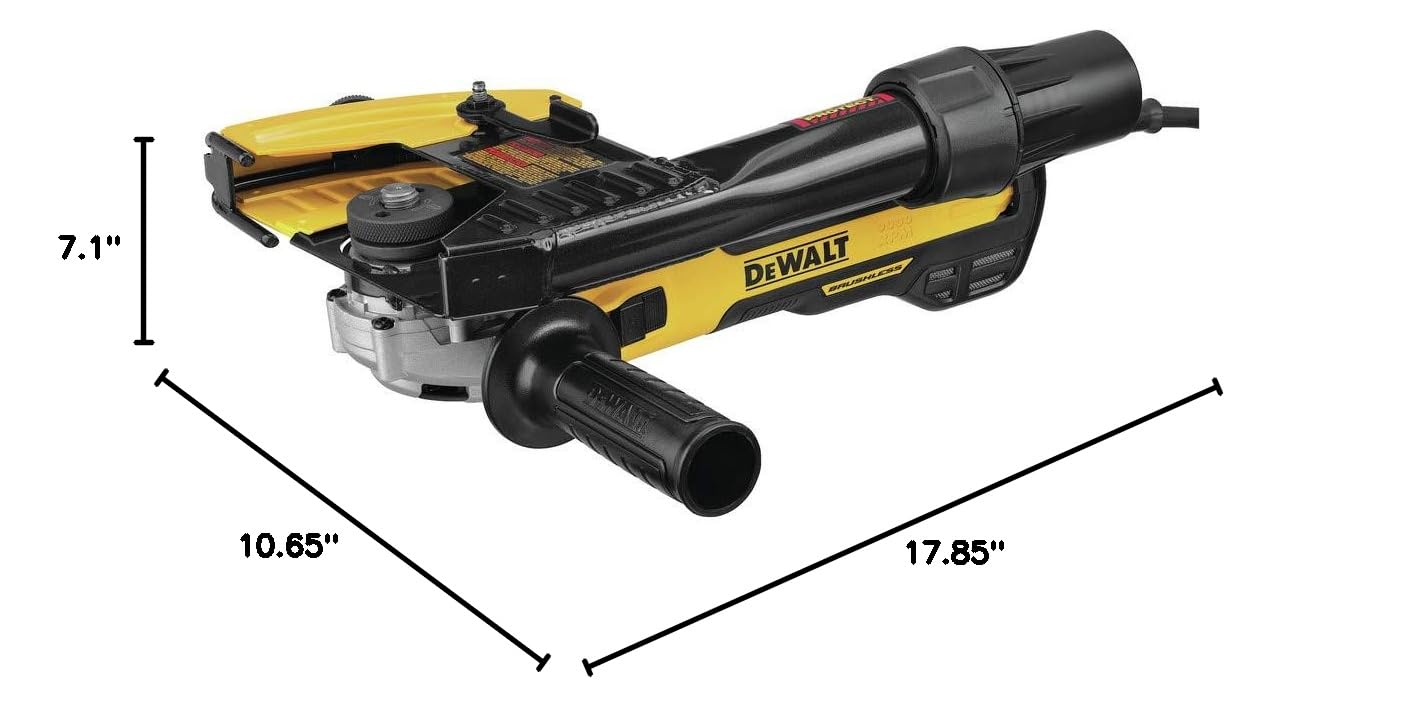

DEWALT DWE46202 5/6-Inch Brushless Small Angle Grinder with Tuckpointing Shroud

The DEWALT DWE46202 is a brushless small angle grinder designed specifically for tuckpointing and concrete work. Its 5-inch / 6-inch wheel capacity, slide switch, and integrated tuckpointing shroud make it a dependable choice for contractors and serious DIYers cutting mortar joints and channels.

DEWALT DWE46202 Brushless Tuckpointing Grinder with Dust Shroud

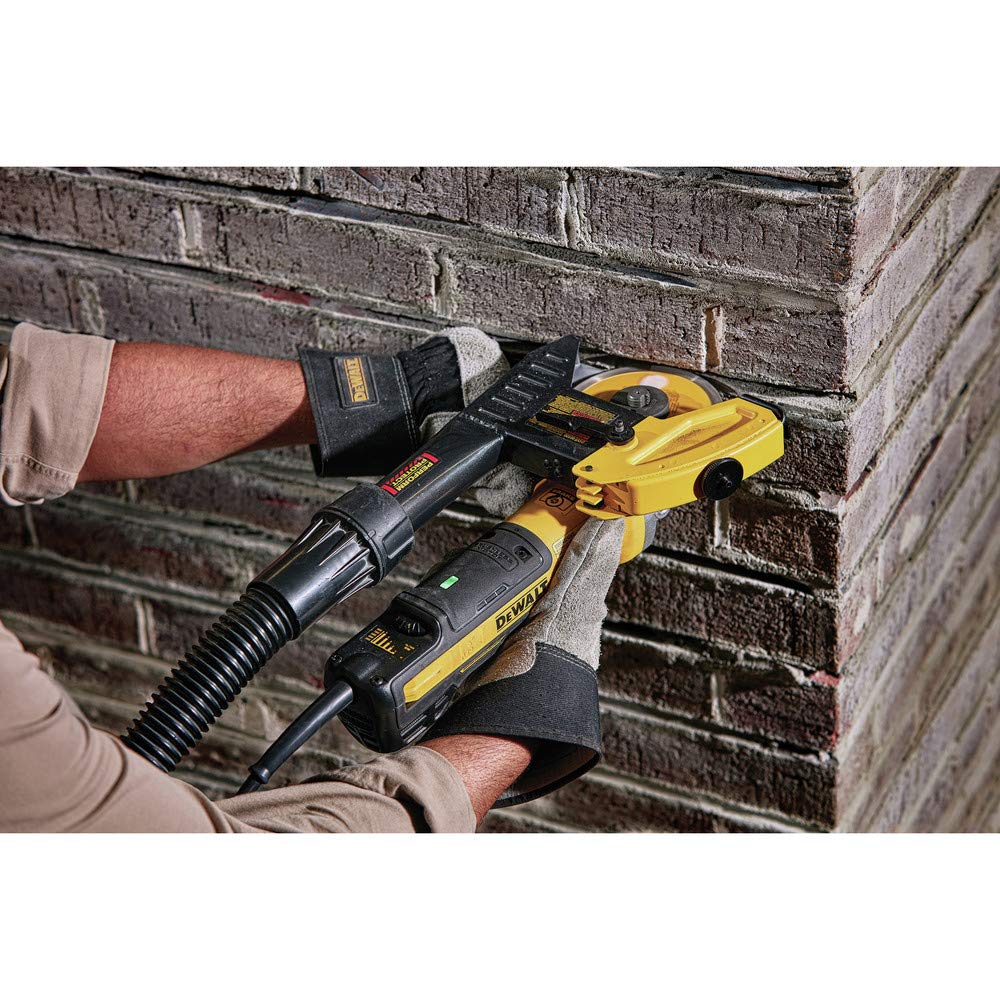

Whether repairing brickwork or removing old mortar, the DWE46202 is ready. The brushless motor delivers efficient power without brush replacements, while the tuckpointing shroud captures dust at the blade and helps direct it to your dust extractor. That means cleaner joints and less airborne silica on the job.

Dust Shroud Compatibility and Setup

The included tuckpointing shroud is designed to fit the DWE46202 without adapters, and it connects to standard 35 mm dust extractor hoses. If you're using a shop vacuum with a smaller hose, add a compatible reducer sleeve. The shroud's adjustable depth lets you match the cut to the mortar joint, reducing overcutting and dust escape.

Choosing the Right Tuckpointing Wheel

Use a diamond tuckpointing wheel sized for your grinder—typically 5 inches. The DWE46202 accepts both 5-inch and 6-inch wheels, but the shroud is positioned for the blade diameter you select. For deep mortar joints, choose a wheel with sufficient diamond segment height; for thin joints, a thinner blade keeps the cut tight.

Safety Performance: Kickback Brake and E-CLUTCH

When a wheel binds or stalls, the electronic kickback brake engages with force to stop the wheel and shut off the motor, reducing the chance of the grinder jerking. E-CLUTCH monitors wheel resistance and acts to limit torque reaction in bind-up situations. Combined with POWER-LOSS RESET, the DWE46202 keeps you in control on demanding jobs.

Variable Speed for Every Pass

The variable speed trigger lets you match wheel speed to the material. Run lower speeds for precision joint work and higher speeds for faster cutting. Constant-speed electronics help maintain power under load, so the blade doesn't bog down in hard concrete.
