A compact 1-1/4 HP fixed-base router with variable speed, soft start, and dual LEDs for precise visibility on every cut.
Categories : tools
SKU : WOR-TOO-114
Share This:

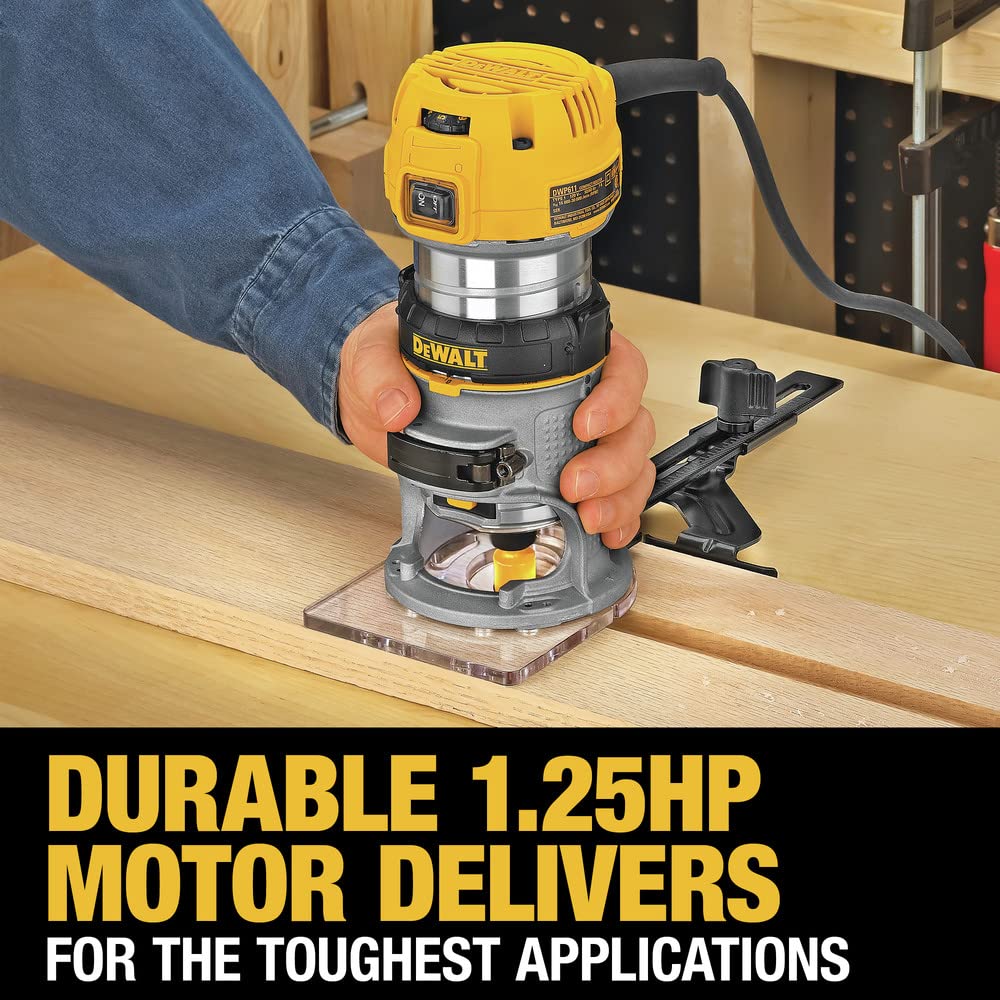

The DEWALT DWP611 is a 1-1/4 HP fixed-base router that delivers precision and control for trim work, edge profiling, and joinery. Its compact size makes it easy to handle, while the powerful 7.7-amp motor carries even demanding bits.

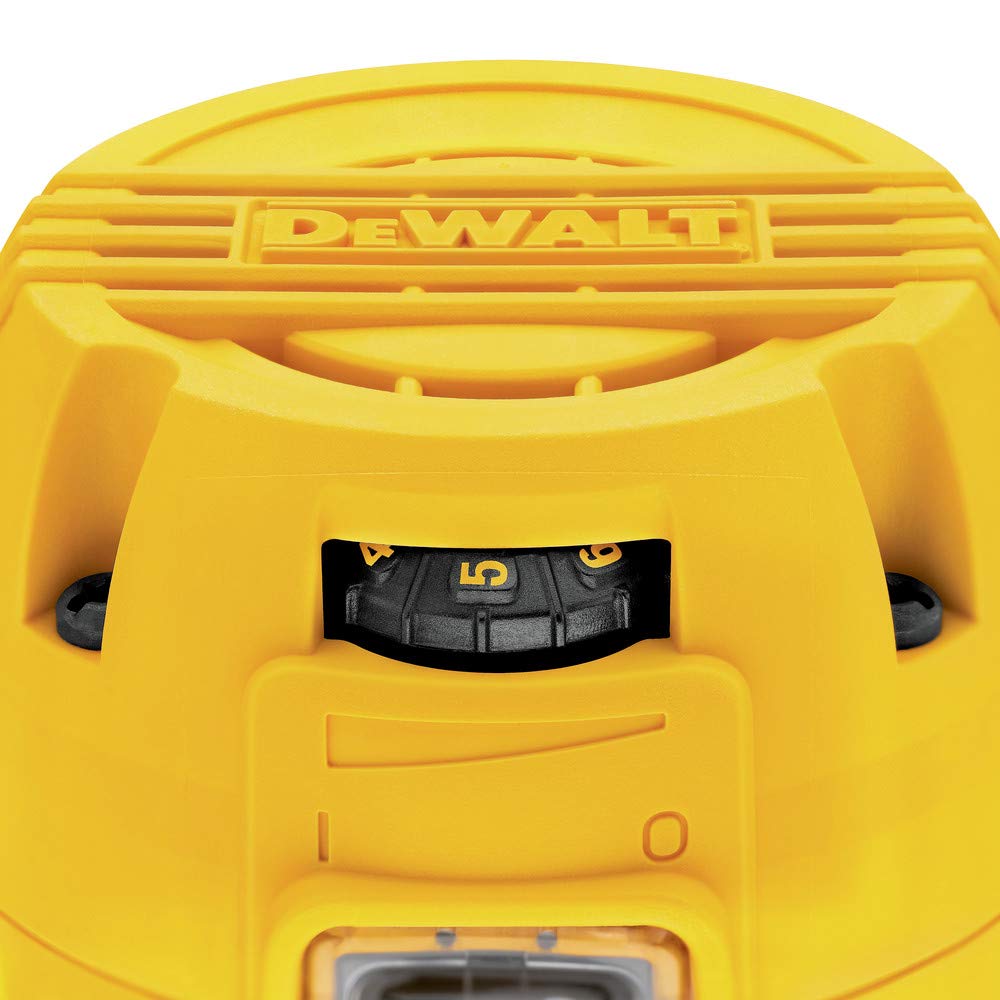

This router features a soft-start motor with electronic feedback, so the speed stays consistent even under load. The variable speed trigger lets you dial in between 16,000 and 27,000 RPM to match the bit and material.

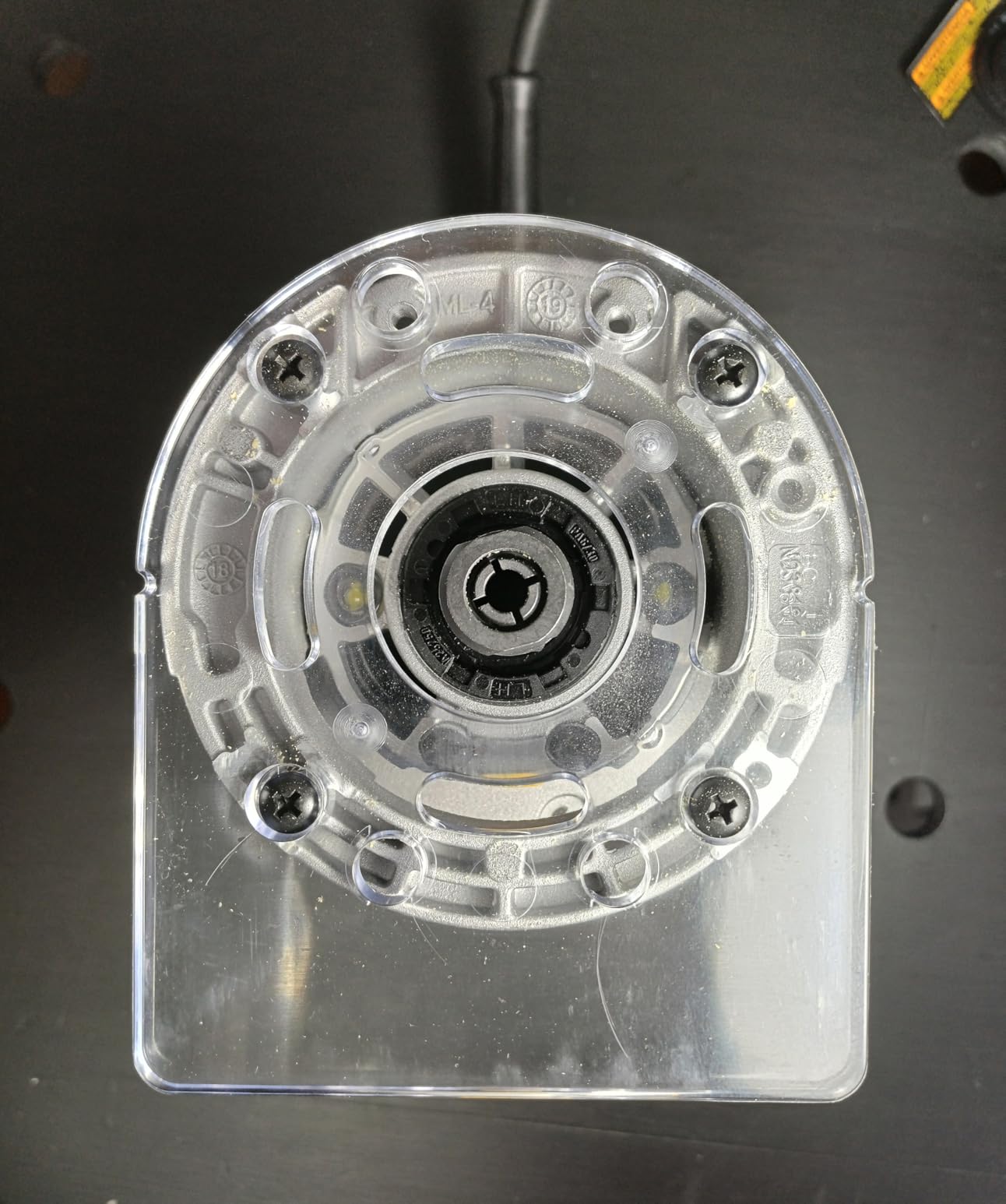

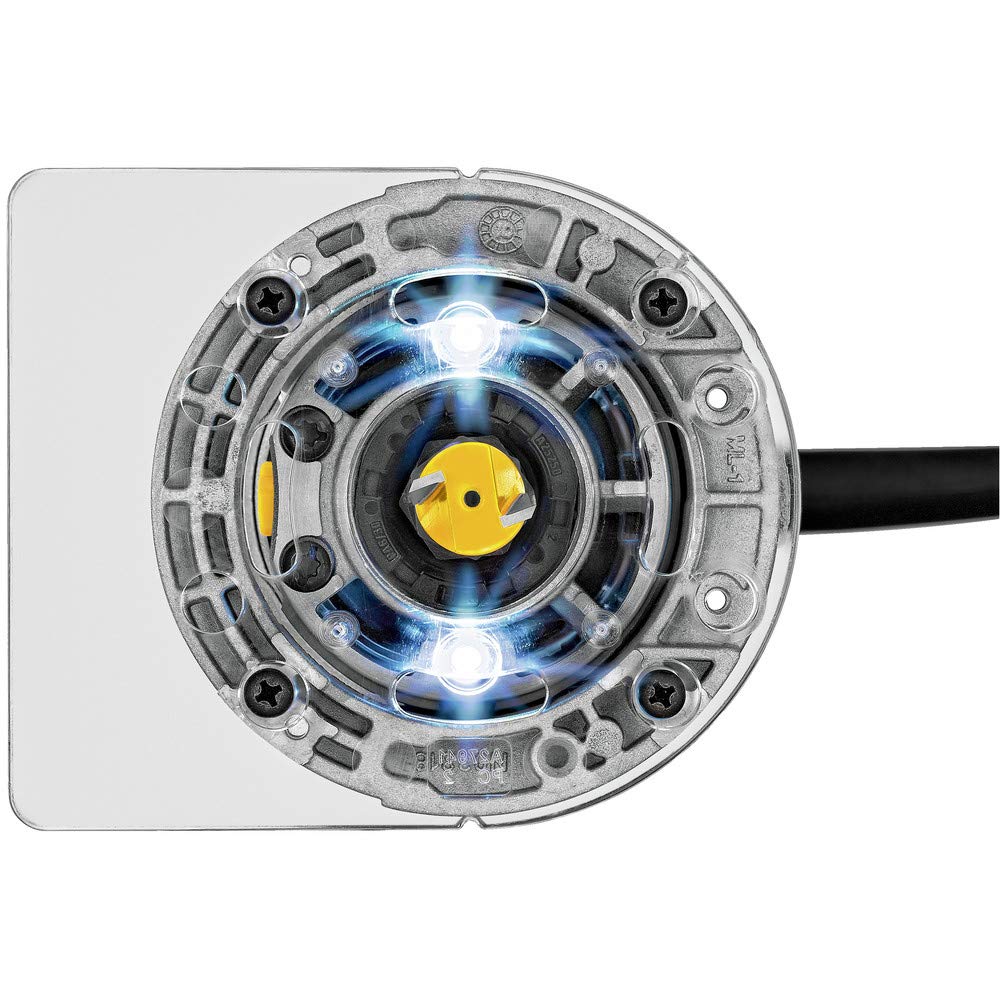

Dual LEDs and a clear sub-base illuminate the work area, helping you see exactly where you're cutting. This is a huge advantage when working on dark woods or in tight corners.
The large spindle lock button, multiple shaft-lock detents, and an adjustment ring that allows depth changes to within 1/64 inch make setup quick and accurate. The clamping mechanism keeps the motor locked in position, eliminating depth wander.
Occasionally, a router bit can become stuck in the collet. This is usually caused by overtightening or debris. Click below for troubleshooting tips. Our FAQ explains how to free a stuck collet without damaging the tool.
Whether you're installing a laminate countertop or building a custom sign, the DWP611 is a dependable choice.

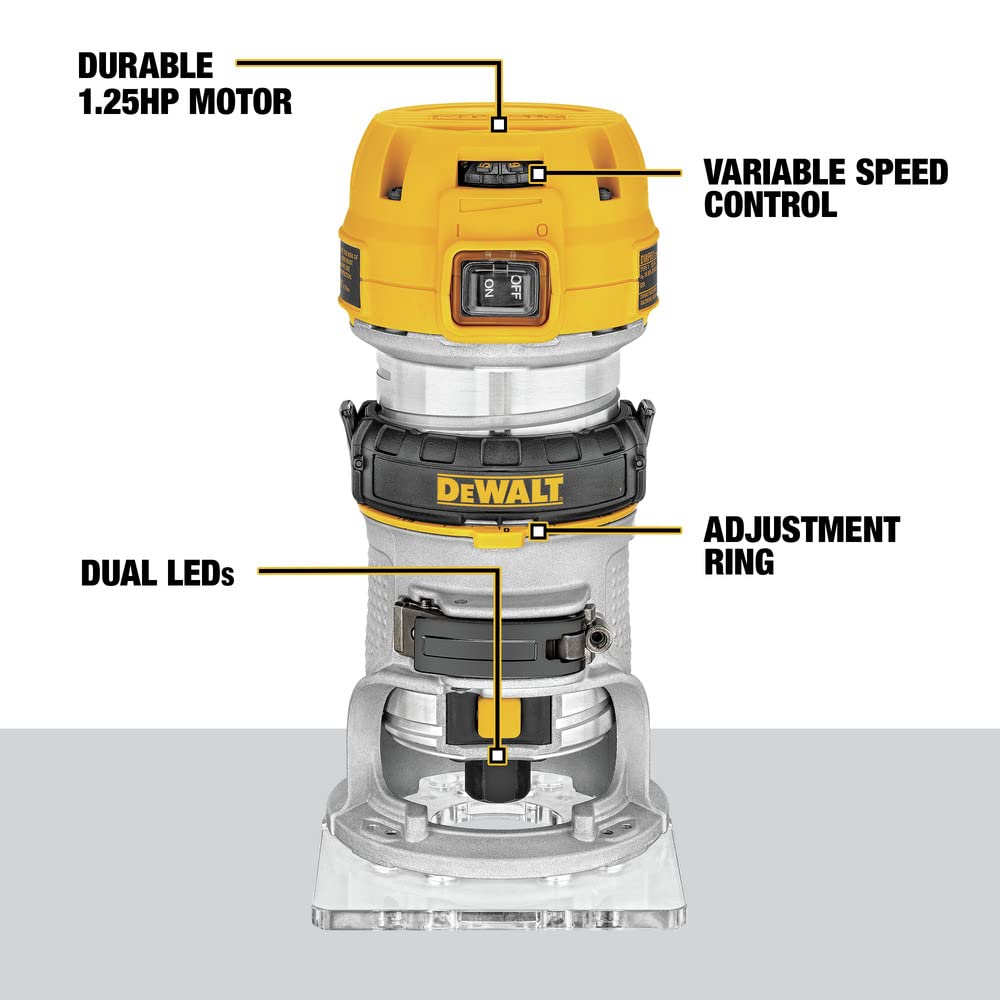

1-1/4 HP Motor: Handles trimming, edging, and joinery with ease.
Variable Speed (16,000–27,000 RPM): Adjust for bit size and material.
Dual LED Lights + Clear Base: See the cut line clearly.
Depth Adjustment Ring: Changes bit depth to 1/64-inch precision.
Model: DWP611
Weight: 3.8 lb / 1.72 kg
Amperage: 7.7 A
Dimensions: 8.2 x 4.5 x 4.1 in / 208 x 114 x 104 mm
Collet Size: 1/4 in / 6.35 mm
Motor Power: 1-1/4 HP
Product Type: Fixed-Base Router
Base Diameter: 4 in / 101.6 mm
No Load Speed: 16,000–27,000 RPM
Plunge Stroke: 1.5 in / 38.1 mm (on fixed base? Actually fixed base, but plunge depth capacity is 2-1/2"? Need to check. Since it's fixed base, the adjustment range is typically 1-5/8")
Seller: Workbench World
MPN: DWP611
Always loosen the collet with the wrenches, not the tool's lock button. Seat the bit fully below the collet's internal shoulder. Wipe a drop of clean oil on the bit shank each time for smooth release.
Use lower speeds (16,000–18,000) for large bits like panel pilot cutters, medium speeds (18,000–24,000) for standard 1/4-inch bits, and high speeds (24,000–27,000) for small bits and soft woods.
Repair professionals and hobbyists alike appreciate this router's comfort and control. Its small footprint lets it work upside down in a table mount for even more versatility.
Turn off and unplug the router. Use the wrenches to lightly tap the collet nut in the tightening direction to break corrosion, then loosen. If the bit is really seized, apply a bit of penetrating oil to the collet and let it sit for 10 minutes. Do not use excessive force or heat.
No, the DWP611 only accepts 1/4-inch shank bits.
The fixed base has an adjustment range of about 1-5/8 inches, enough for most edge work and trimming.
No, but a straight guide is available as an accessory.

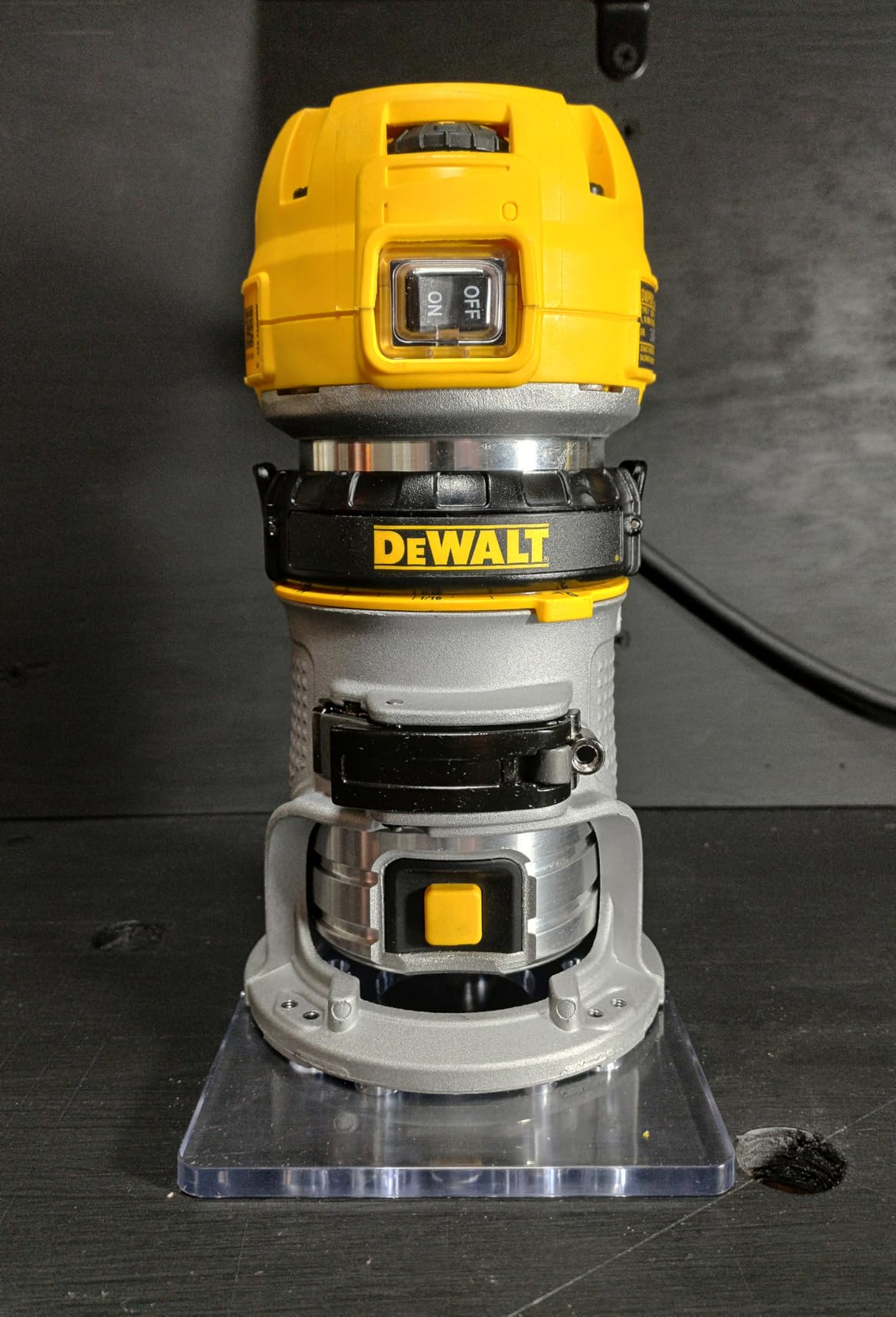

The variable speed is perfect for different bits. It starts smoothly, no kick. The LEDs light up the cut line nicely. It's compact and easy to handle.

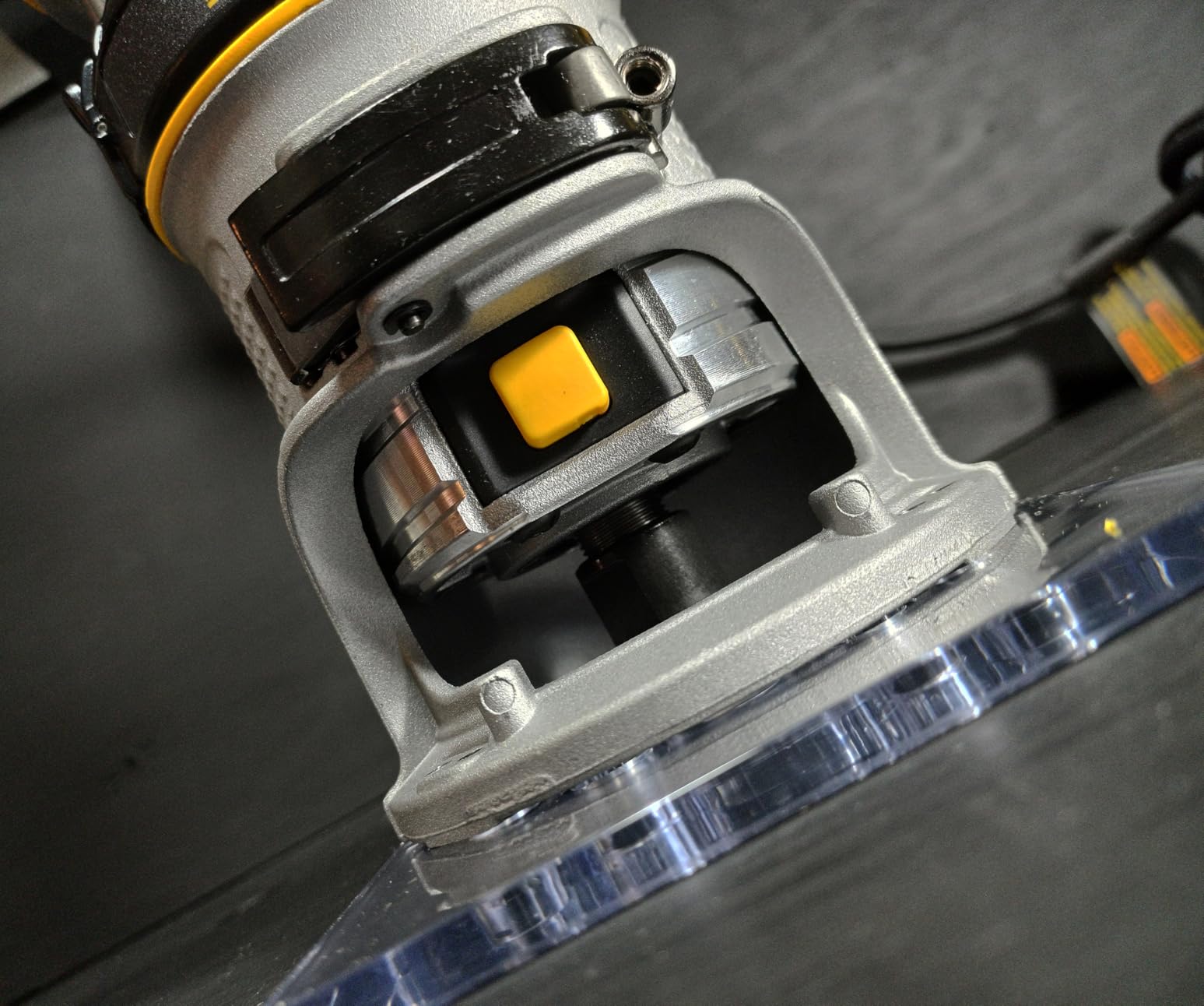

For a compact router, this thing is powerful. I've used it on hardwood and it didn't bog down. The soft start is a nice safety feature. Good value.
Literally works perfectly. My tiny workshop is happy.

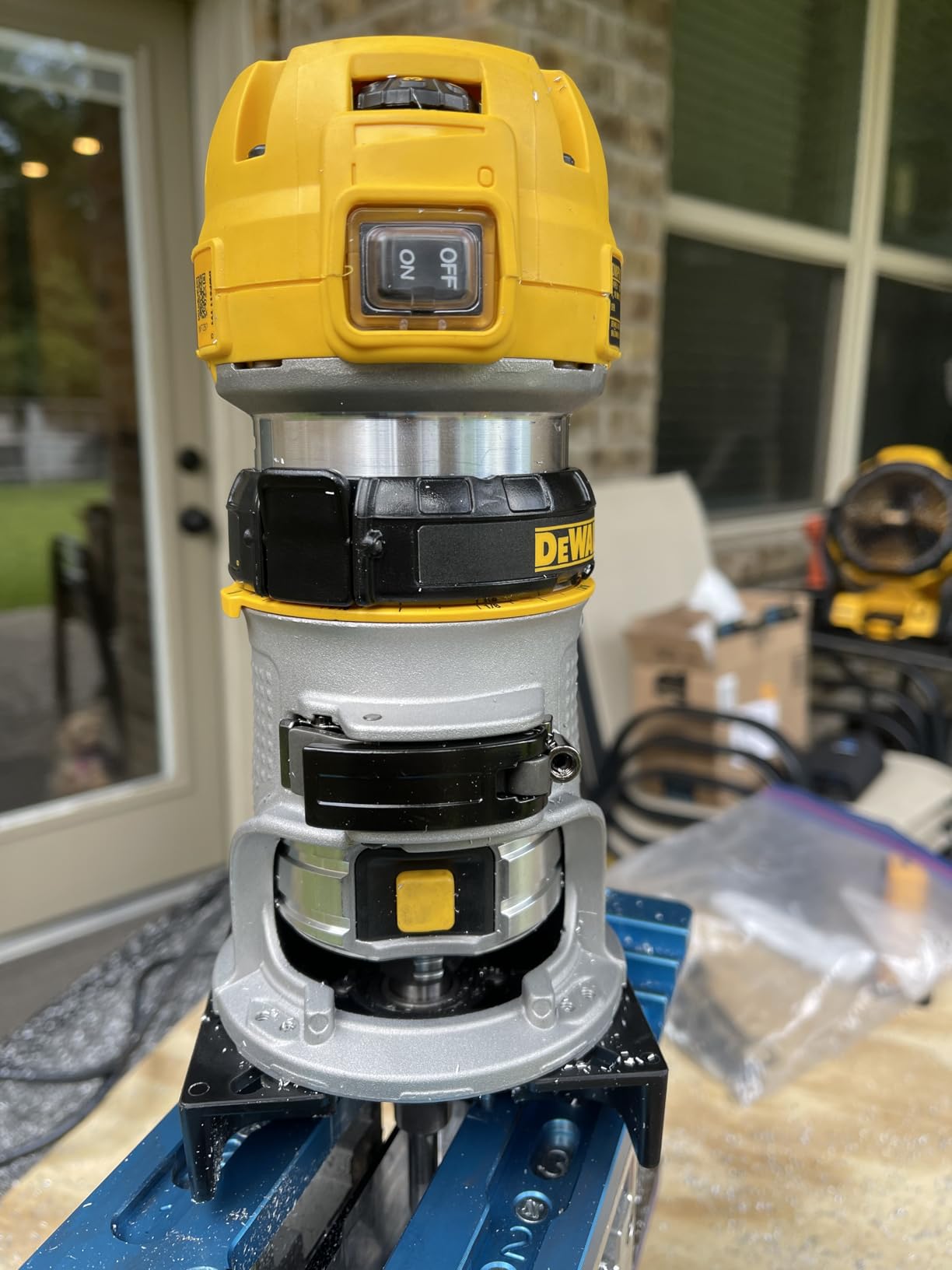

I have been woodworking for over 30 years and this is a dependable router. The base is stable, the motor is smooth, and it's easy to adjust speed. It's my go-to for edge work. I like the LED light too.
