The DEWALT DW616 is a 1-3/4 HP fixed-base router with an 11-amp motor and micro-fine depth adjustment for smooth routing in hardwoods.
Pair withDEWALT DW616K 1-3/4 HP Fixed Base Router Kit, Yellow$74.50
Categories : tools
SKU : WOR-TOO-176
Share This:

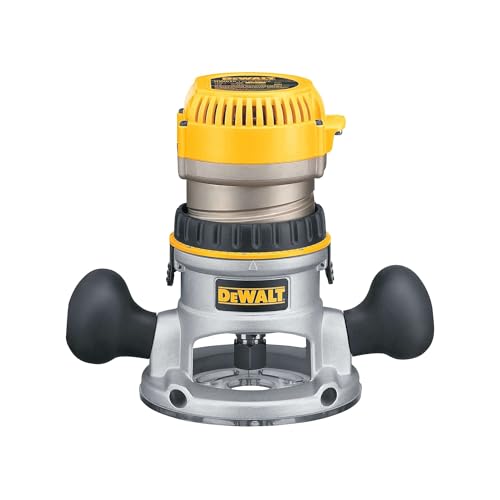

The DEWALT DW616 is a 1-3/4 HP fixed-base router designed for woodworkers who need smooth, accurate cuts in demanding materials. Its 11-amp motor has the power to route through even tough hardwoods without stalling, while the micro-fine depth adjustment ring lets you dial in settings in 1/64-inch increments.
The adjustable, tool-free steel motor cam lock makes depth changes and base changes quick and rock-solid. The quick-release motor latches let you remove the motor pack for fast bit changes or base swaps. Plus, the sub-base concentricity gauge ensures your bit is centered for maximum accuracy.

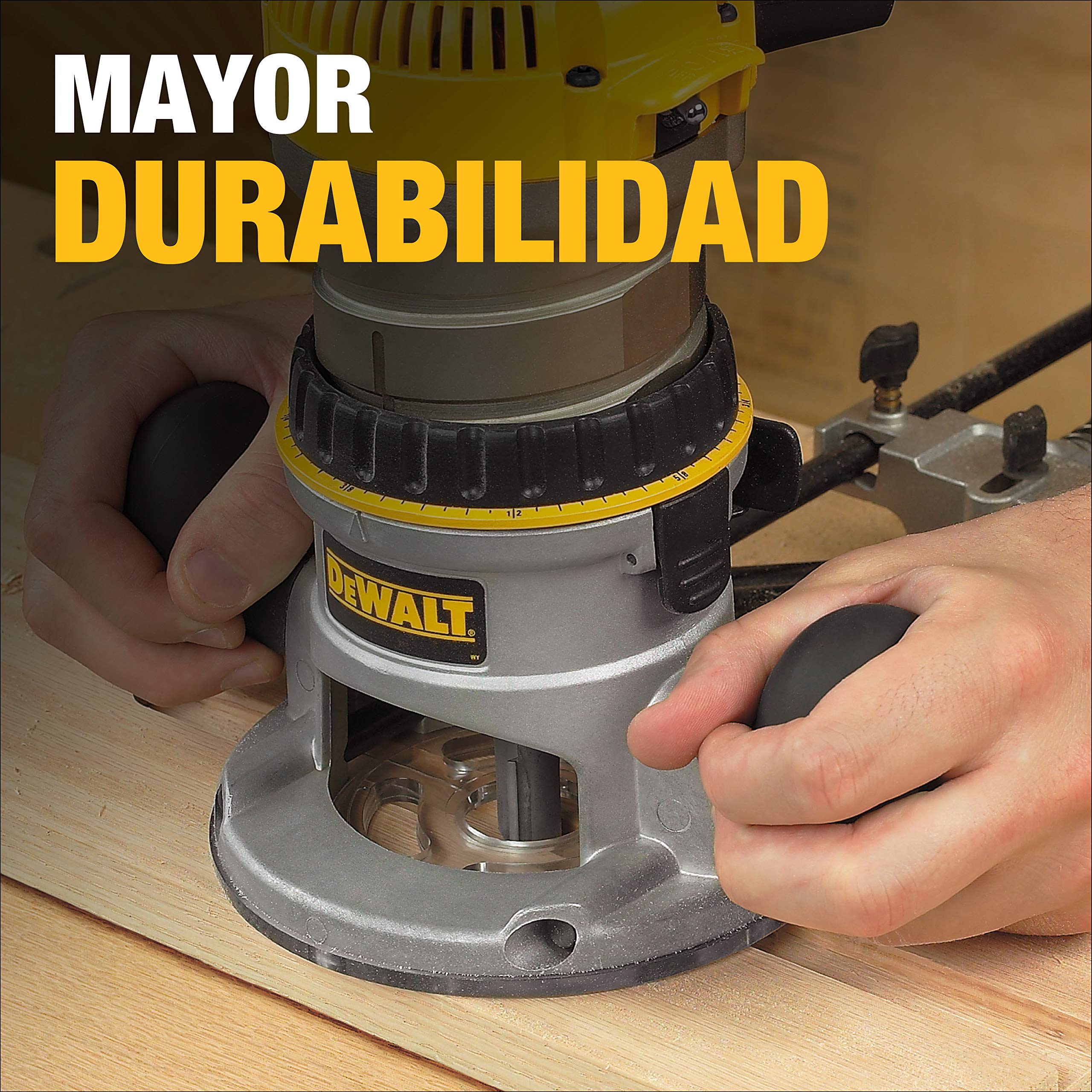

As a fixed-base router, the DW616 is ideal for edge work and shaping. It also mounts easily into a router table when you need repeated cuts or larger bit work. The 11-amp motor delivers consistent power, and the ergonomic base design gives you a comfortable grip for detailed routing.
Whether you're building furniture, trimming laminate, or adding decorative profiles, the DW616 gives you the reliability and precision that DEWALT routers are known for.

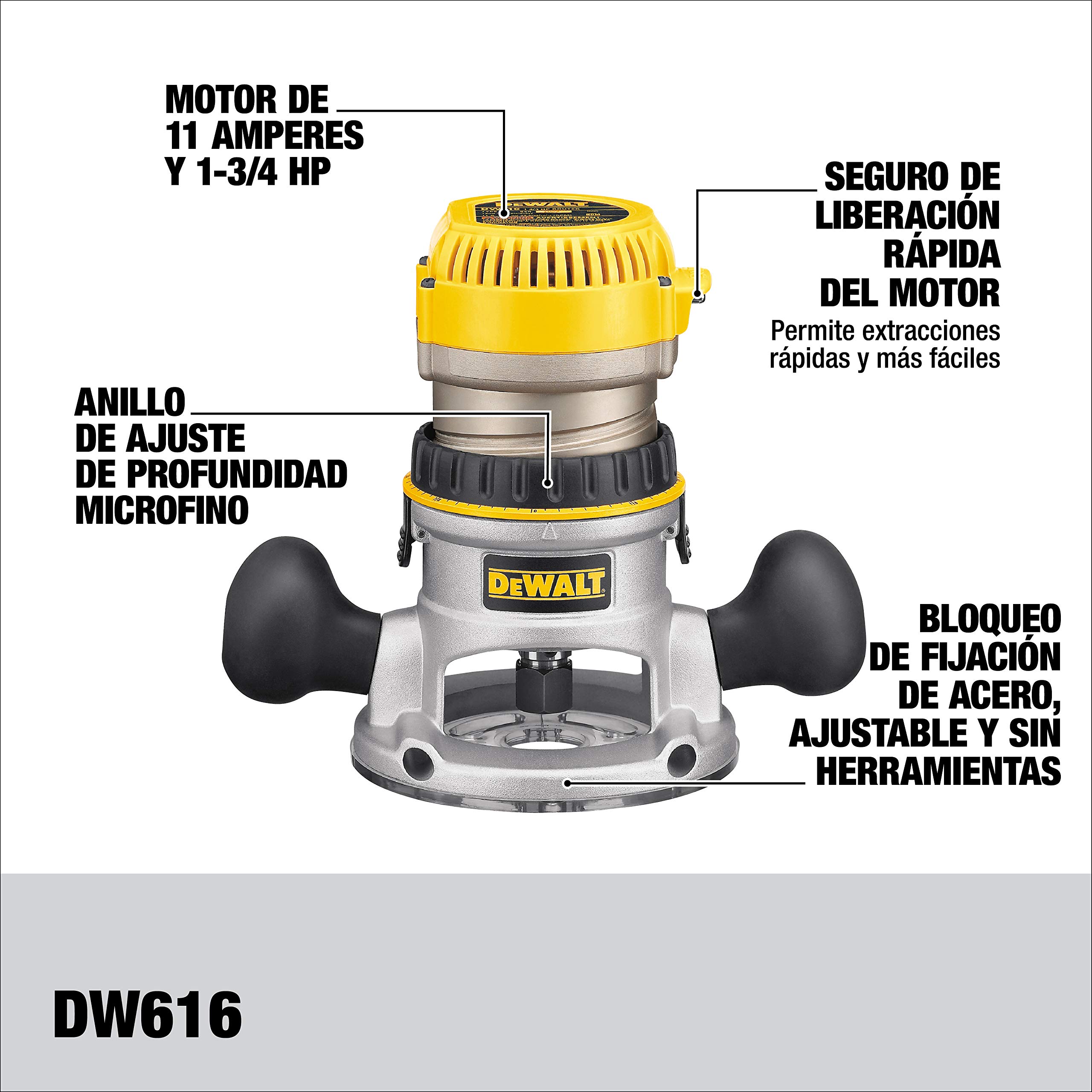

1-3/4 HP, 11-amp motor powers through hardwoods without bogging down.
Micro-fine depth adjustment ring controls depth in 1/64-inch increments.
Tool-free steel motor cam lock makes depth changes fast and secure.
Quick-release motor latches simplify bit and base changes.

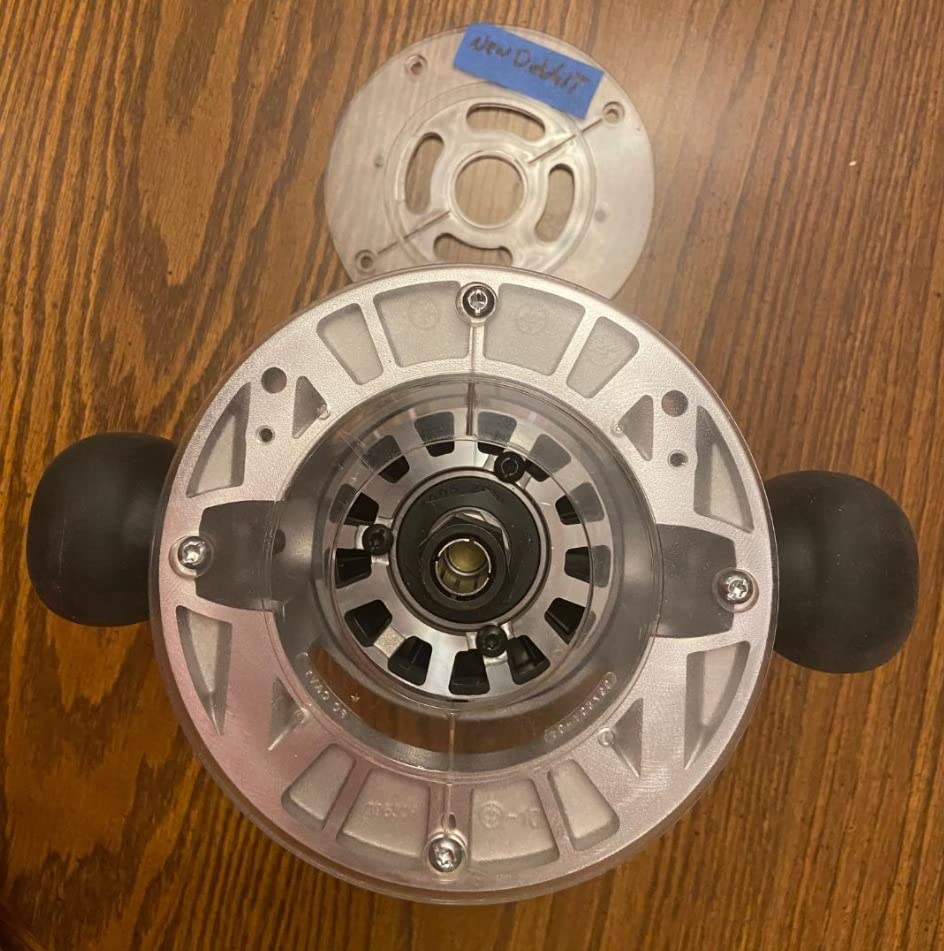

Sub-base concentricity gauge ensures accuracy for precision work.
Model: DW616
Weight: 8 lb / 3.63 kg
Amperage: 11 Amp
Warranty: 3-year limited

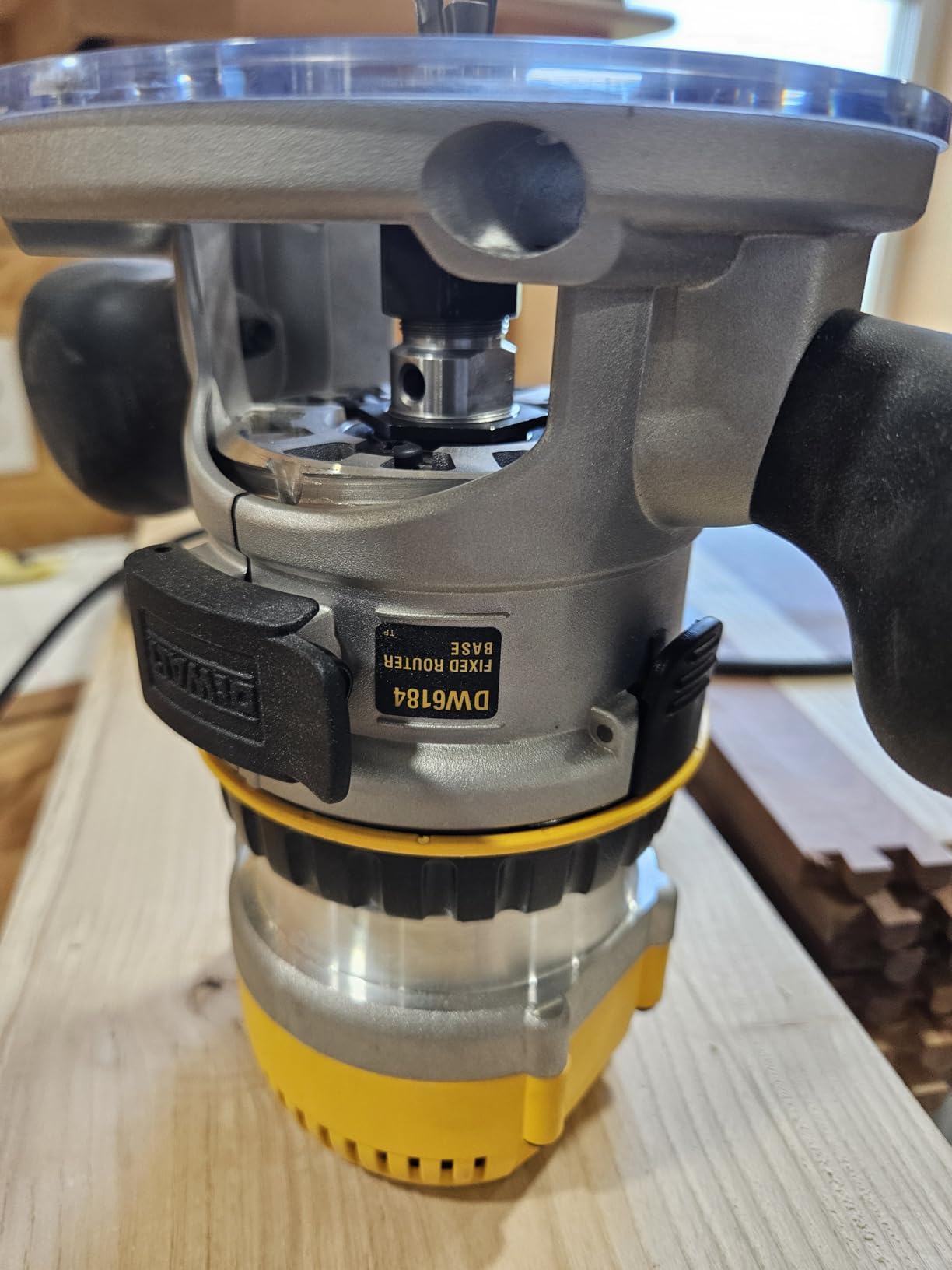

Base Type: Fixed
Dimensions: 12 x 8 x 11 in / 30.5 x 20.3 x 27.9 cm
Horsepower: 1-3/4 HP

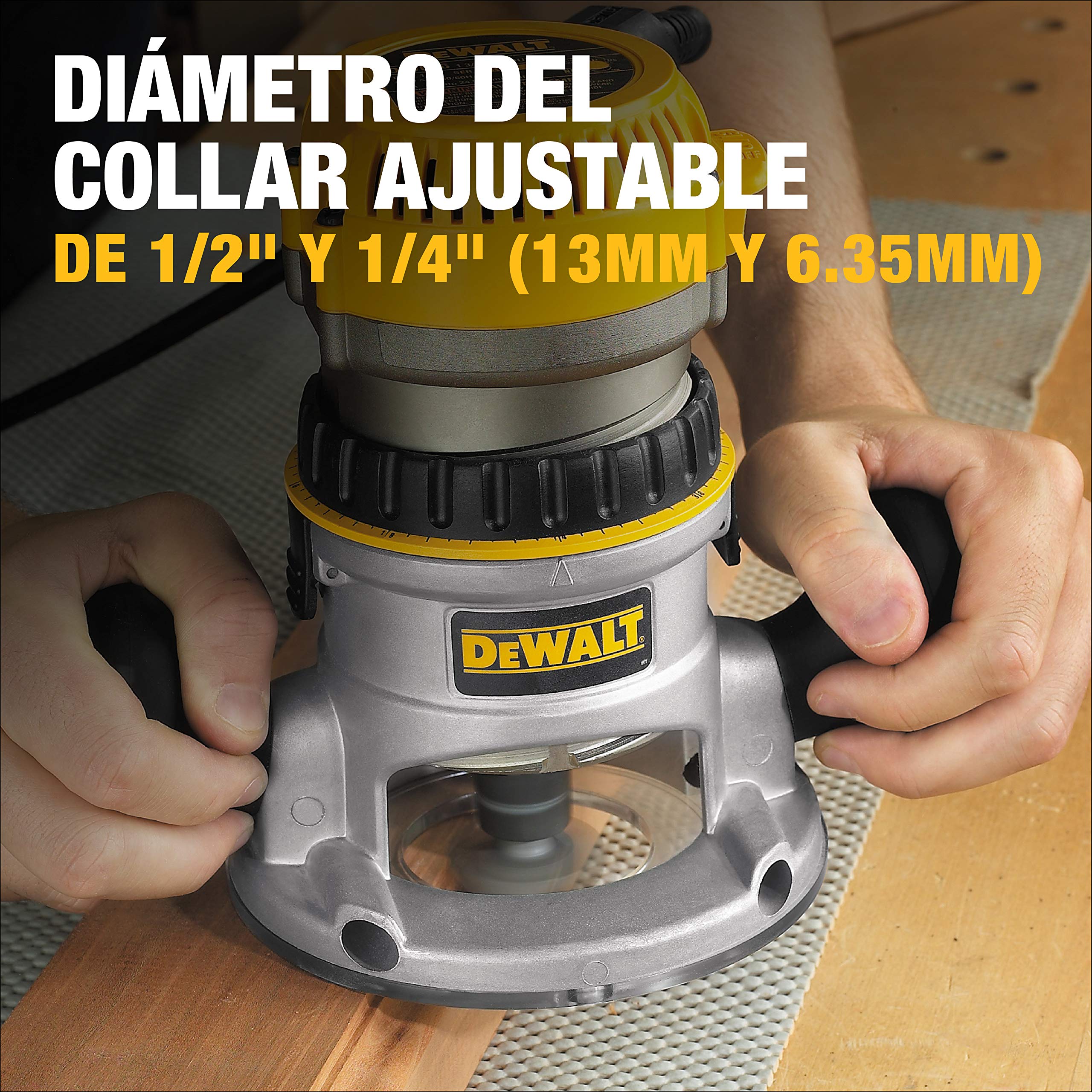

Collet Sizes: 1/4-inch and 1/2-inch
Product Type: Fixed-Base Router
Motor Latches: Quick-release
Motor Cam Lock: Tool-free steel
Depth Adjustment: 1/64-inch micro-fine ring
Seller: Workbench World
MPN: DW616
A fixed-base router is ideal for edge profiling, trimming, and work where the bit depth stays constant. The DW616's fixed base is lighter and more compact than most plunge models, giving you better visibility and control. If you also need plunge work, consider adding a DWP611 or a plunge base attachment.
The micro-fine ring gives you repeatable, accurate depth settings without guesswork. Use the included sub-base concentricity gauge to verify your bit is centered—crucial for clean, even cuts.
Match the collet to your bit shank, and make sure the bit is rated for the router's maximum RPM. For straight cuts, use a straight bit; for decorative edges, a round-over or chamfer bit gives quick results. Always use a bit with the appropriate bearing for pattern work.

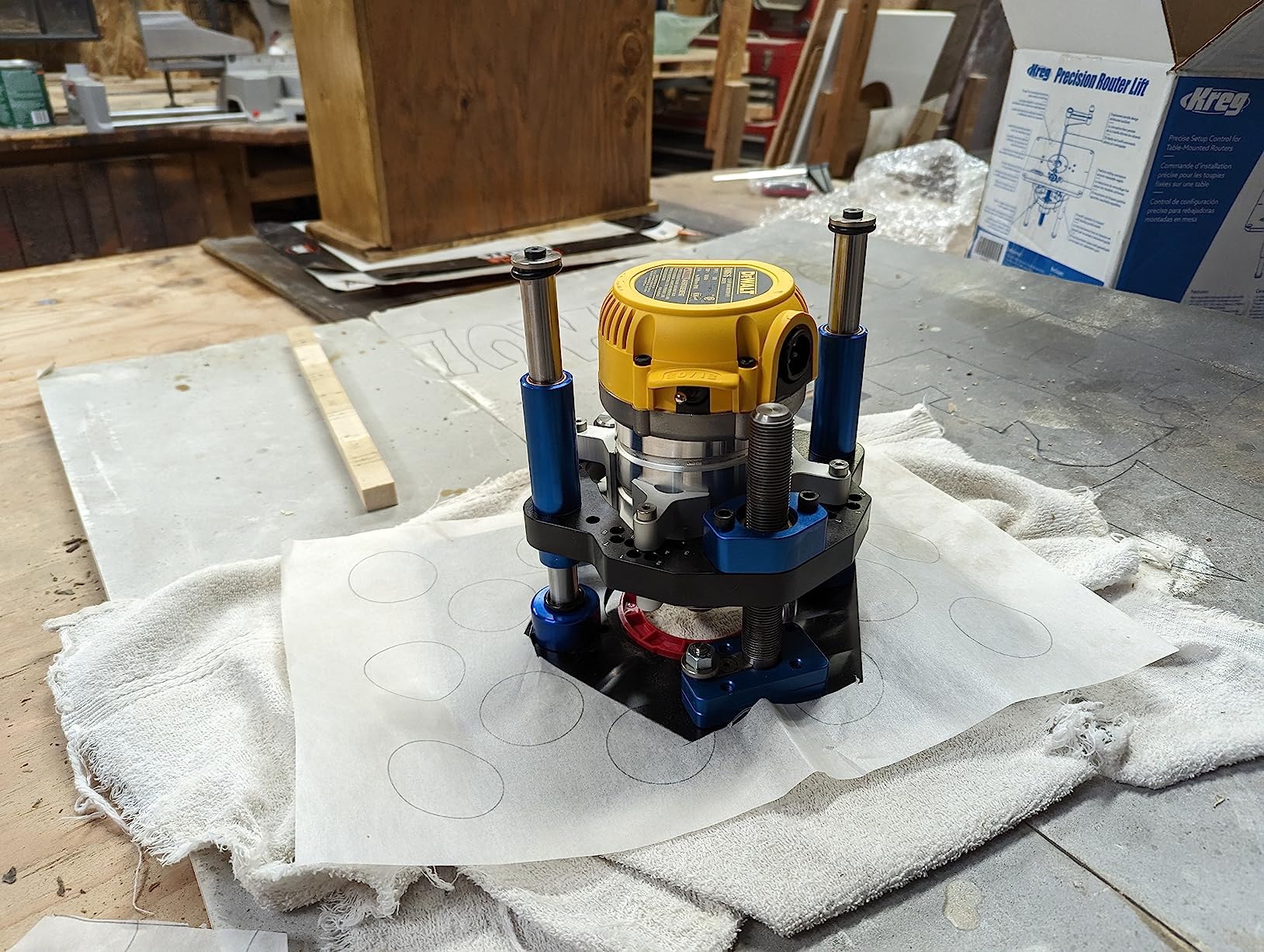

Yes, the fixed base easily mounts into most standard router tables, allowing you to use larger bits and make repeatable cuts safely.

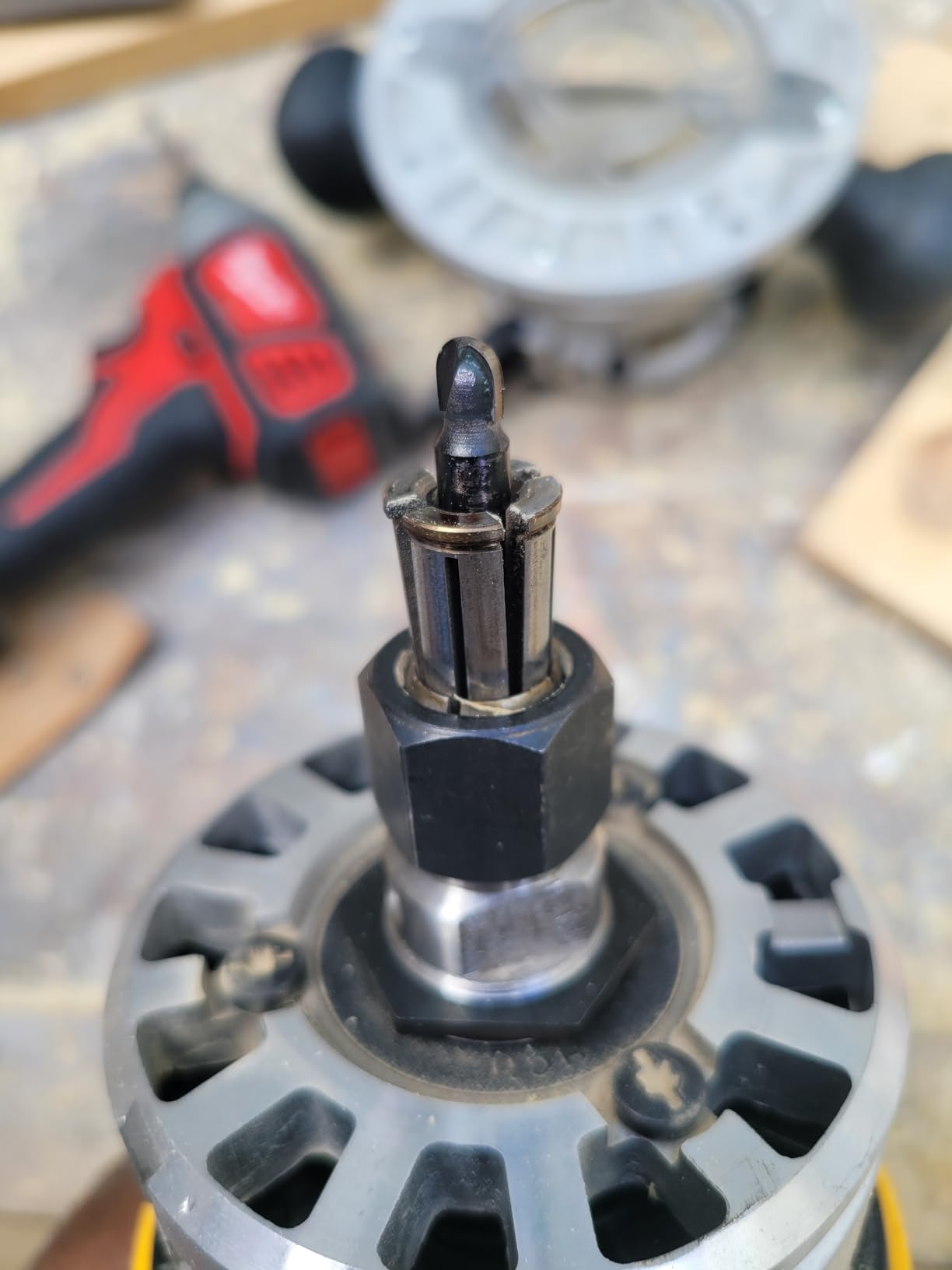

The DW616 accepts both 1/4-inch and 1/2-inch shank router bits, giving you versatility across a wide range of bits.
The micro-fine ring adjusts in 1/64-inch increments, so you can set very accurate cutting depths for fine woodworking.
Yes. The DW616 is easy to set up and provides excellent control, making it a great choice for DIYers and pros alike.
Very smooth.
This router has no problem with hardwood. The depth adjustment is super fine. It's a joy to use.
I've used routers for decades, and this one is top-notch. The motor is strong and runs quietly. The micro-fine depth adjuster lets me set exact depths. The fixed base is solid and doesn't wander. The collet is easy to change. It's a bit heavy, but that adds stability. I'd recommend it to anyone serious about woodworking.
Works great.
It's easy to control. The depth stops are accurate. I'm pleased.
I bought this to do edge routing on table tops. It handles the task easily. The motor doesn't bog down, even in oak. The micro-fine adjustment is spot on. The base is wide and stable. The included wrench is handy. It's a good value.
Cuts clean.
I use it on job sites. It's durable and accurate. Would buy again.
I restored a set of antique chairs and used this router to replicate the original profiles. The depth adjustment is absolutely precise. The motor has plenty of power. The tool is comfortable to handle. The only issue is that the wrench is a bit awkward, but that's minor. I'm extremely satisfied.
Solid and strong.
