RIDGID 16728 compact remote transmitter sends a 512 Hz signal over 25 ft in air so you can locate underground pipes, conduits, and blockages with a compatible NaviTrack receiver.
Pair withRIDGID 16958 ProPress Jaw – 1/2-Inch Copper Compact Series$72.40
Categories : Tools & Hardware
SKU : WOR-TOO-680
Share This:

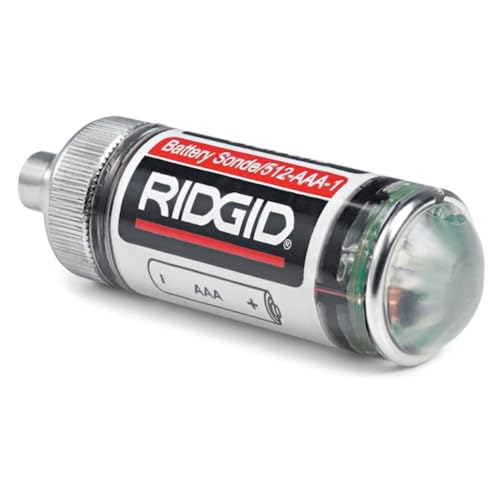

The RIDGID 16728 Compact Remote Transmitter is a 512 Hz battery sonde designed for use with RIDGID NaviTrack locators and other compatible receivers. It installs at the end of a fiberglass push cable, duct rod, or sewer cable, letting you pinpoint the location of a line or blockage without excavation. The compact design fits inside small-diameter pipes, and the strong 512 Hz signal is detectable through cast iron and other materials.
With a typical maximum detection range of 25 feet in air and 15 feet in cast iron, this sonde gives you the confidence to trace underground utilities accurately. It operates for up to 4 hours on a single AAA alkaline battery, minimizing interruptions during your job.
To turn the transmitter on, tighten the battery cover clockwise until it is snug; this connects the battery and starts the 512 Hz transmission. The flashing LED confirms it's active. To turn it off, loosen the cover slightly. To replace the battery, remove the battery cover, swap in a fresh AAA alkaline battery, and reinstall the cover. Always check the LED after a battery change to ensure the sonde is transmitting.
For the full RIDGID 16728 manual, refer to the documentation included with the transmitter or contact RIDGID customer support.
Compact remote transmitter fits on fiberglass push cables, duct rods, and sewer cables
Strong 512 Hz signal detectable by NaviTrack and compatible locators
25 ft detection range in air, 15 ft in cast iron
Operates up to 4 hours on one AAA alkaline battery
Battery cover twist-to-turn design with flashing LED status indicator
Model: 16728
Battery Life: Up to 4 hours continuous
Battery Type: 1 AAA alkaline
Product Type: Compact Remote Transmitter (Sonde)
Compatibility: NaviTrack receivers and compatible locators
Detection Range: 25 ft in air / 15 ft in cast iron
Signal Frequency: 512 Hz
Seller: Workbench World
MPN: 16728
The RIDGID 16728 transmits a clear 512 Hz signal that helps you trace sewer lines, water lines, conduits, and duct work from above ground. Save time and avoid digging by pinpointing the exact spot before excavation.
No tools are required to swap the AAA battery. The finger-friendly cover twists off easily, and the flashing LED gives you immediate confirmation that the sonde is transmitting.
The compact, water-resistant housing is designed to survive the twists and impacts of cable pushing. It fits through tight bends and small pipe openings, so you can use it on a wide range of inspection and location jobs.
Twist the battery cover counterclockwise and pull it off. Remove the old AAA battery, insert a fresh one, and reinstall the cover by twisting clockwise until snug. The LED should flash to confirm operation.
Tighten the battery cover clockwise until it connects the battery. The LED will begin flashing, indicating the transmitter is active. Loosen the cover slightly to turn it off.
It uses one AAA-sized alkaline battery, available almost anywhere. Lithium AAA batteries can also be used.

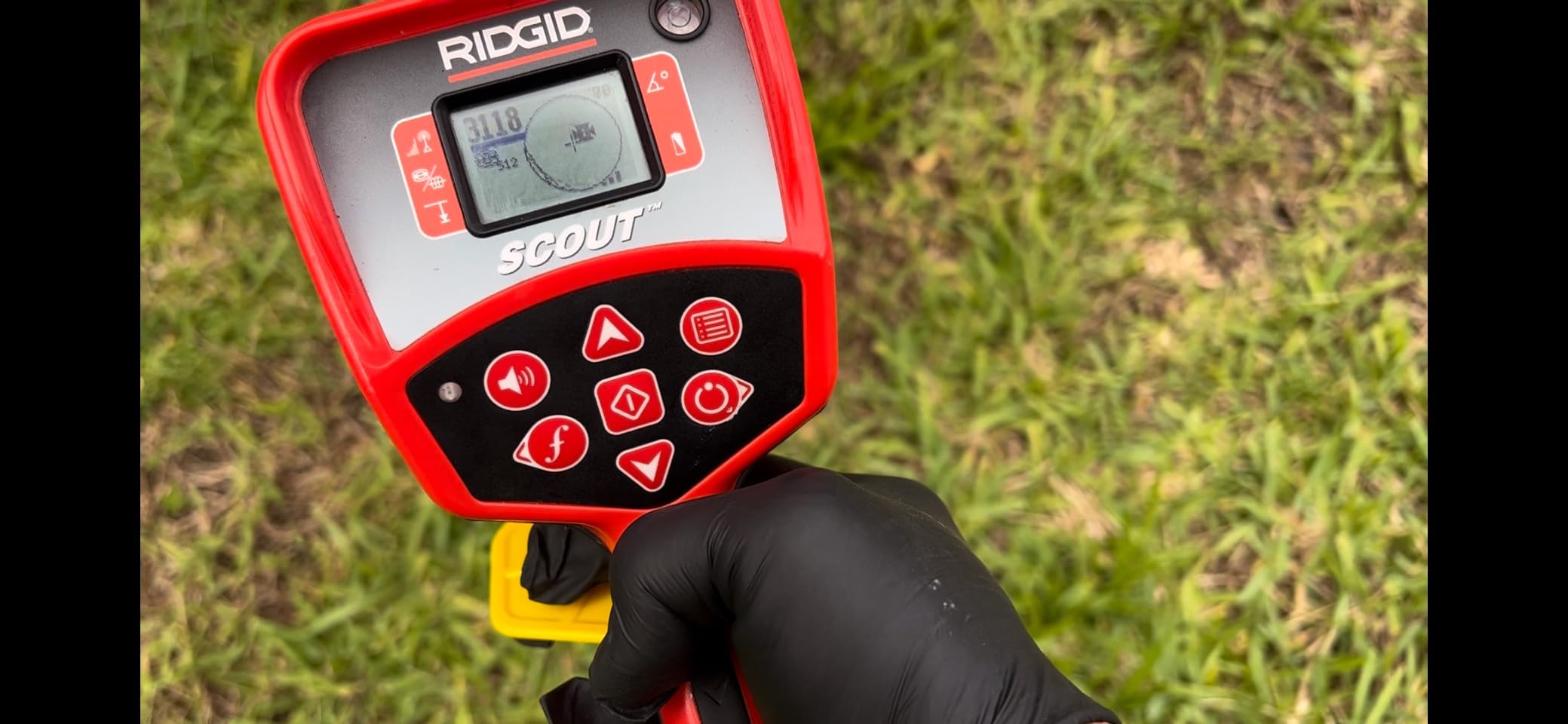

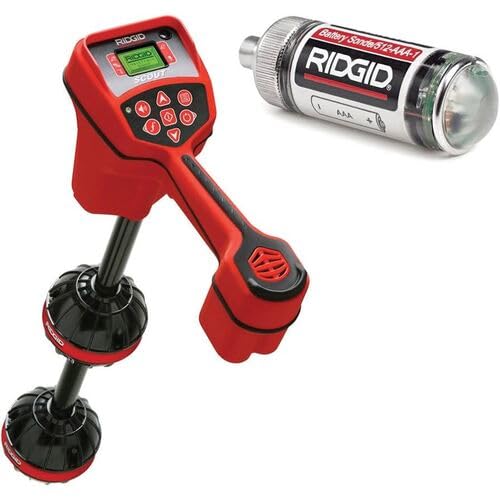

It is designed for use with RIDGID NaviTrack receivers and other compatible 512 Hz locators. Check your locator's specifications for 512 Hz sonde compatibility.
The typical maximum detection range is 25 feet in air and 15 feet in cast iron. Range can vary with ambient noise, soil conditions, and interference.
Picked up signal instantly.
I attached this to a drain camera and it made finding the line easy. The signal was strong.
I use this with a NaviTrack receiver to find underground pipes. It transmits clearly over 20 feet or more. The battery compartment is sturdy. It's compact enough to fit through conduit. I wish it came with a battery, but the spec doesn't claim that. Overall, it works as intended.
This sonde is a lifesaver for locating sewer lines. It's easy to use and accurate.
