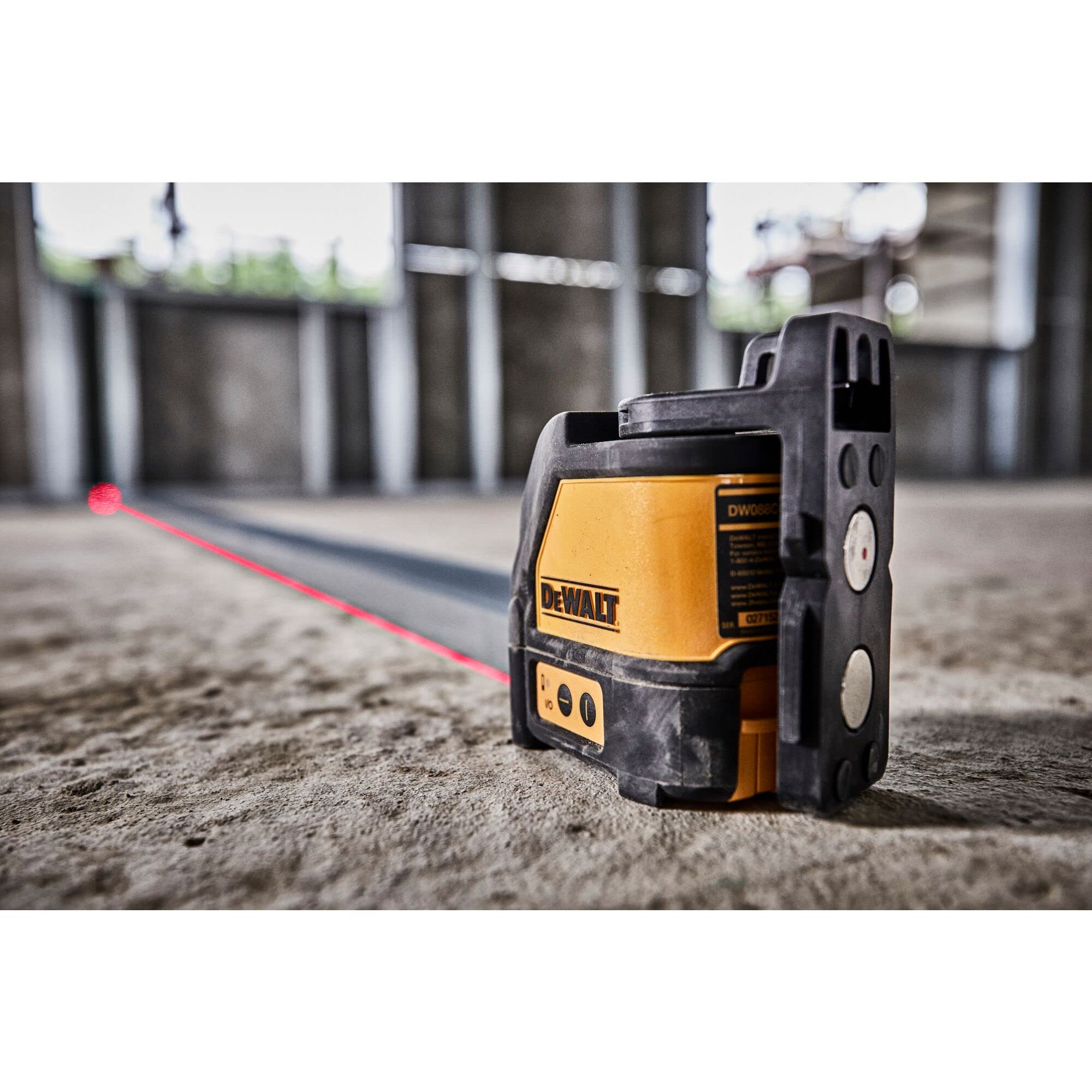

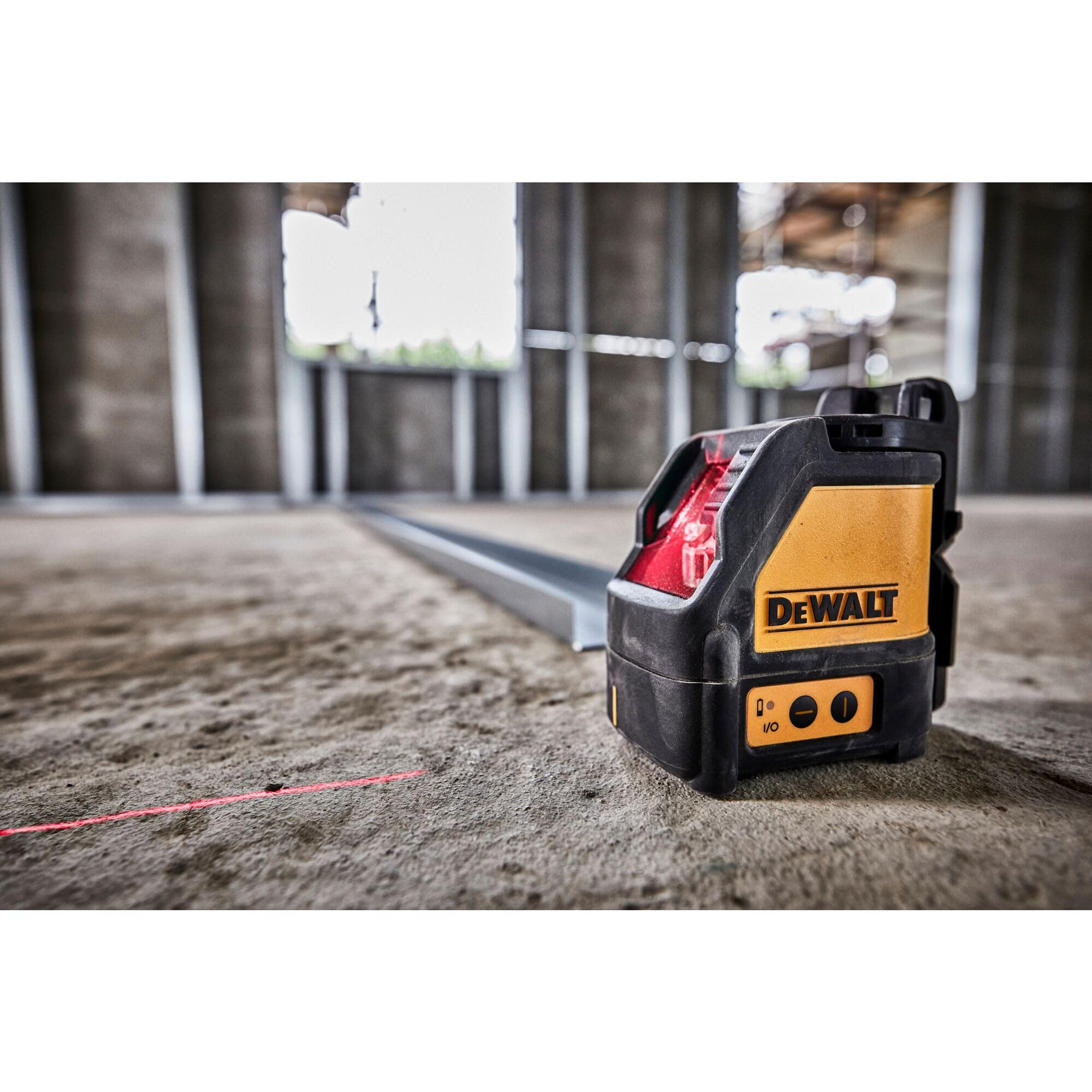

The DEWALT DW088K self-leveling cross-line laser projects bright red horizontal and vertical lines with 1/8-inch accuracy at 30 feet, and up to 165-foot range with a detector.
Pair withDEWALT DW0892G Green Laser Detector – 330 ft Working Range$65.05
Categories : tools
SKU : WOR-TOO-031
Share This:
The DEWALT DW088K Self-Leveling Cross Line Laser is a dependable layout tool for a wide range of leveling and alignment tasks. It uses bright red beams to project cross lines on walls, floors, and ceilings, making it easy to align cabinets, tile, shelves, or framing. Its self-leveling feature ensures the lines are true, and the over-molded housing is built to handle a 1-meter drop—so it can take the bumps of a real job site.
When you need longer range, add a DEWALT laser detector (sold separately) to extend the working range up to 165 feet. The magnetic mount lets you attach the laser to steel studs or beams, and the 1/4-inch thread mount gives you the option to use a tripod for room layouts.
Accuracy is rated at ±1/8 inch at 30 feet—plenty for most construction and remodeling tasks. If you ever need to check or adjust the accuracy, you can perform a simple bounce test against a reference surface with a measuring tape. The unit features a built-in pendulum that must be unlocked during transport and locks automatically when the laser is switched off.

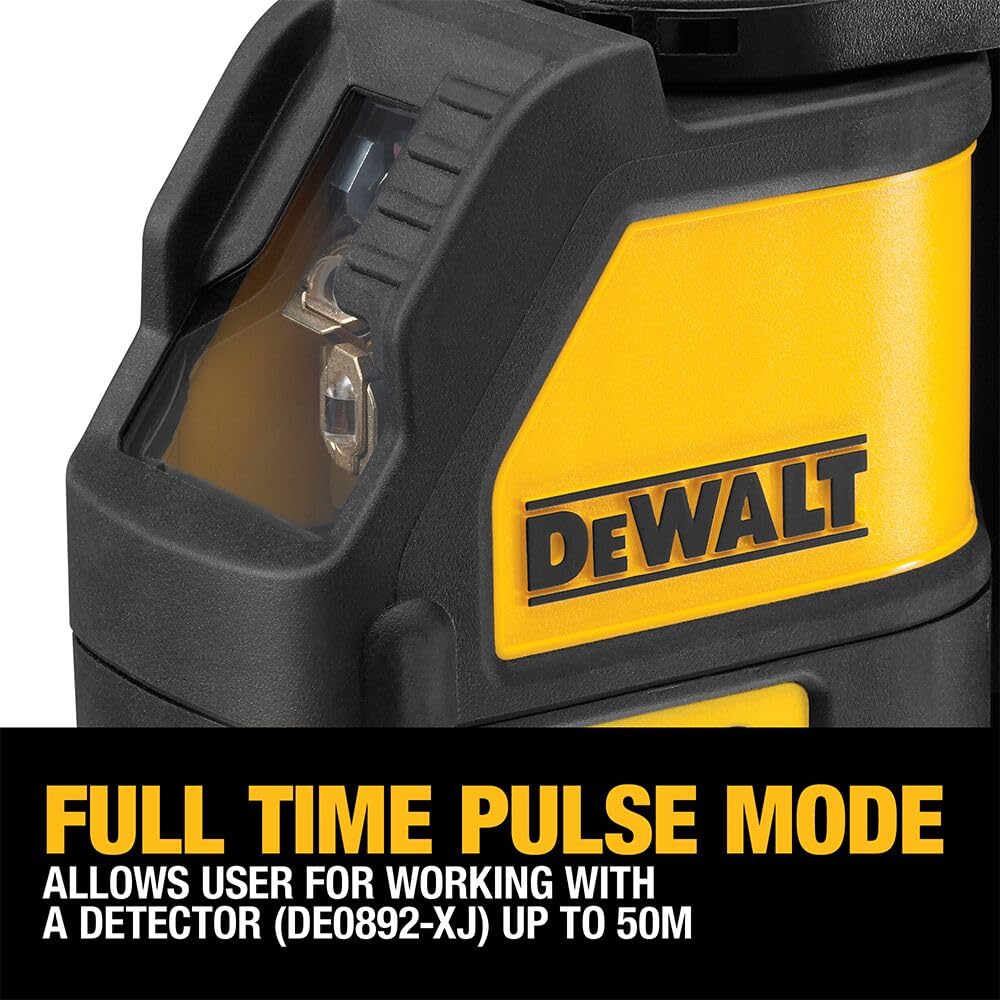

Outdoors or in bright light, the red beam can be hard to see. Mount the optional DEWALT detector to the laser to pick up the beam up to 165 feet away. This makes the tool usable for grading and long runs where the naked eye can’t follow the line.

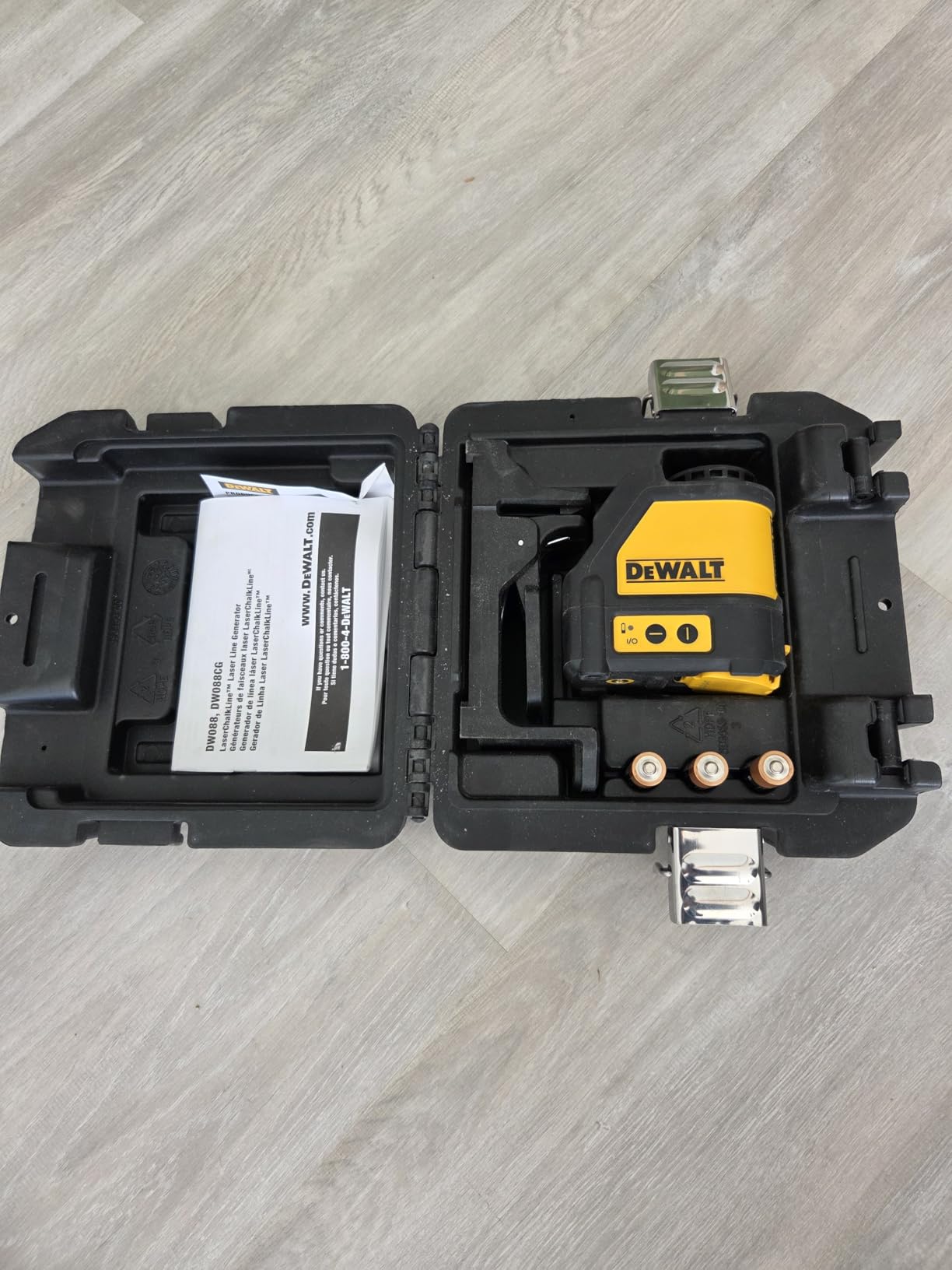

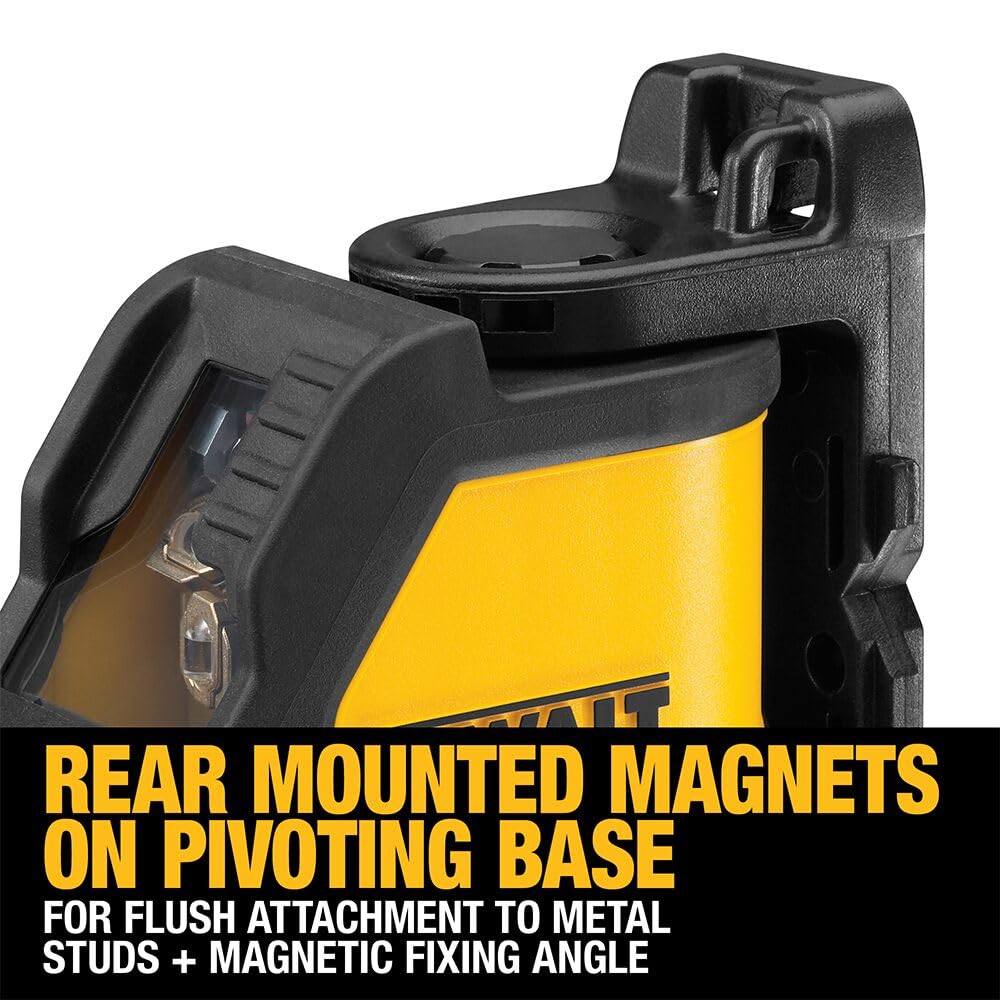

The integrated magnetic bracket swivels and clamps firmly to steel surfaces. For non-metallic surfaces, use the included storage case as a stable base, or attach the 1/4-inch tripod mount to any standard camera tripod. The IP54 rating means it resists water splashes and dust.

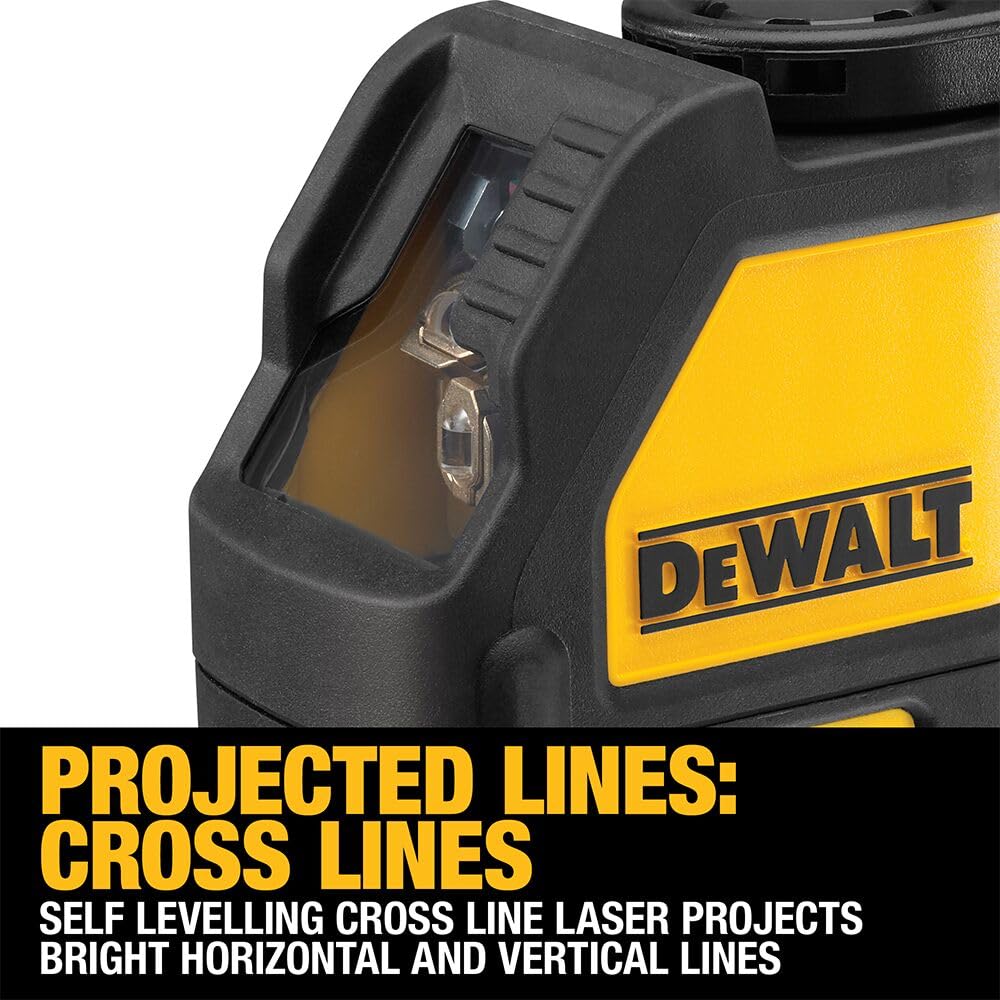

Self-leveling cross-line red beams for fast, accurate layout
Accuracy of ±1/8-inch at 30 feet
Range extends to 165 feet with optional detector
1-meter drop-rated over-molded housing
Magnetic bracket and 1/4-inch tripod mount included
Color: Red
Model: DW088K
Series: Line Laser
Accuracy: ±1/8 inch at 30 feet
Mounting: Magnetic bracket, 1/4-20 thread
IP Rating: IP54
Drop Rating: 1 meter
Laser Class: Class 2, ≤1.3 mW
Power Source: AA batteries (not included)
Product Type: Self-Leveling Cross Line Laser
Range with Detector: 165 feet
Seller: Workbench World
MPN: DW088K
The DW088K is a classic red laser that gets the job done without breaking the bank. Here are a few ways to use it effectively.
For hanging cabinets or installing tile, project a horizontal line at your working height. The self-leveling feature saves you from checking a bubble level for every mark.

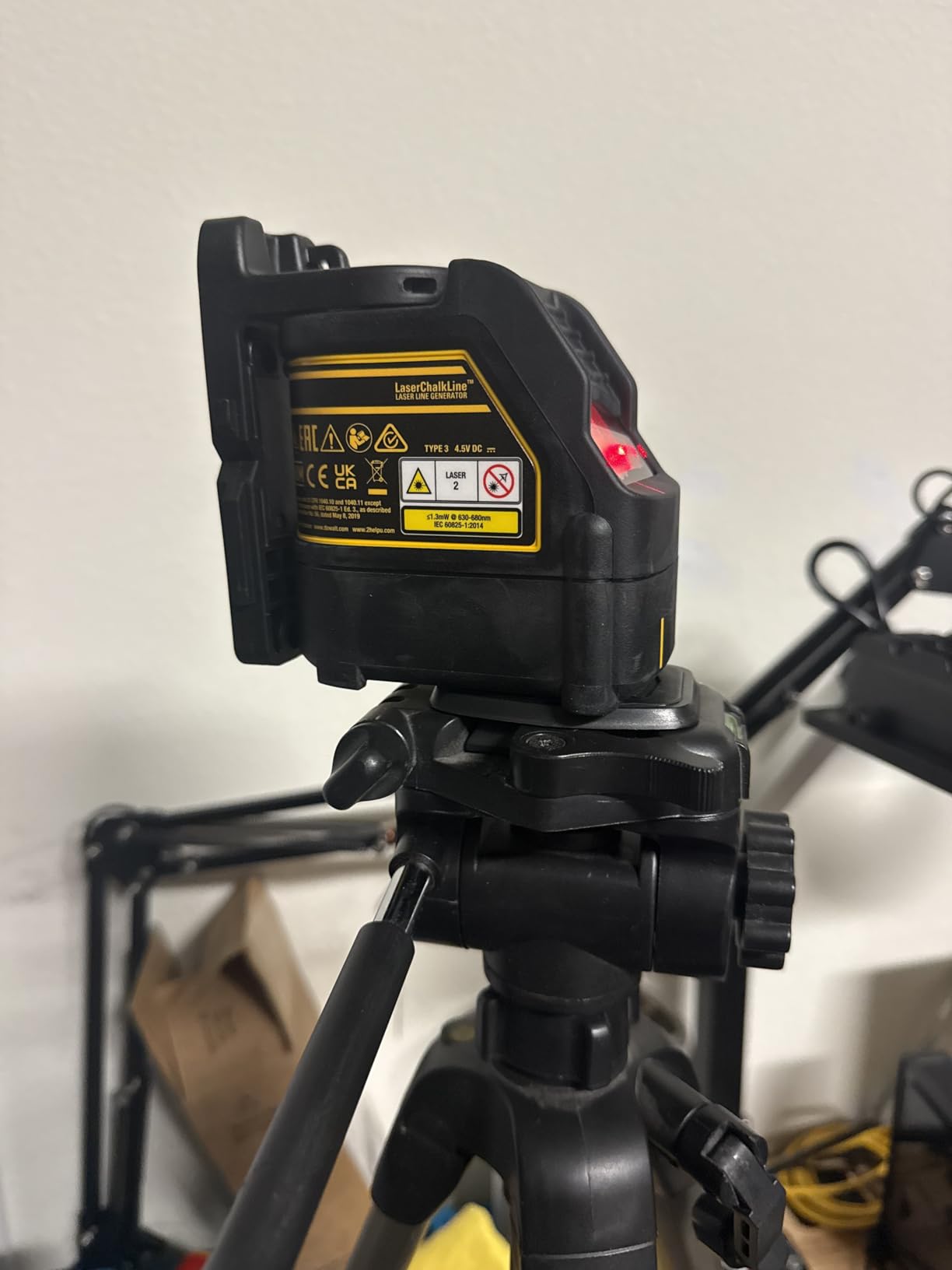

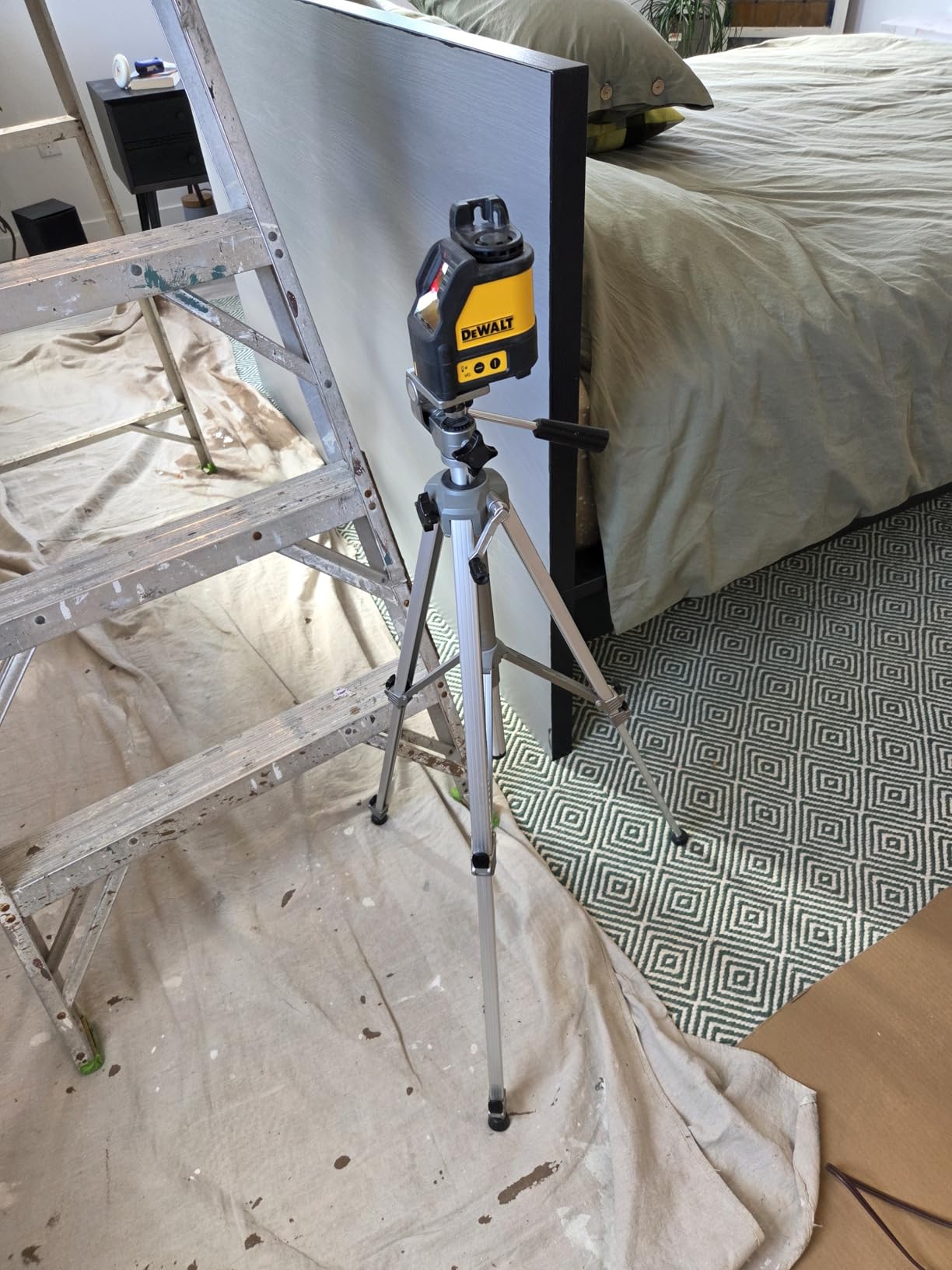

The bracket lets you attach the laser to steel studs, door frames, and drop-ceiling grids. You can also mount it to a tripod for a stable room layout.
Red lasers can wash out in daylight. Use the detector or work in dimmer lighting for longer range. Keep the lens clean to maximize brightness and accuracy.
Set the laser on a level surface and project a line along a wall. Mark the line, rotate the laser 180 degrees and see if the line overlaps the mark. If not, use the adjustment screws on the unit (refer to manual) to fine-tune the pendulum position. If you're unsure, contact our support team.
Yes, the pendulum auto-levels to within ±4 degrees. If it's tilted beyond that, the laser will flash and not project lines until it's leveled again.
You can, but the red beam is much harder to see in sunlight. With the optional detector, the range extends to 165 feet in bright conditions.
The DW088K uses 3 AA batteries, not included. Battery life is typically several hours of continuous use.
Lines are crisp.
Self-leveling works. The lines are bright. It's easy to set up.
I'm a tile setter and this laser is my best friend. The red beam is visible enough indoors. The self-leveling speeds up my layout. It locks safely for transport. The mount feels solid. The detector was a nice addition. I've leveled hundreds of showers with it.
Hard to see in sunlight.

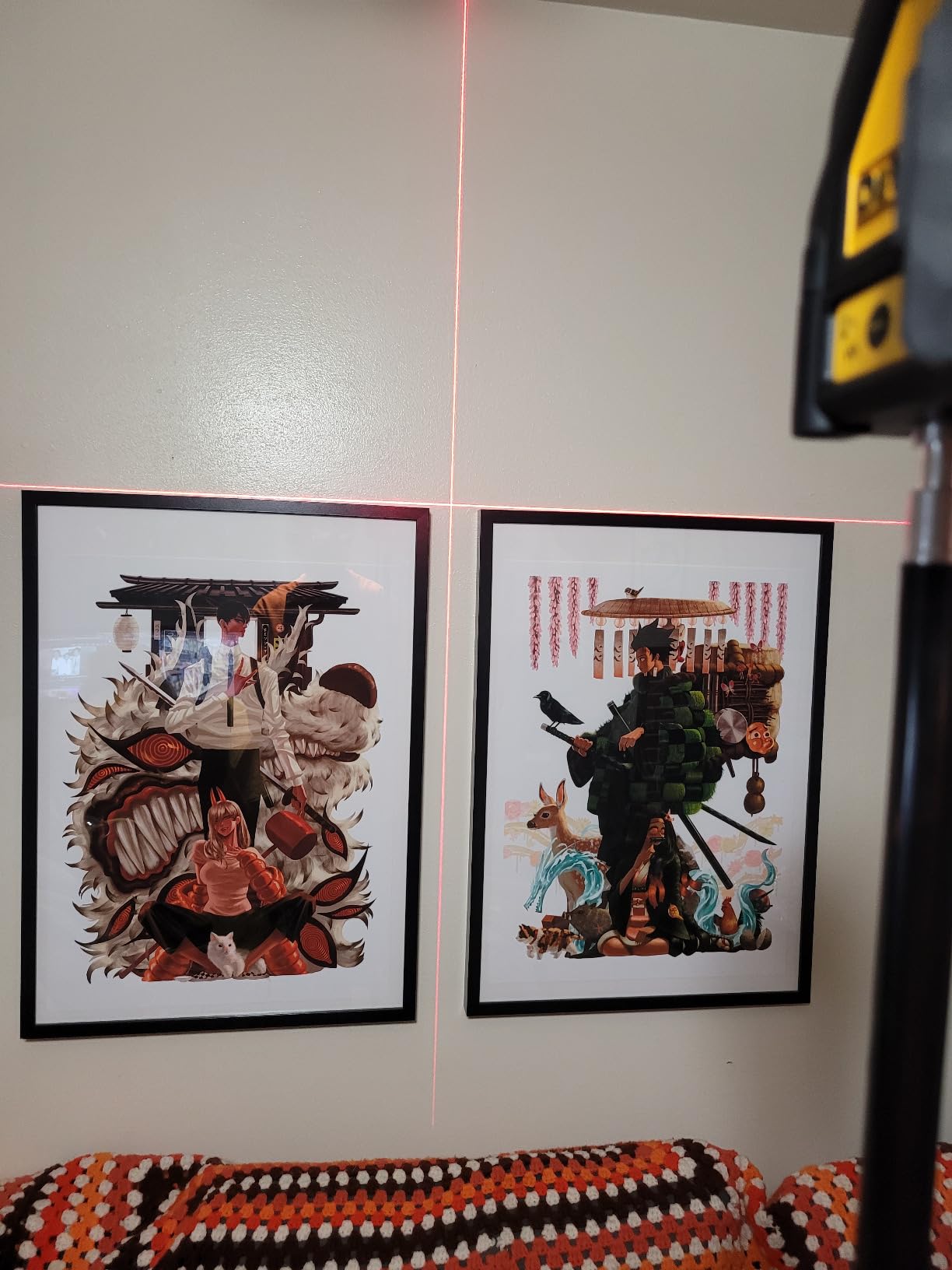

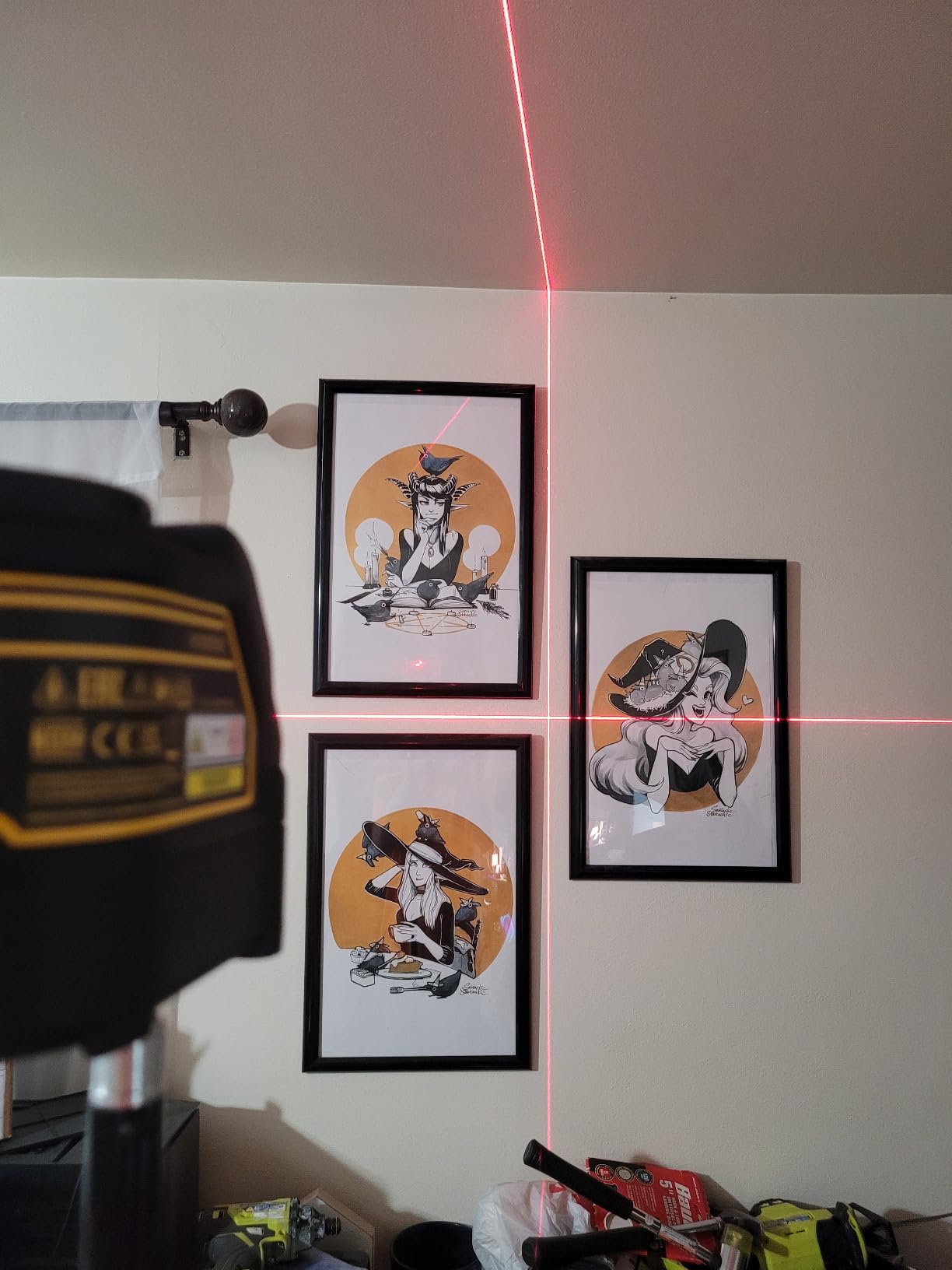

I hang pictures and install shelves. This laser is spot on. The cross lines make alignment easy. It self-levels quickly. The quality is top notch. I use it every day.
It does the job. The tripod is a bit flimsy. But the laser is accurate.
From now on, all my projects start here.
The laser is bright indoors. It's easy to use. The batteries included lasted a long time.
I'm an electrician. I use it to lay out boxes. The lines are exact. It saves me hours. It's worth the money.
Super accurate. The cross line feature is amazing. My husband wants one now.
Works well. The case is cheap. But the laser itself is solid.
I'm a home inspector. This laser helps me document level issues. It's compact. The lines are sharp. It's easy to mount on walls. I've used it hundreds of times. Still works perfectly.
