The DEWALT DW0822LR 12V MAX laser level projects a red cross line plus two plumb spots with ±1/8 in. accuracy, IP65 durability, and a 2-m drop rating.
Pair withDEWALT DW0825LR 12V MAX Red 5 Spot + Cross Line Laser Level$97.49
Categories : tools
SKU : WOR-TOO-861
Share This:
The DEWALT DW0822LR 12V MAX Laser Level combines two spot beams and a cross line in a rugged body built for the jobsite. With a red laser, it provides crisp vertical and horizontal references for leveling, aligning, and layout tasks. Its locking pendulum protects the unit during transit, while the full-time pulse detector extends range outdoors.
This laser is compatible with DEWALT 12V MAX batteries (not included) and offers dual mounting options: a magnetic bracket with pivoting thread mount and standard 1/4-20 and 5/8-11 threads. The raised magnetic front panel lets you mount to steel studs, conduit, or acorn nuts with clearance. With IP65 debris/water resistance and a 2-meter drop rating, it can stand up to the bumps of a job site.
Choose between cross line mode for level and plumb references, or operate spots independently for point transfer. The laser delivers ±1/8 in. accuracy at 30 feet, and with the pulse detector (sold separately), you can use it outdoors at distances up to 165 feet for line work and 100 feet for spots.
The DW0822LR is factory calibrated, but it’s a good practice to verify the laser periodically. To check, place the unit on a level surface, project a horizontal line onto a wall, mark a point, then rotate the laser 180° and compare. If the line shifts by more than the rated accuracy, the unit should be serviced. Always make sure the pendulum is unlocked and the laser is settled before taking a measurement.
2 spot + cross line modes – use vertical and horizontal references or plumb/level points.
±1/8 in. accuracy – trust your layouts for tile, cabinets, and partitions.
IP65 and 2-m drop rating – built to survive tough jobsite conditions.
Magnetic bracket with pivoting mount – attach to steel quickly and adjust without tools.
Model: DW0822LR

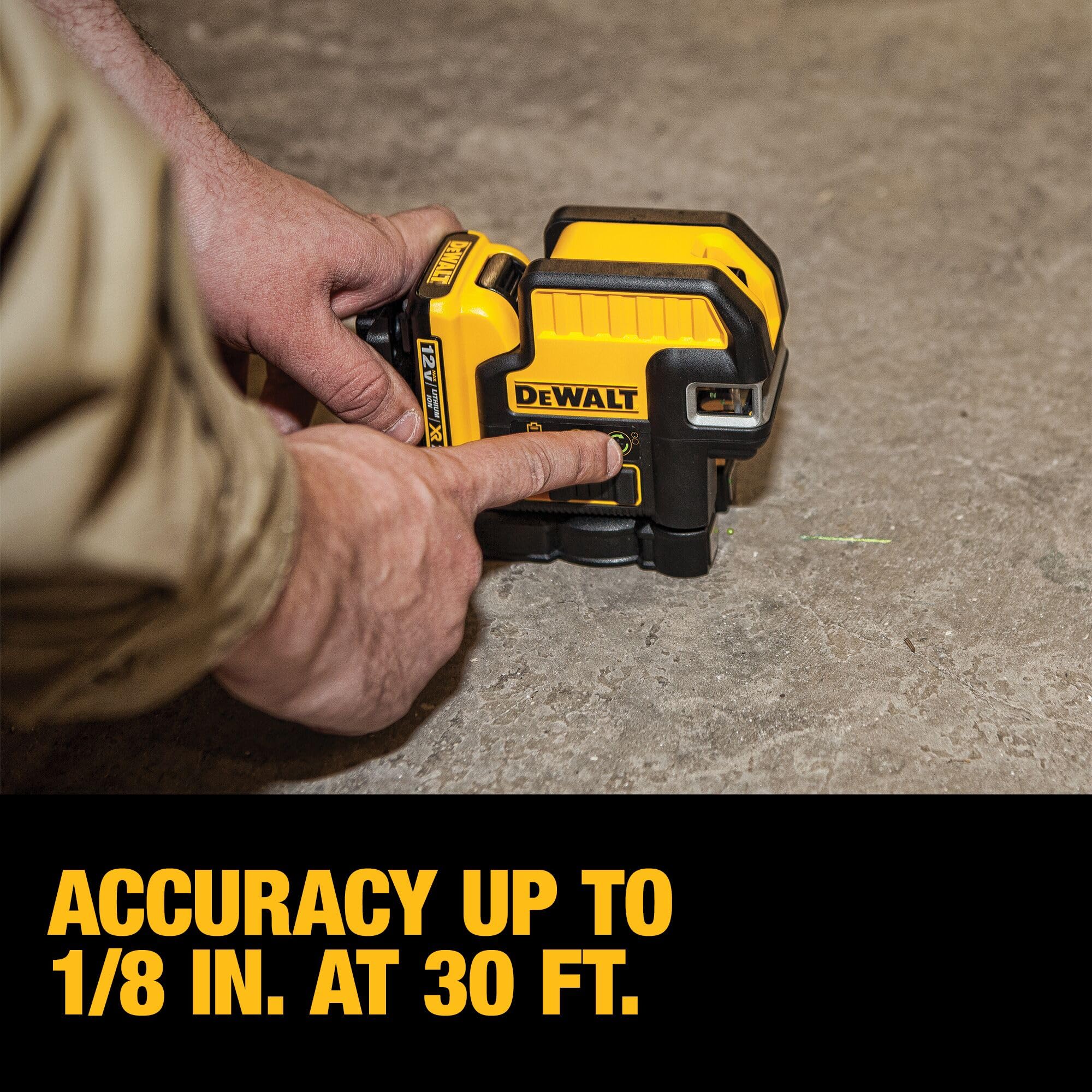

Accuracy: ±1/8 in. @ 30 ft
Mounting: Magnetic bracket, 1/4-20 and 5/8-11 threads

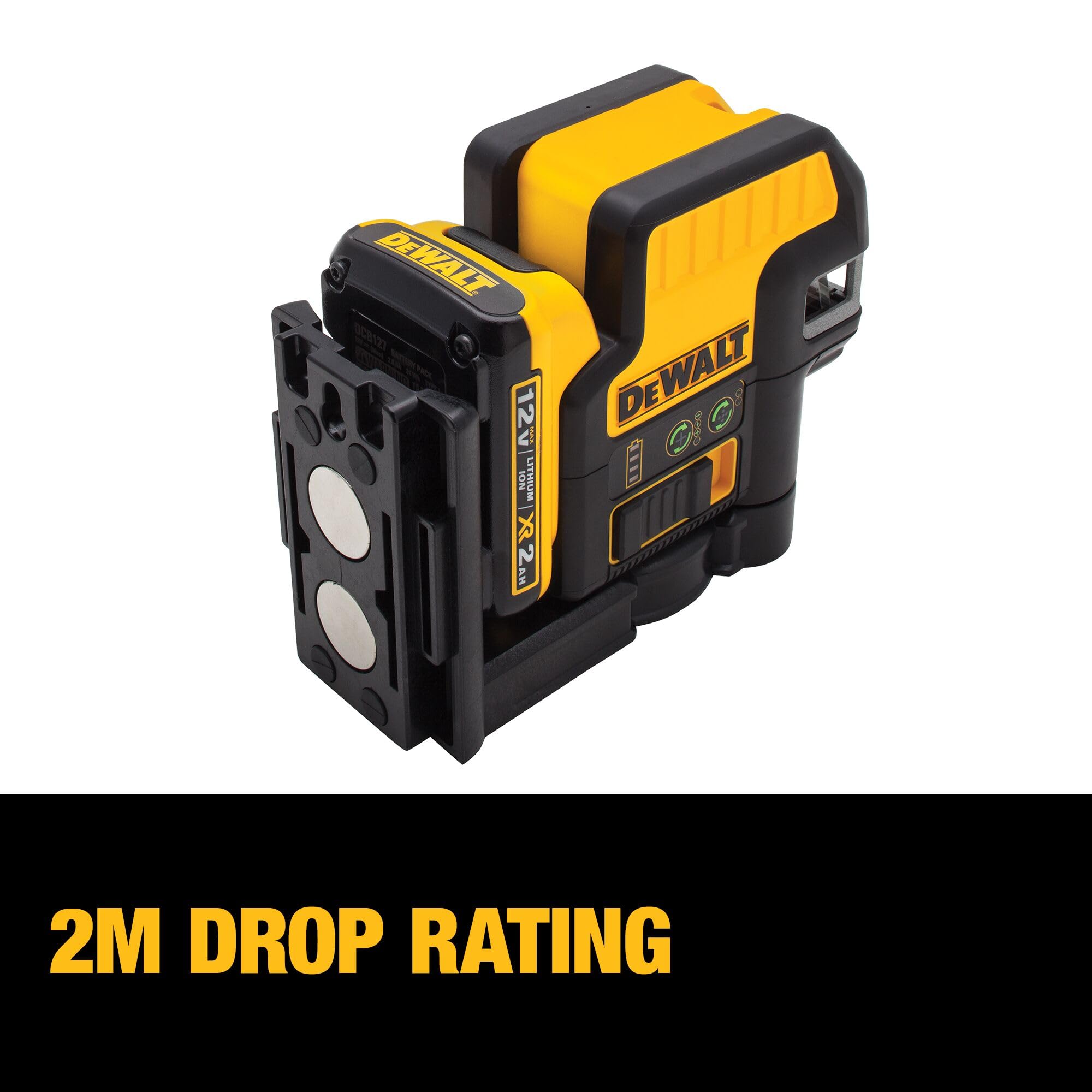

Durability: IP65, 2 m drop
Line Range: Up to 165 ft (with detector)
Spot Range: Up to 100 ft (with detector)
Laser Class: Class 2 (<1.5 mW)
Laser Color: Red
Power Source: 12V MAX battery (sold separately)
Product Type: 12V MAX Red Laser Level (2 spot and cross line)
Number of Lines: 1 horizontal + 1 vertical
Number of Spots: 2 (up/down)
Seller: Workbench World
MPN: DW0822LR
This laser level shines on framing, finish, and electrical projects. Use the cross line for horizontal and vertical references; use the spot beams for accurate point transfer.
The magnetic bracket includes a pivoting thread mount that fits both 1/4-20 and 5/8-11 connections. This lets you use a camera tripod or a DeWalt stand, or snap onto a steel door frame.
Always let the pendulum settle after unlocking. For vertical work, verify the laser against a plumb bob or a known vertical line. If you drop the laser, recheck calibration before critical layouts.
Switch the laser to pulse mode and point a compatible detector at the beam to see the line up to 165 feet away. This is essential for excavating, landscape, and pole setting.
Place the laser on a level surface, project a line, mark a spot on the wall, then rotate the laser 180° and see if the line matches the mark. If it is off by more than 1/8 inch at 30 feet, contact DEWALT for service.
It uses DEWALT 12V MAX lithium-ion batteries (e.g., DCB120). A DCB122 or DCB124 battery pack is required; it doesn't accept AA batteries.
Yes, in pulse mode with a compatible receiver (sold separately), you can see the beam up to 165 ft. The spots have a rated range of 100 ft with a detector.
The up and down spots are ideal for transferring references from floor to ceiling, such as positioning electrical boxes or alarms.
Great little laser.
I've been a contractor for 30 years and this is a reliable little laser. The IP65 rating is nice for dusty sites. It holds calibration well. It's a good addition to my bag.
The laser works well, but the red beam is hard to see in bright rooms. Indoors it's fine. I'd recommend the green version if you work outside.
It makes leveling pictures and shelves a one-person job. The spots are accurate. The magnetic mount is handy.

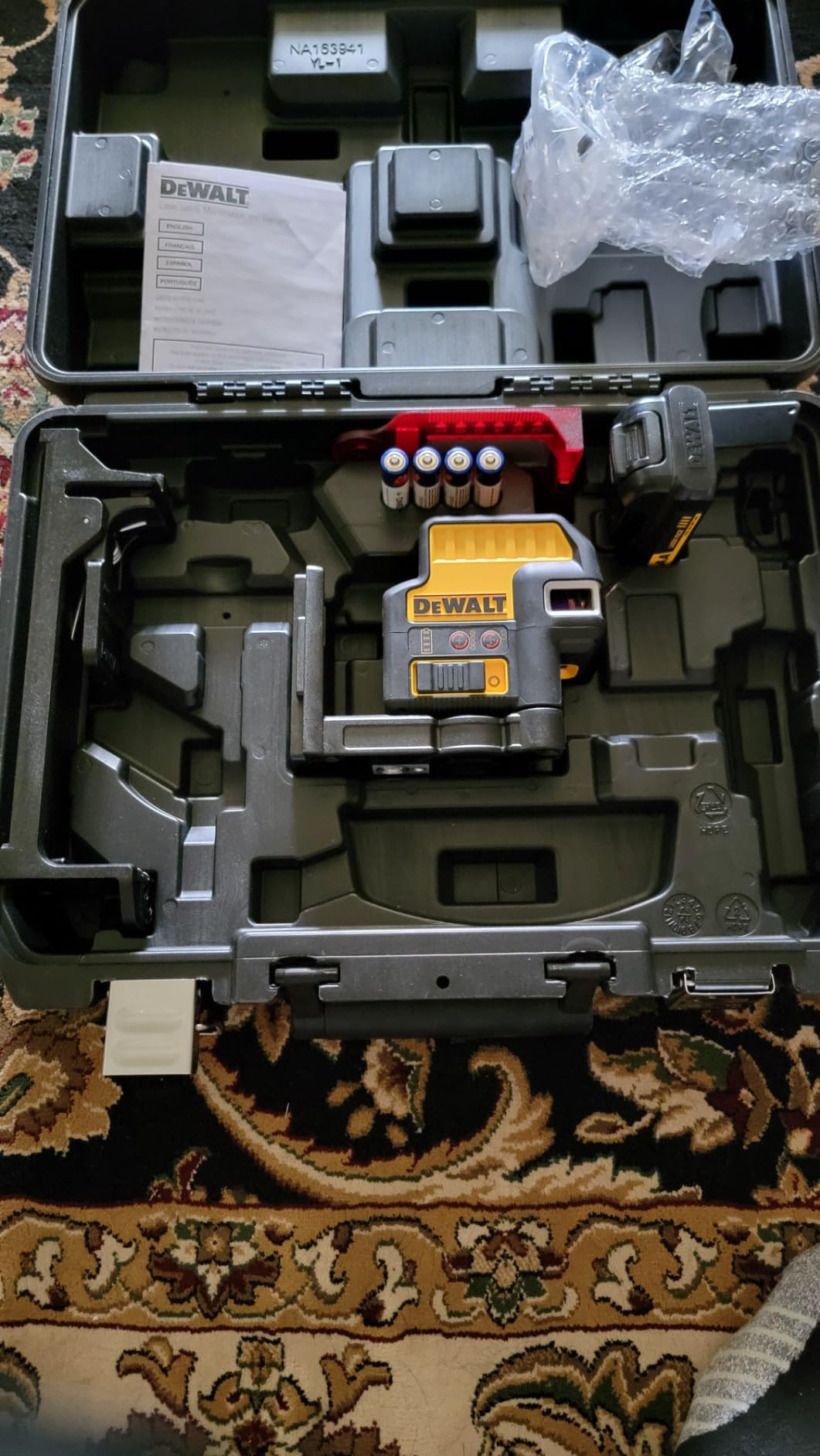

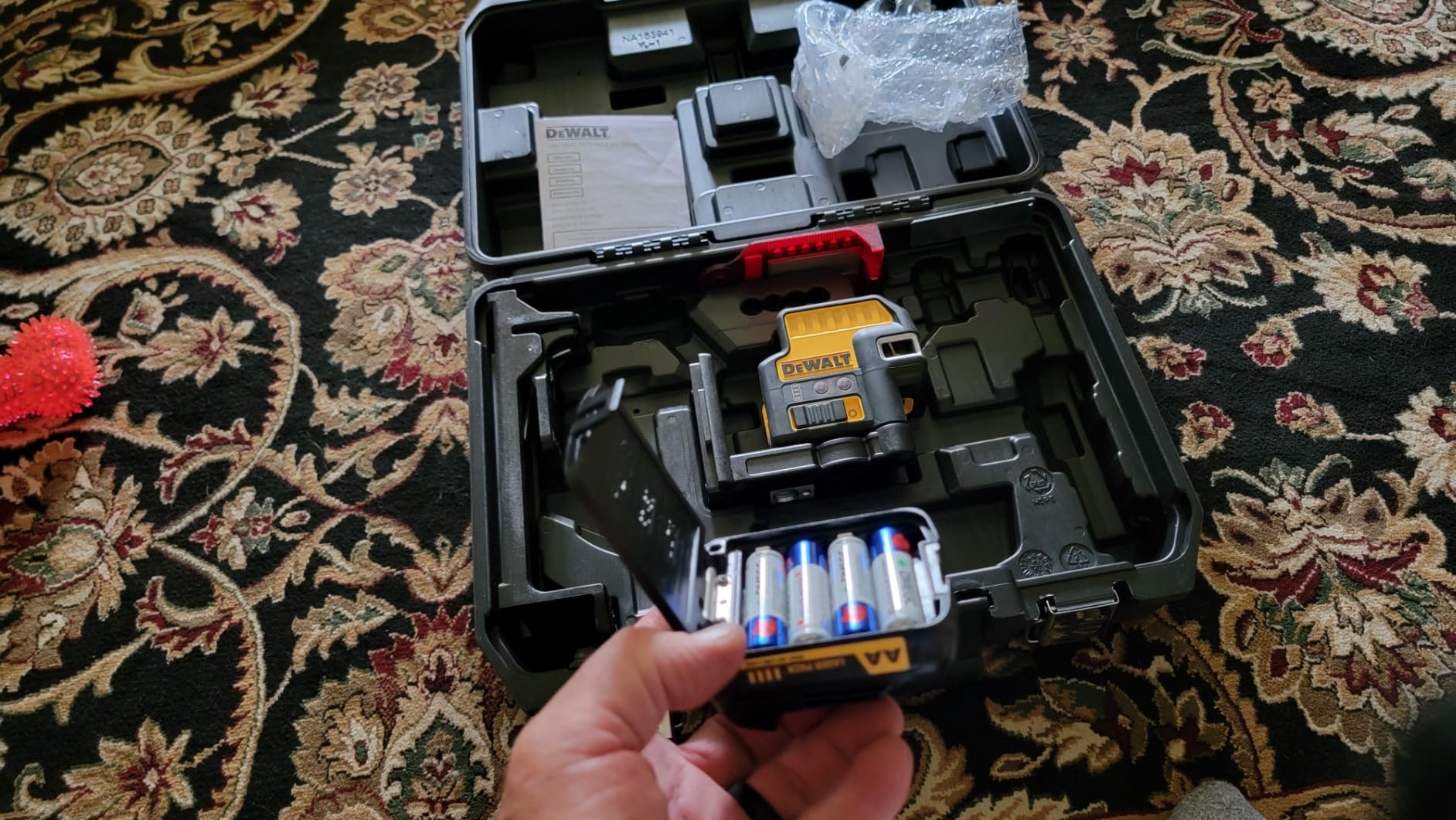

I had an older laser that needed a wall adapter. This one uses batteries and is much more portable. The accuracy is spot on. Would recommend.
